GSP-830 User Manual
94

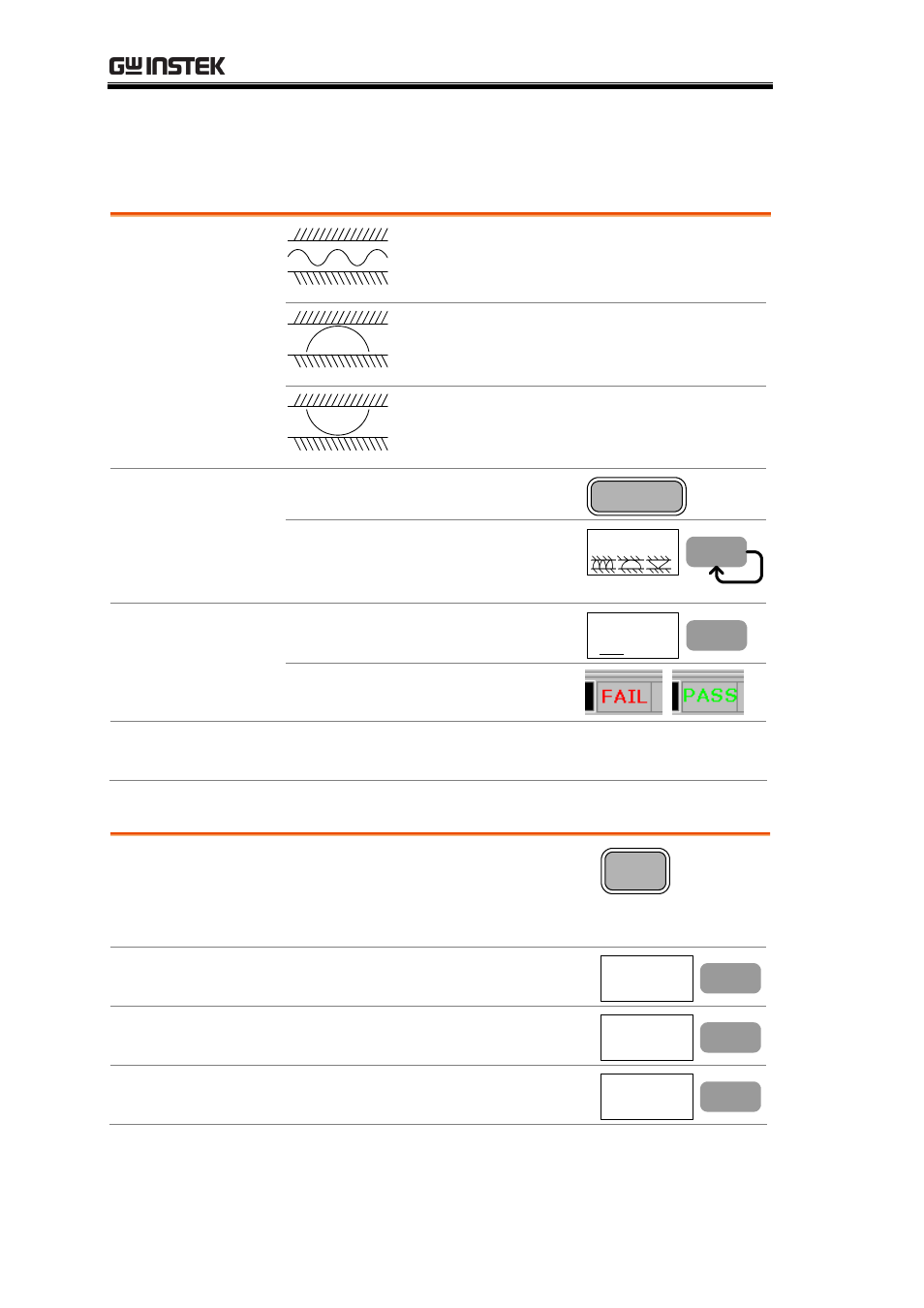

Run Pass/Fail test
This section assumes that the limit line is already defined.
Pass/Fail condition Checks whether the entire waveform
amplitude stays between the high limit
and low limit lines.
Checks whether the peak waveform
amplitude stays between the high and
low limit lines.
Checks whether the waveform valleys
stay between the high and low limit
lines.
1. Select condition 1. Press the Limit Line key.
Limit Line
2. Press F5 (Pass/Fail)
repeatedly to select the
condition.
Pass/Fail
F 5
2. Run Pass/Fail test 1. Press F4 (Pass/Fail On) to
activate the test.
Pass/Fail
On Off
F 4
2. The test result appears at the
bottom of the display.
Note If the limit lines are not defined, the Pass/Fail test uses
the highest or lowest display level as the limit line.
Save/copy/delete/rename limit line file
Background Limit line files can be saved, copied,
deleted, or renamed using the file
utility. Press the File key to access
each function.
File
Save/Copy Press F1 (Copy). For detailed steps,
see page115.
Copy... F 1
Delete Press F2 (Delete). For detailed steps,
see page118.
Delete... F 2
Rename Press F3 (Rename). For detailed
steps, see page120.
Rename... F 3
