DISPLAY

111

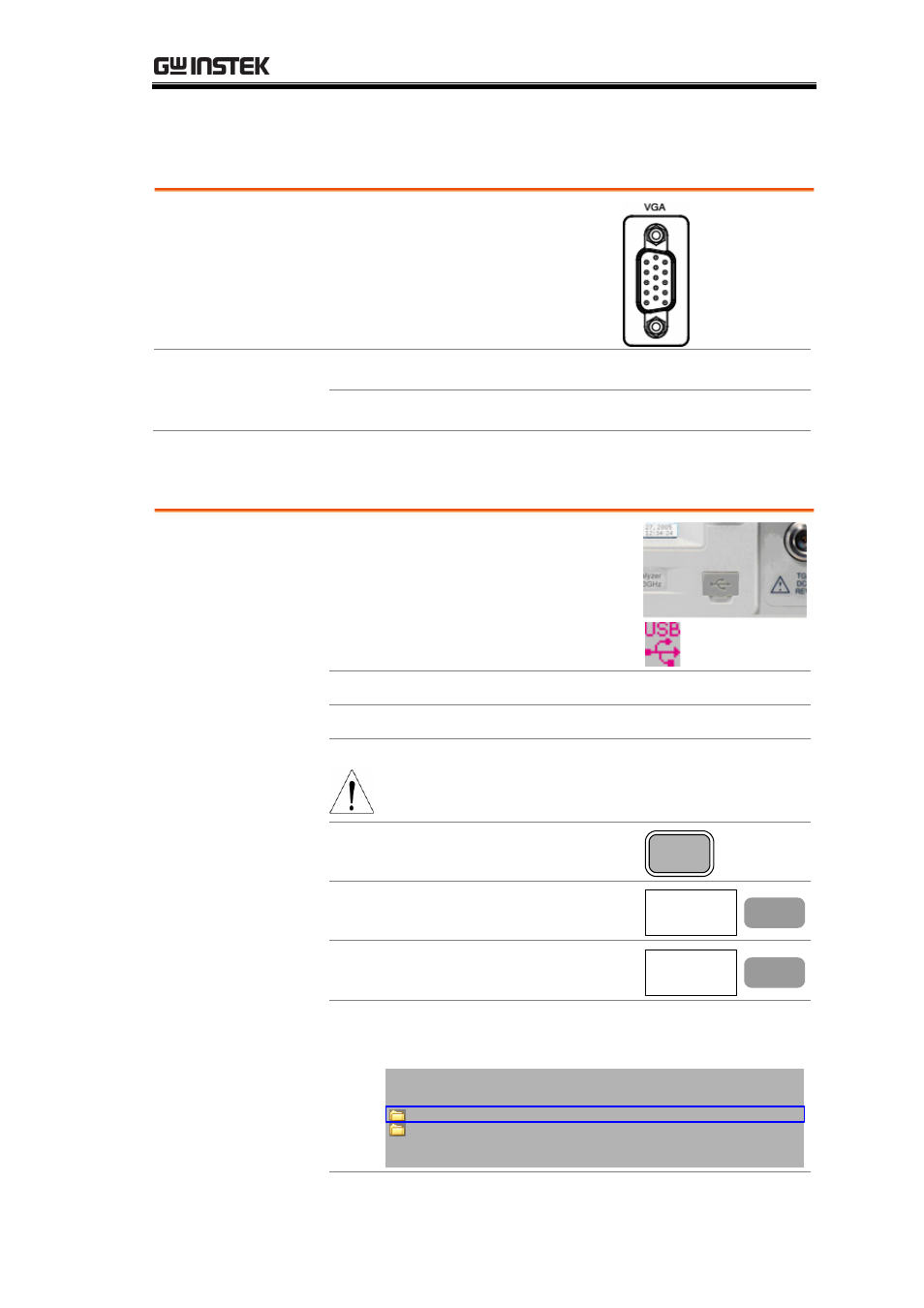

Use VGA Output

Panel operation

Connect an external monitor to
rear panel VGA output terminal.
The display output is always on.

Parameter Connector

type

VGA 15pin, female

Resolution

640 x 480

Save Display Image to USB Flash Drive

Panel operation

1. Connect the USB flash drive to

the front panel USB terminal.
The USB icon appears at the
bottom of the display.

Compatibility

USB 1.1/2.0

Connector

TypeA host, female

Note

If it takes more than 2 seconds for the
USB icon to appear, disconnect the
USB flash drive and connect again.

2. Press the File key.

File

3. Press F4 (Print Screen).

Print Screen..

F 4

4. Press F1 (To Ext. Memory).

To Ext.

Memory...

F 1

5. The USB flash drive contents

appear in the display.

MyResultA

MyFolderB

File Function:

Print to File

Item Name

Memory

External

Remark

MyFolderA

2007/06/06 10:29

2007/01/12 14:45

Date

2007/03/06 09:48
