TRIGGER
105

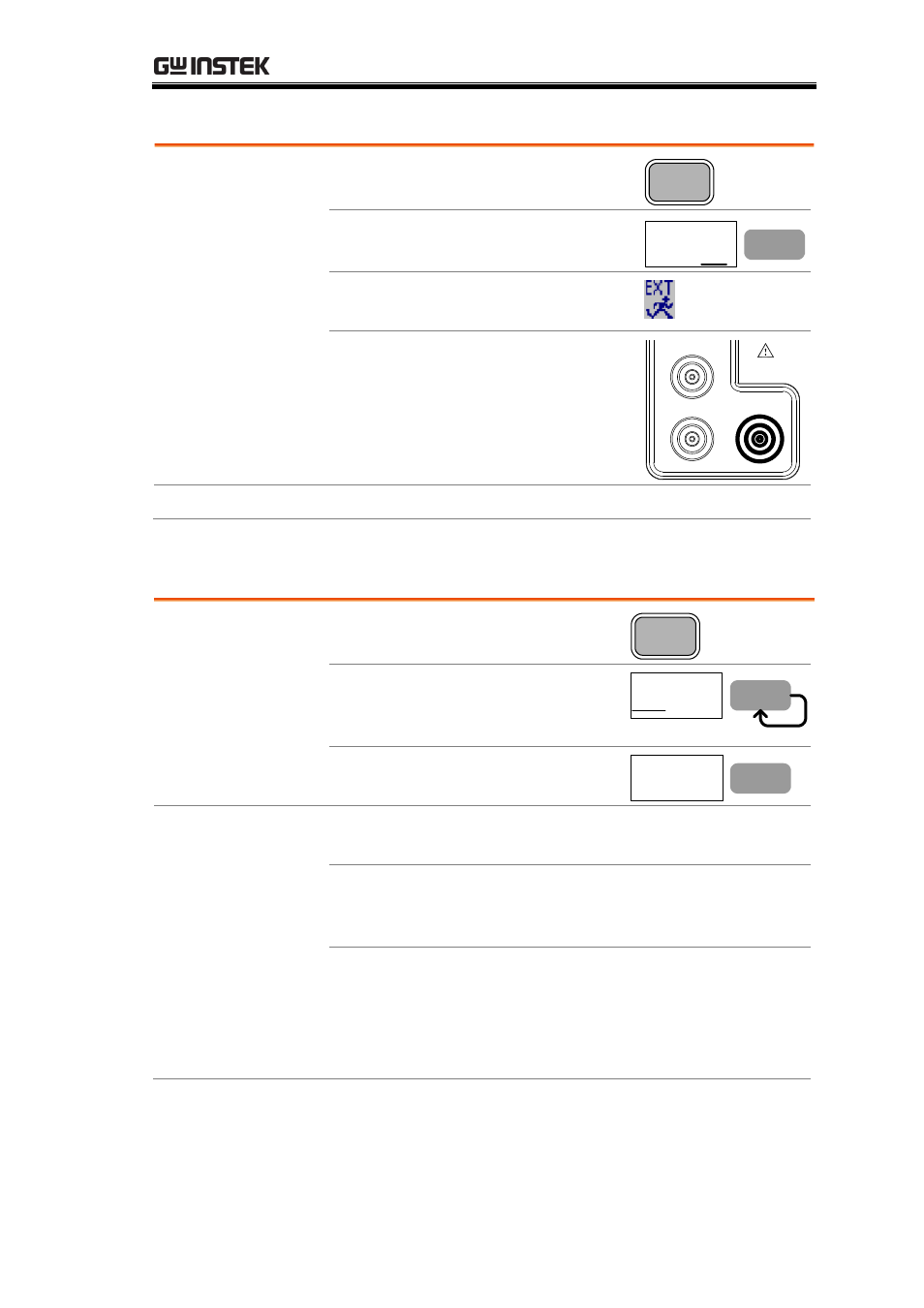

Activate external trigger
Panel operation 1. Press the Trigger key.
Trigger
2. Press F2 (Trigger Condition
Ext.).
Trigger
Condition
Video Ext.
F 2
3. The Ext. trigger icon appears at
the bottom of the display.
4. Connect the external trigger
signal to the rear panel terminal. EXT. TRIG.
INPUT
Input level range 0V to 5V, positive edge trigger
Select Trigger Mode
Panel operation 1. Press the Trigger key.
Trigger
2. Press F3 (Trigger Mode)
repeatedly to select the trigger
mode.
Trigger Mode
Norm. Sgl. Cont.
F 3
3. Press F6 (Run Now) to
manually start triggering.
Run Now F 6
Modes Normal The GSP-830 captures signals every time
the triggering condition occurs.
Single The GSP-830 captures signals when the
first triggering condition occurs, then
stops capturing altogether.
Continuous The GSP-830 captures signals when the
first triggering condition occurs, then
switches to Free Run mode. After then,
input signals are captured continuously
regardless of their conditions.
