How autoset works – GW Instek GSP-830 User Manual User Manual
Page 59
AUTOSET
59
How Autoset Works
Description
The Autoset function searches the peak signals in two
stages (full span & 0Hz - 100MHz limited span), picks up
the signal peak with the maximum amplitude, and then
shows it in the display. The following flowchart
graphically shows the simplified procedures.

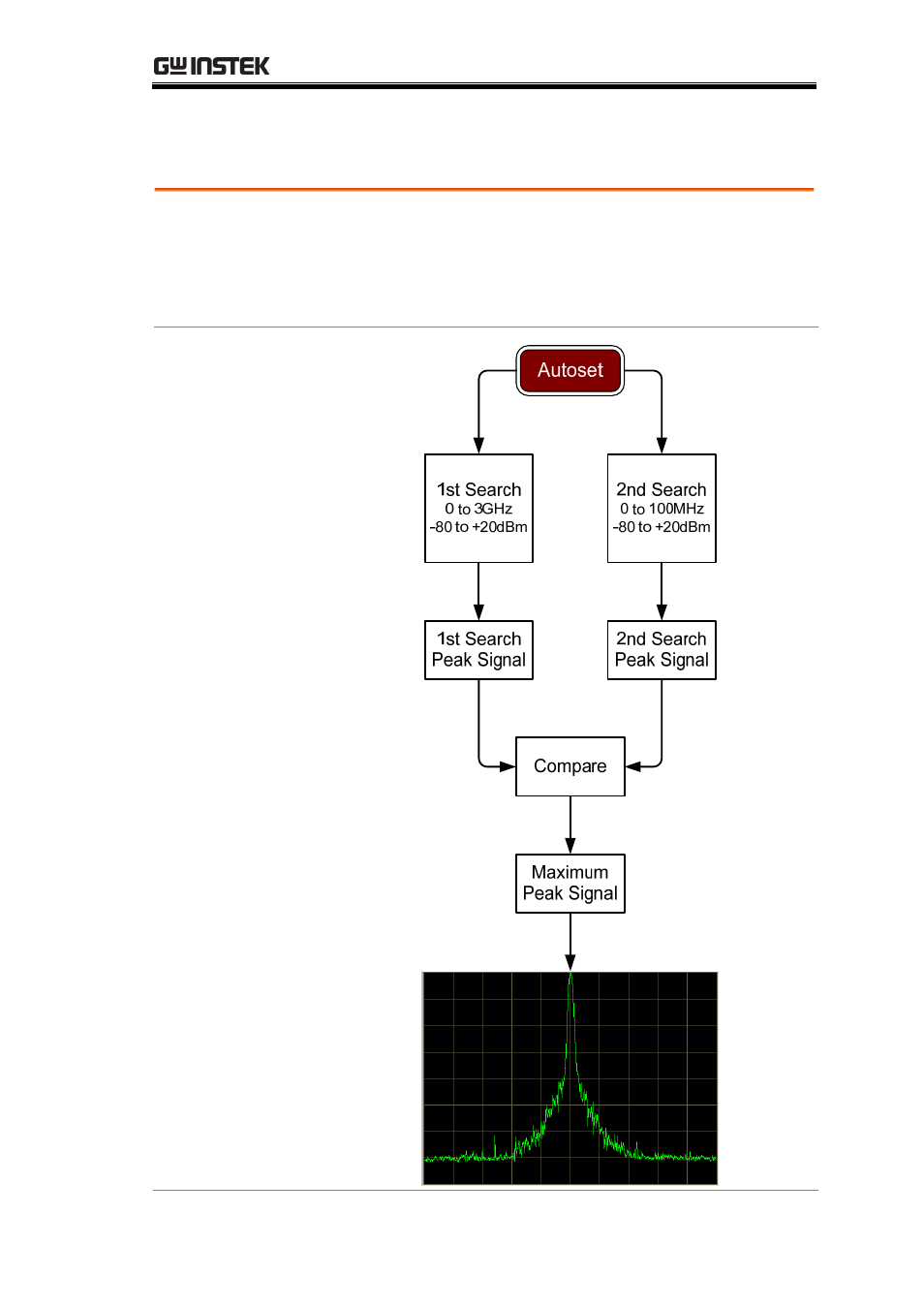

Flowchart
