GSP-830 User Manual
152

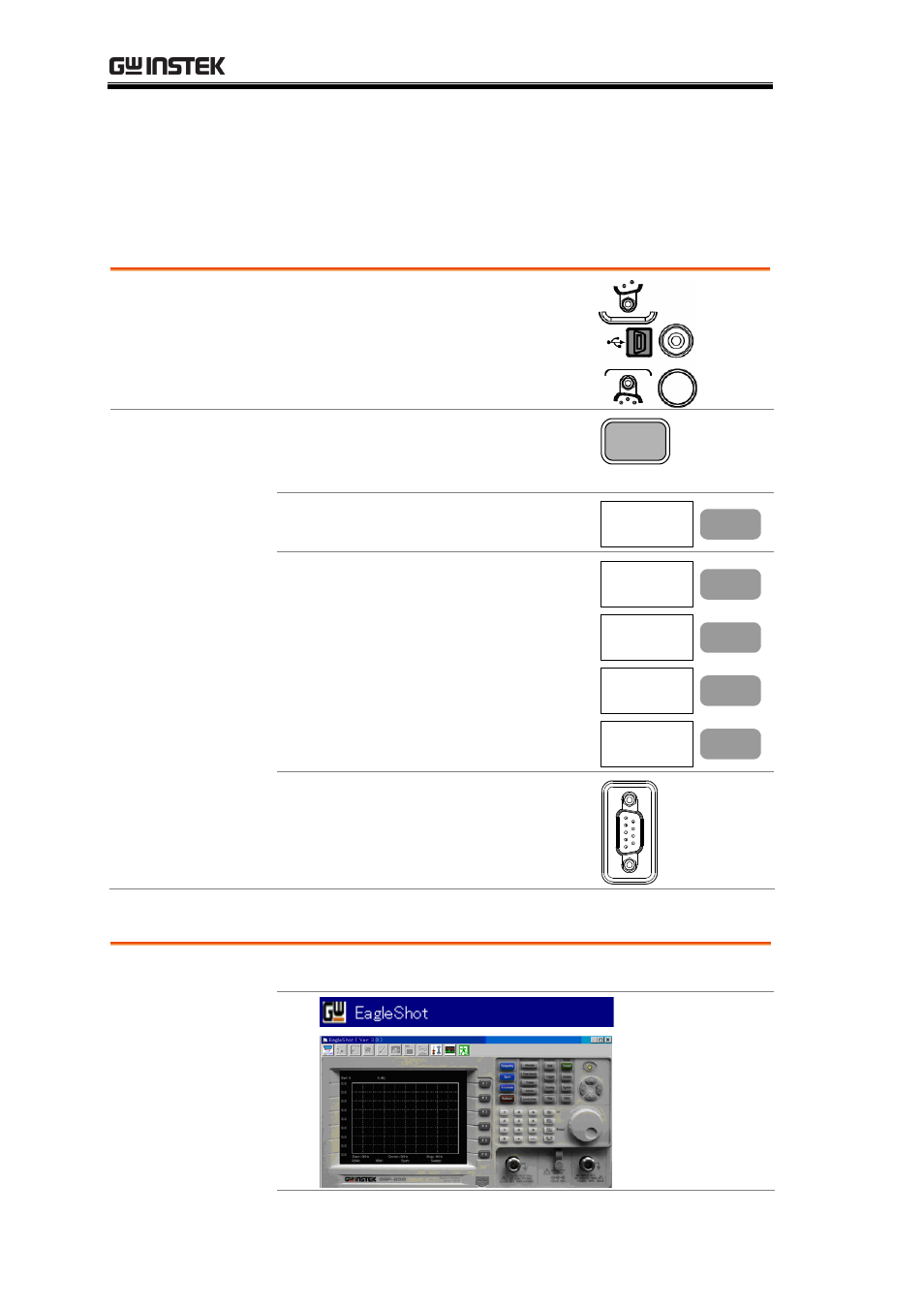

Connect Software
This section assumes that the software is already installed.
Configure interface
USB slave or RS-232C is acceptable.
Configure USB No need to configure anything on
the GSP-830 side. Just connect the
type B mini USB cable to the rear
panel.
Configure RS-232C 1. The RS-232C configuration can
be checked from the system
menu. Press the System key.
System
2. Press F3 (Serial Port).
Serial Port.. F 3
3. The RS-232C port configuration
appears. Configure the PC
according to this setting.
Baud: 57600
Parity: None
Stop bit: 1
Data bit: 8
Stop
1
F 3
Baud
57600
F 1
Parity
None
F 2
Data
8
F 4
4. Connect a 9 pin, male RS-232C
cable to the rear panel connector.
Invoke software
PC operation
1. Invoke the software from the startup menu in the PC.
