GSP-830 User Manual
126

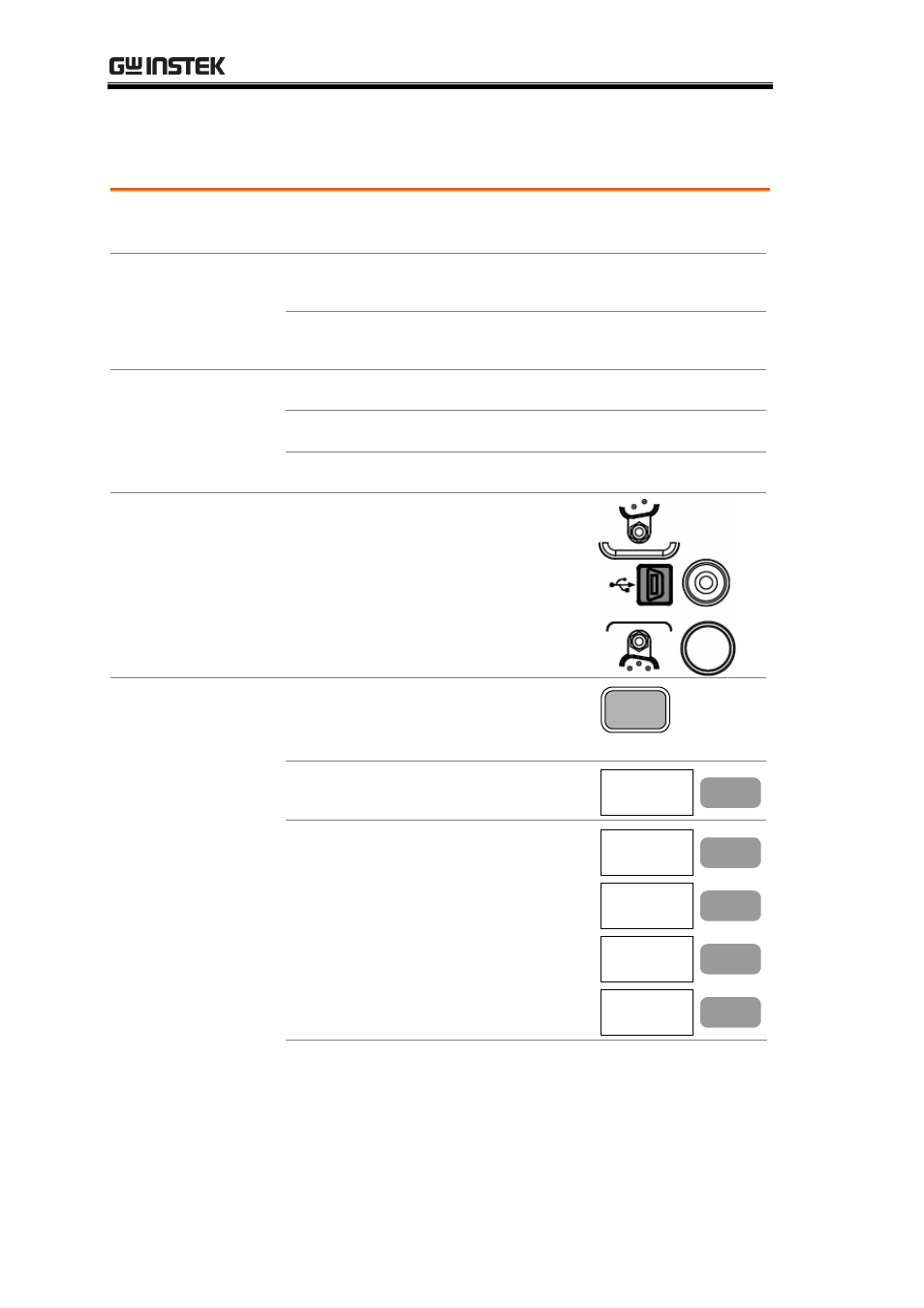

Configure Communication Interface
Background The GSP-830 supports three types of communication
interface: standard USB/RS-232C and optional GPIB.
Communication
Method PC software
(page150) USB slave, RS-232C
Remote control
(page157)
USB slave, RS-232C, GPIB
Interface type USB slave USB 1.1 or 2.0, TypeB mini
RS-232C D-sub 9 pin.
GPIB (optional) IEEE-488 24pin.
USB slave port
configuration No need for panel configuration:
Just connect a type B mini USB
cable between the rear panel and
PC.
RS-232C
configuration 1. The RS-232C configuration can
be viewed from the system
menu. Press the System key.
System
2. Press F3 (Serial Port).
Serial Port.. F 3
3. The RS-232C port
configuration appears.
Configure the PC according to
this setting.
Baud: 57600
Parity: None
Stop bit: 1
Data bit: 8
Stop
1
F 3
Baud
57600
F 1
Parity
None
F 2
Data
8
F 4
