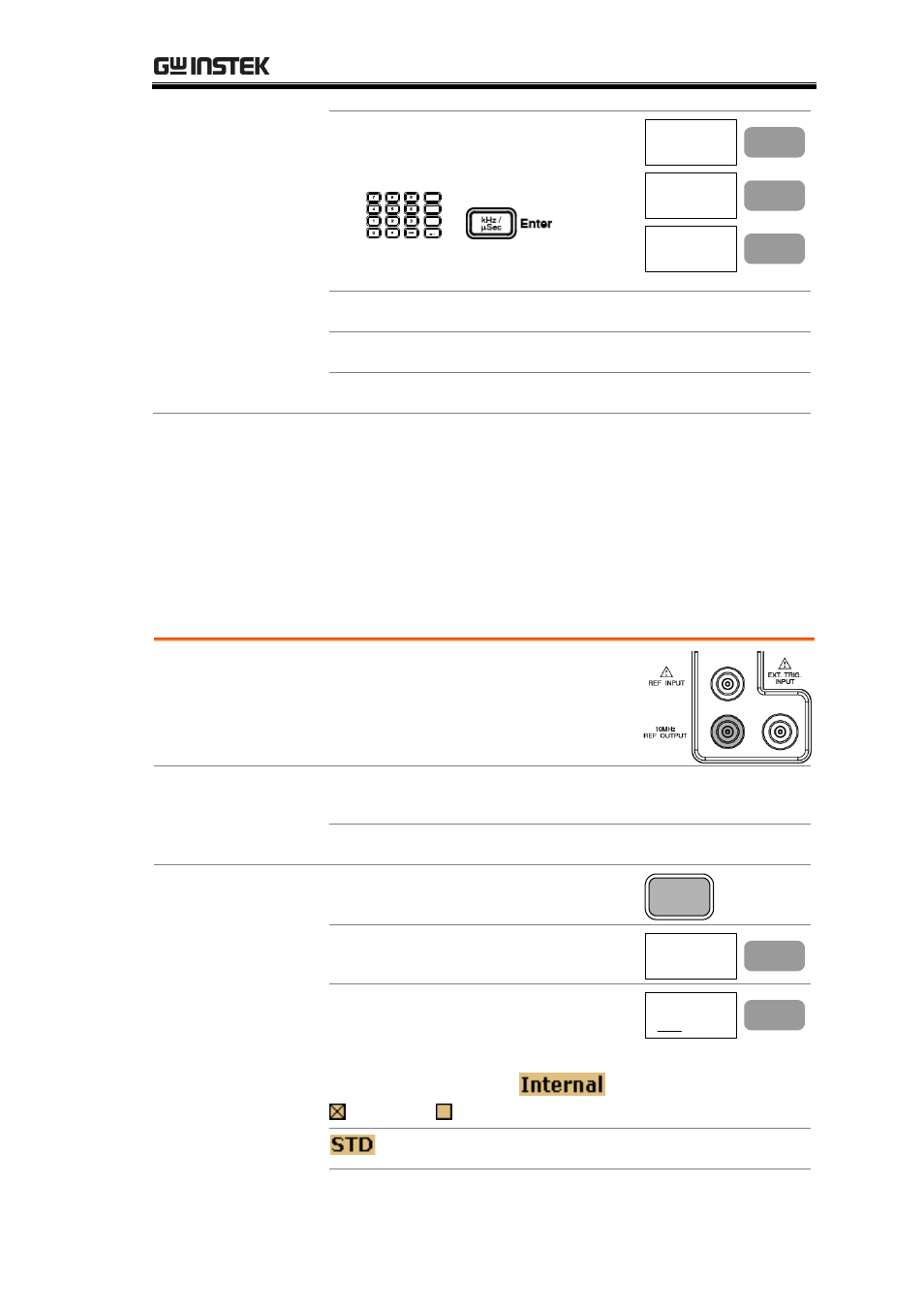

SYSTEM
133
2. Press F1 (Year) to F3 (Second).
Enter the value using the
Numerical keys and Enter key.
BK SP
dB
Enter
GHz / Sec
mSec MHz /
kHz / Sec μ
The clock display changes
accordingly.
Hour F 1
Minute F 2
Second F 3
Hour 0 to 23
Minute 0 to 59
Second 0 to 59
Synchronize GSP-830 with Other Devices
Using the REF INPUT/OUTPUT on the rear panel, the GSP-830 can
synchronize its internal frequency with other devices. The GSP-830 can
become the master (reference signal for another device) or the slave (reference
signal input from another device).
GSP-830 as master (internal reference signal)
Panel operation Connect the reference signal output
terminal on the rear panel to the
other device’s reference input.
Signal type Output level 10MHz, 5V TTL signal (assumes
the load impedance is infinite)
Output impedance 50Ω
Stability check 1. Press the System key.
System
2. Press F6 (More).
More... F 6
3. Press F4 (System Config On).
System Config
On Off
F 4
The system configuration window appears. The Internal
Reference Signal sign
shows the status.
: enabled, : disabled.
Internal reference signal, standard stability
