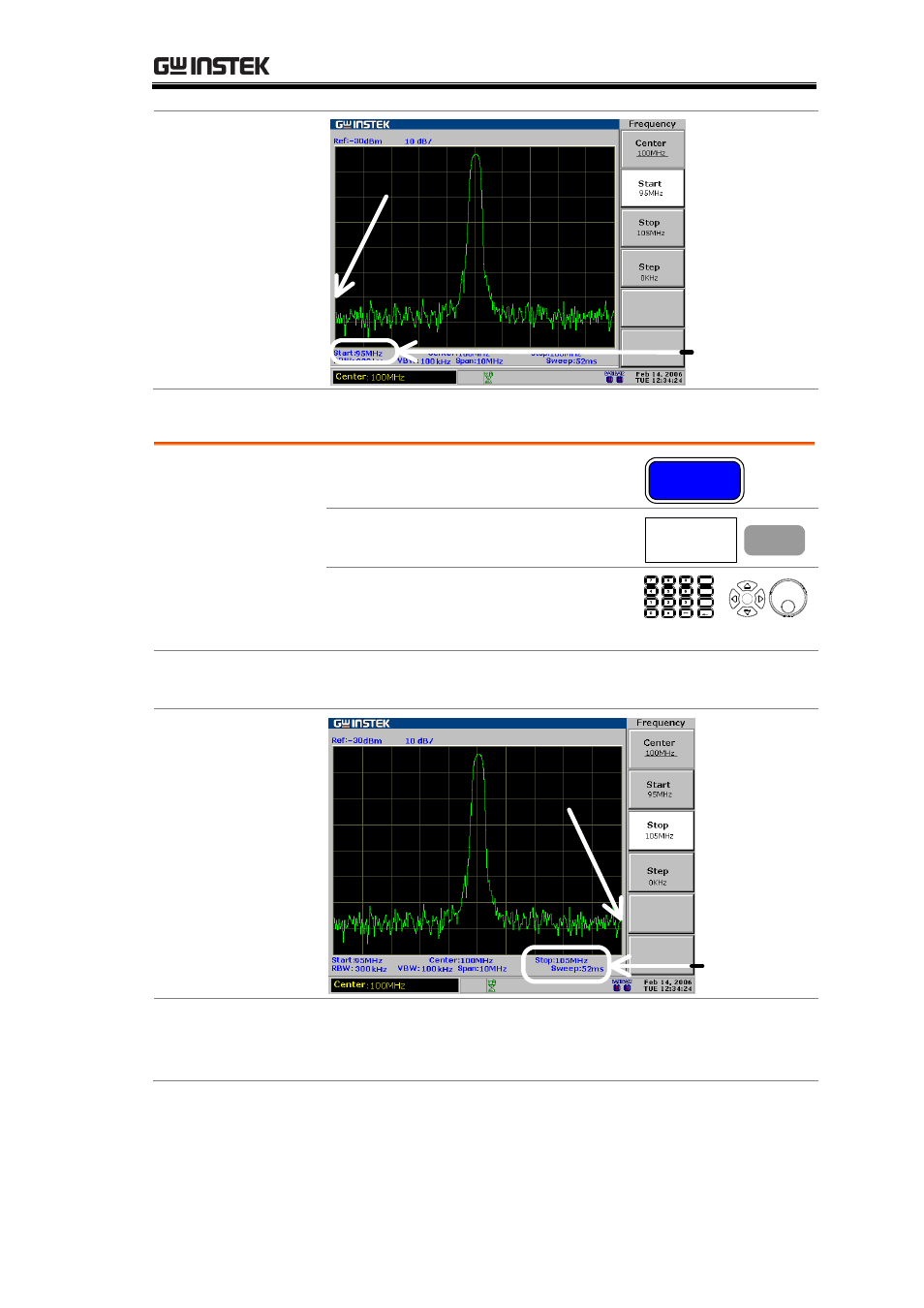

FREQUENCY/SPAN

45

Display

Start
Frequency

Frequency
reading

Set stop frequency

Panel operation

1. Press the Frequency key.

Frequency

2. Press F3 (Stop).

Stop

3 GHz

F 3

3. Enter the value using the

Numerical and Unit Keys,
Arrow keys, and Scroll knob.

BK SP

dB

Enter

GHz /

Sec

mSec

MHz /

kHz /

Sec

μ

Range

0.0kHz to 3.0GHz (start frequency ≤ stop frequency)
* Arrow keys and Scroll knob resolution: step value

Display

Frequency
reading

Stop

Frequency

Note

Center frequency and span settings automatically change
according to start and stop frequency settings, and vice
versa.
