REMOTE

CONTROL

159

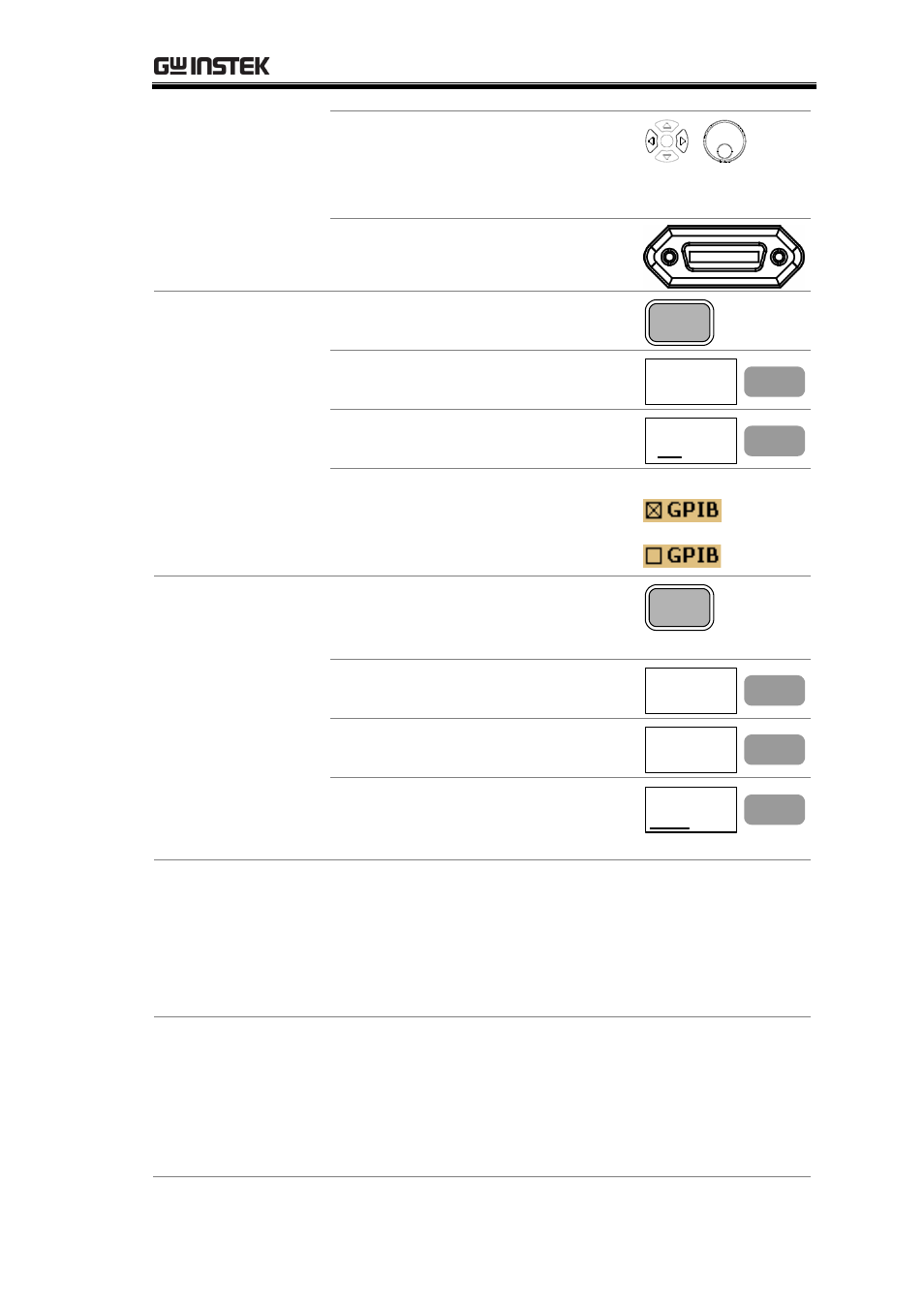

3. Select the GPIB address using

the Left/Right keys or Scroll
knob. Configure the PC
accordingly.

4. Connect the GPIB cable to the

rear panel terminal.

Check GPIB
installation status

1. To check the GPIB installation

status, press the System key.

System

2. Press F6 (More).

More...

F 6

3. Press F4 (System Config On).

The configuration appears.

System Config

On Off

F 4

4. The system configuration

window appears. GPIB sign
shows installed (checked) or not
installed (unchecked)

Installed

Not installed

Check GPIB self-test
result

1. To check the internal GPIB

functionality test result, press
the System key.

System

2. Press F6 (More).

More...

F 6

3. Press F2 (Self Test).

Self Test...

F 2

4. The GPIB result appears at F1.

If the result is Fail (underlined),
contact the service center.

GPIB

Pass Fail

F 1

GPIB constraints

Keep these rules when using the GPIB interface.

Altogether less than 15 devices & 20m cable length,
2m between each device on the bus

Unique address assigned for each device

At least 2/3 of the GPIB devices turned On

No loop or parallel structure allowed

Functionality Check

Run this query command from the terminal.
*idn?
This should return the Manufacturer, Model number,
Serial number, and Firmware version.
GW, GSP-830, P920130, V3.01
