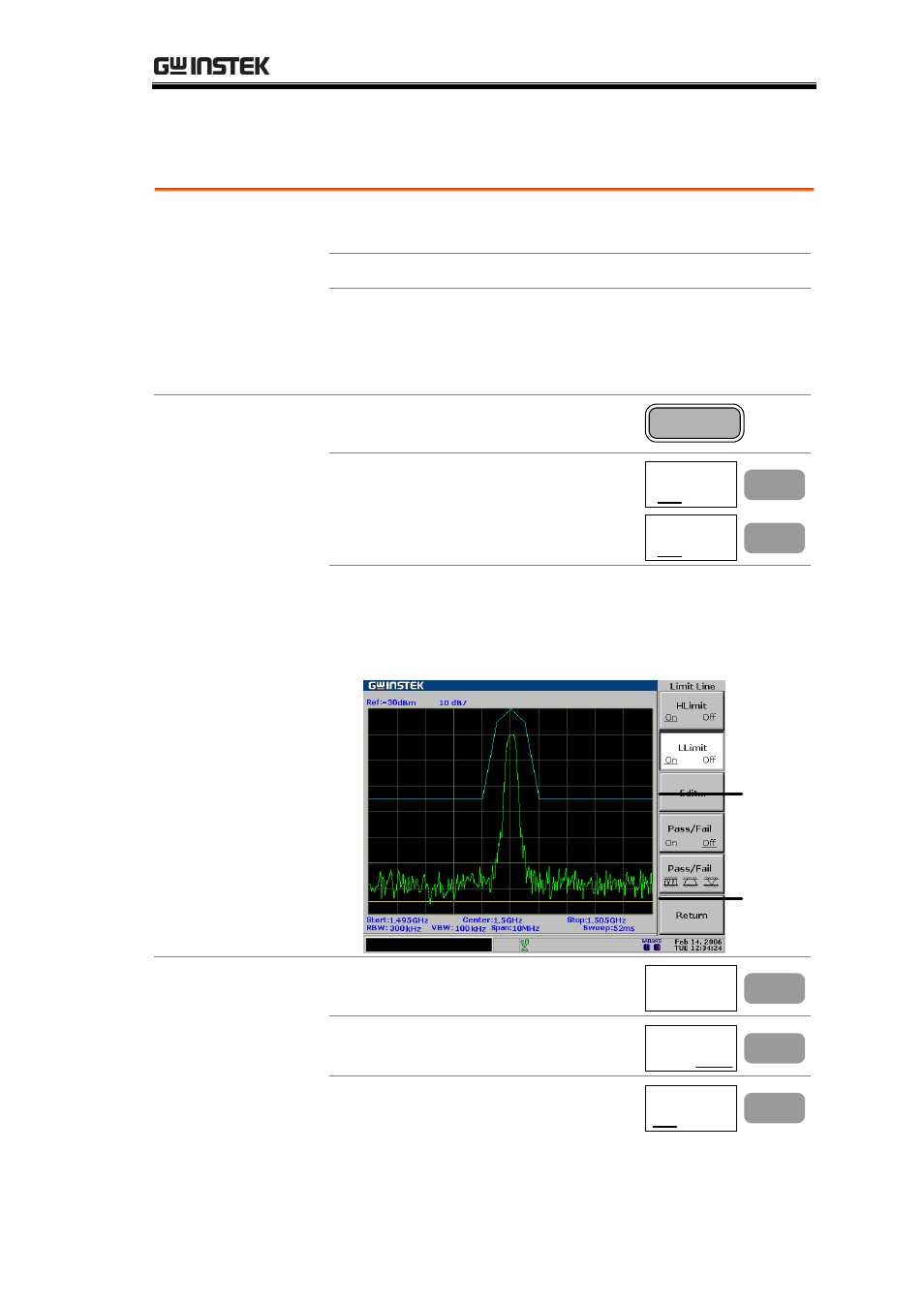

LIMIT LINE
91
Edit Limit Line
Parameters Editing point Maximum 10 points for each limit line,
high or low.
Frequency 9kHz to 3GHz per editing point.
Amplitude Per editing point:
−130 to +20dBm
−83.01dBmV to +66.99dBmV
−23.01dBuV to +126.99dBuV
1. Activate Limit
Line
1. Press the Limit Line key.
Limit Line
2. Press F1 (H Limit On) and/or
F2 (L Limit On) to activate the
high and/or low limit line.
H Limit
On Off
F 1
L Limit
On Off
F 2
3. The limit line appears on the
display.
Blue:
─── H limit line
Yellow: ─── L limit line
H Limit
Line
(edited)
L Limit
Line
2a Activate limit
line editing table
1. Press F3 (Edit).
Edit... F 3
2. Press F1 (Limit) to select the
limit line to be edited.
Limit
Low High
F 1
3. Press F2 (Edit Table On). The
editing table appears in the
lower half of the display.
Edit Table
On Off
F 2
