GSP-830 User Manual
154

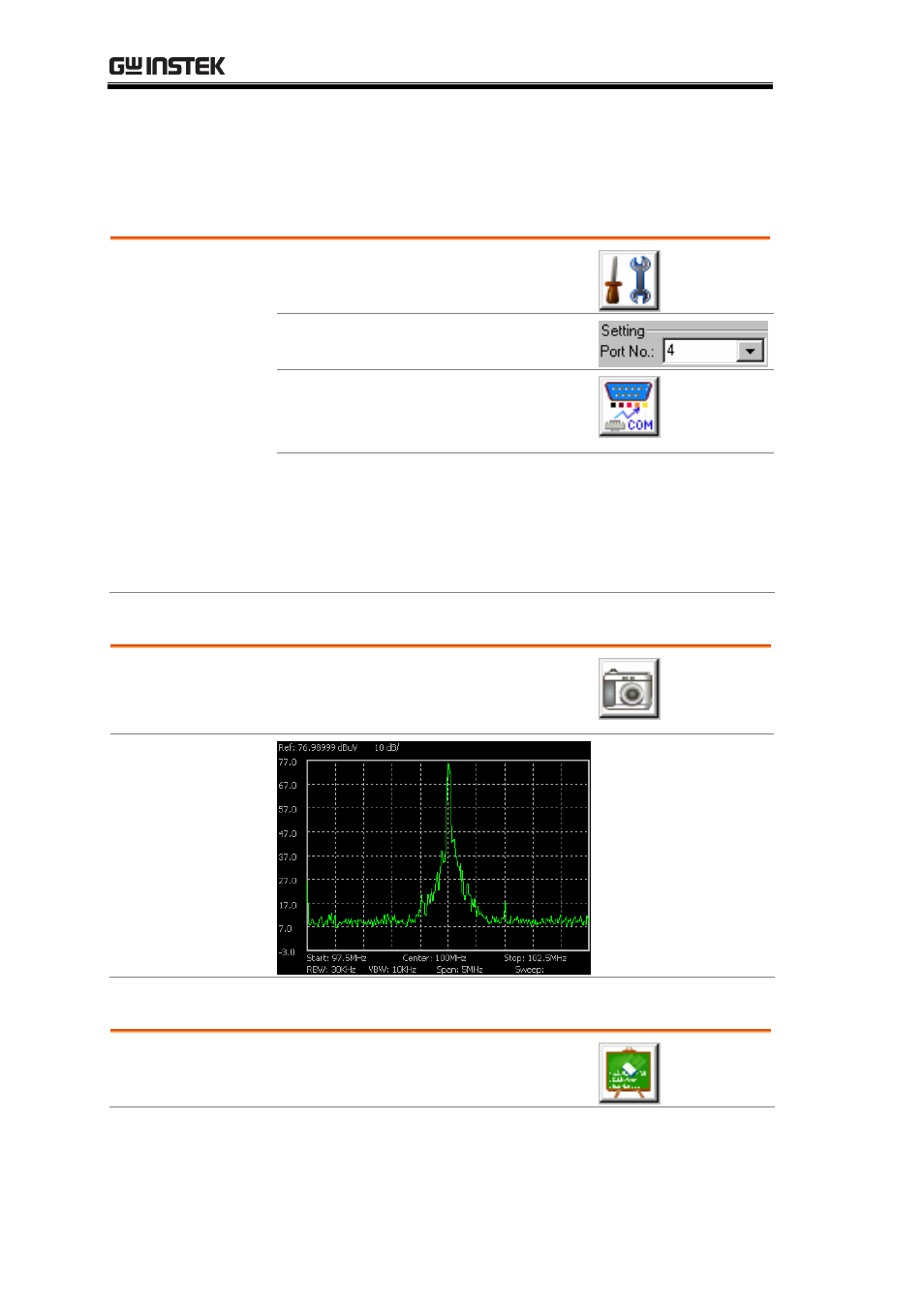

Use Software
Establish connection
Operation step 1. Press the setting icon and open
the parameter setting window.
2. Select the serial port terminal.
3. Press the COM port icon. The
connection is established when
the other icons become active.
Port setting Select the port specified in the PC
configuration. To check the configuration
in the PC, go to Control panel →
System properties → Hardware tab →
Device Manager.
Capture waveform
Operation step Click the capture icon. The current
waveform is captured and appears on
the screen.
Display
Clear waveform
Operation step Click the clear trace icon. The
waveform is cleared from the screen.
