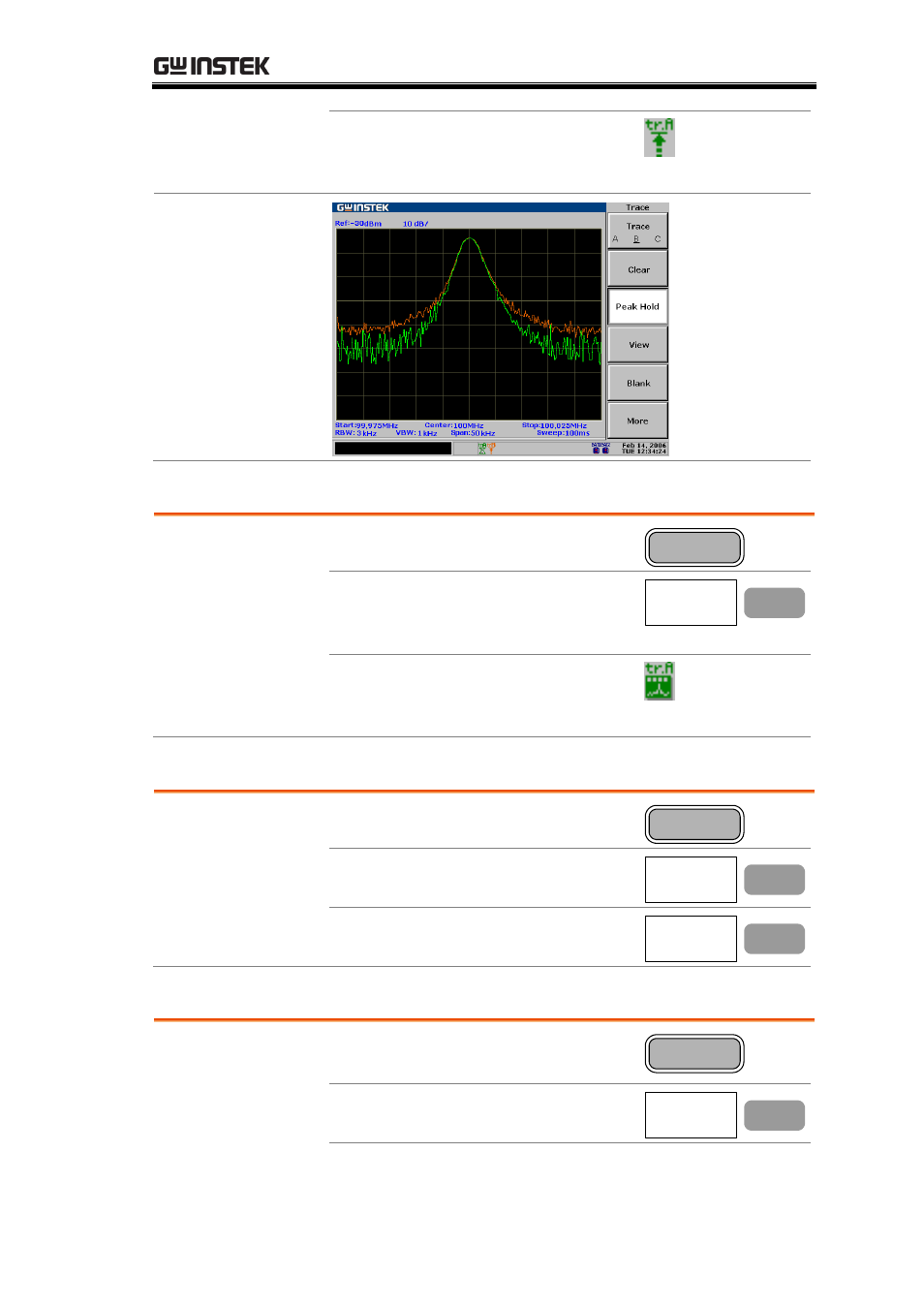

TRACE

75

3. The peak hold trace icon

appears at the bottom of the
display.

Display

Peak Hold

Clear

(default)

Freeze trace

Panel operation

1. Press the Trace key.

Trace

2. Press F4 (View). The trace

shape and location becomes
fixed.

View

F 4

3. The view mode (freeze) icon

appears at the bottom of the
display.

Hide trace

Panel operation

1. Press the Trace key.

Trace

2. Press F5 (Blank). The trace

disappears from the display.

Blank

F 5

3. To bring back the trace again,

press F2 (Clear).

Clear

F 2

View averaged trace

Panel operation
(Method1)

1. Press the Trace key.

Trace

2. Press F6 (More).

More

F 6
