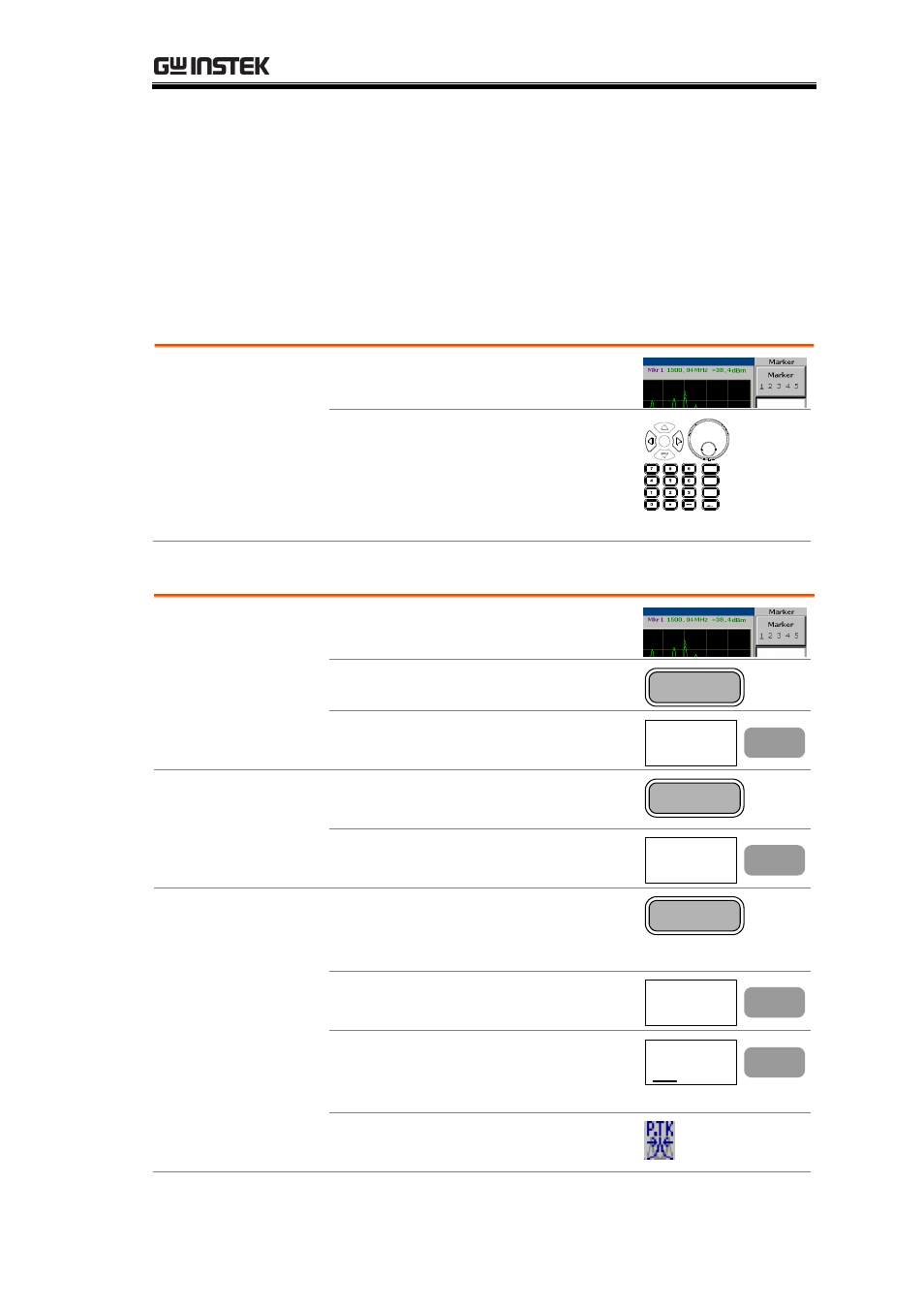

MARKER
65
Move marker
This section assumes at least one marker is already
activated (page63). Marker frequency positions can be set
manually, or can be automatically positioned at specific
locations using the menu shortcuts.
Move marker manually
Panel operation 1. Check the active marker at the
top right corner of the display.
2. Move the marker using the
Left/Right keys and Scroll
knob, or directly enter the
frequency using the Numerical
and Unit keys.
BK SP
dB
Enter
GHz / Sec
mSec MHz /
kHz / Sec μ
Move marker to highest peak
Method 1 1. Check the active marker at the
top right corner of the display.
2. Press the Marker key.
Marker
3. Press F4 (To Peak).
To Peak F 4
Method 2 1. Alternatively, press the Peak
Search key.
Peak Search
2. Press F1 (Pk Search).
Pk Search F 1
Method 3 (marker
tracked to the peak) 1. Another method moves marker
to the peak and also tracks it.
Press the Peak Search key.
Peak Search
2. Press F6 (More).
More F 6
3. Press F4 and select Track On.
The marker is tracked to the
peak.
Track
On Off
F 4
4. The peak tracking icon appears
at the bottom of the display.
