GSP-830 User Manual

16

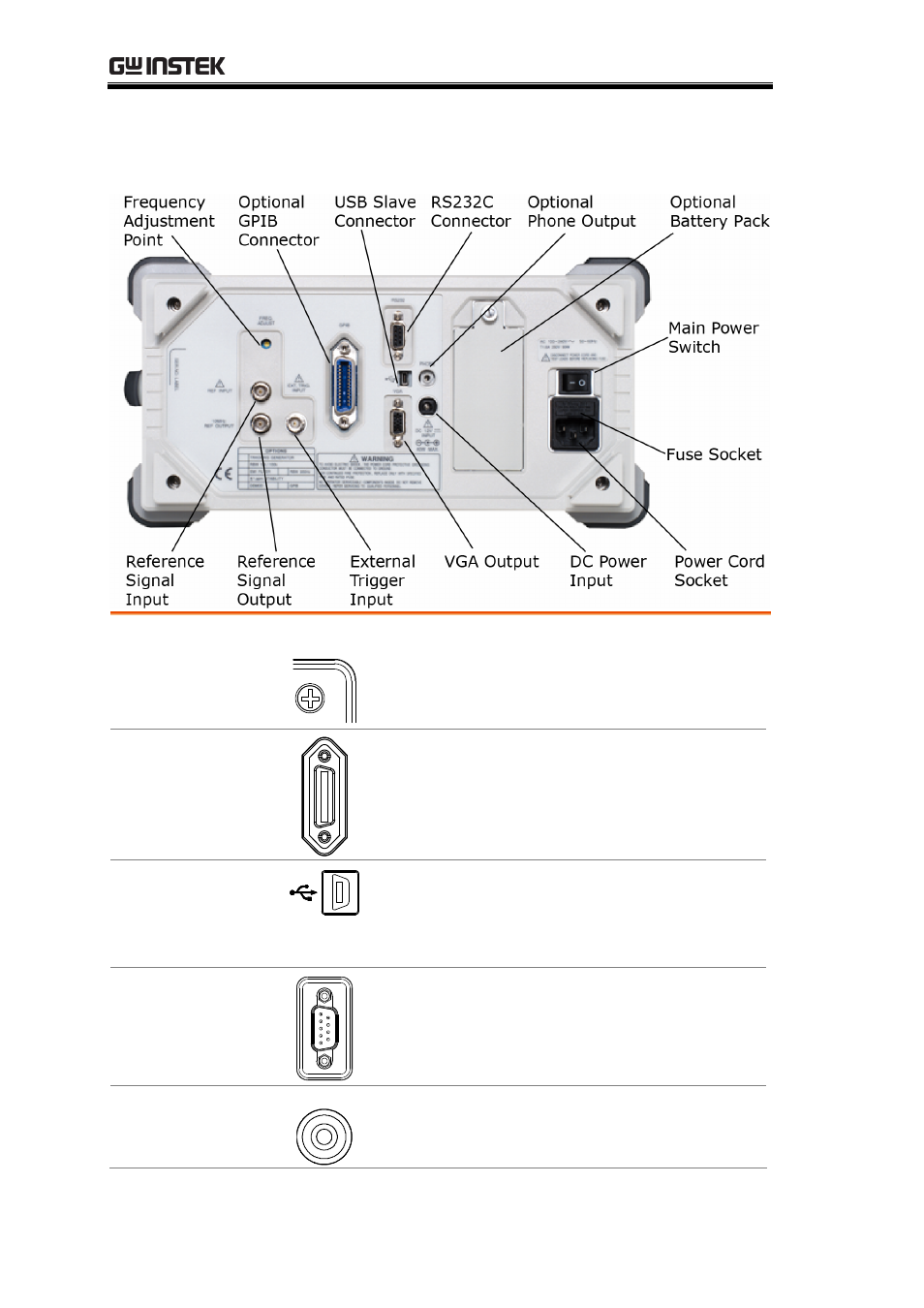

Rear Panel Overview

Frequency
Adjustment Point

FREQ.

ADJUST

Adjusts the internal reference signal
frequency; for service operation only.

GPIB Connector
(Optional)

Optional 24 pin female GPIB connector for
remote control (page157). For interface
setting details, see page127.

USB Connector

Type B mini connector for PC software
connection (page150) and remote control
(page157). For interface setting details, see
page126.

RS232C
Connector

9 pin female connector for PC software
connection (page150) and remote control
(page157). For interface setting details, see
page126.

Phone Output
(Optional)

PHONE

3.5mm phone jack for audio output.
Available when the optional Demodulator is
installed. For details, see page144.
