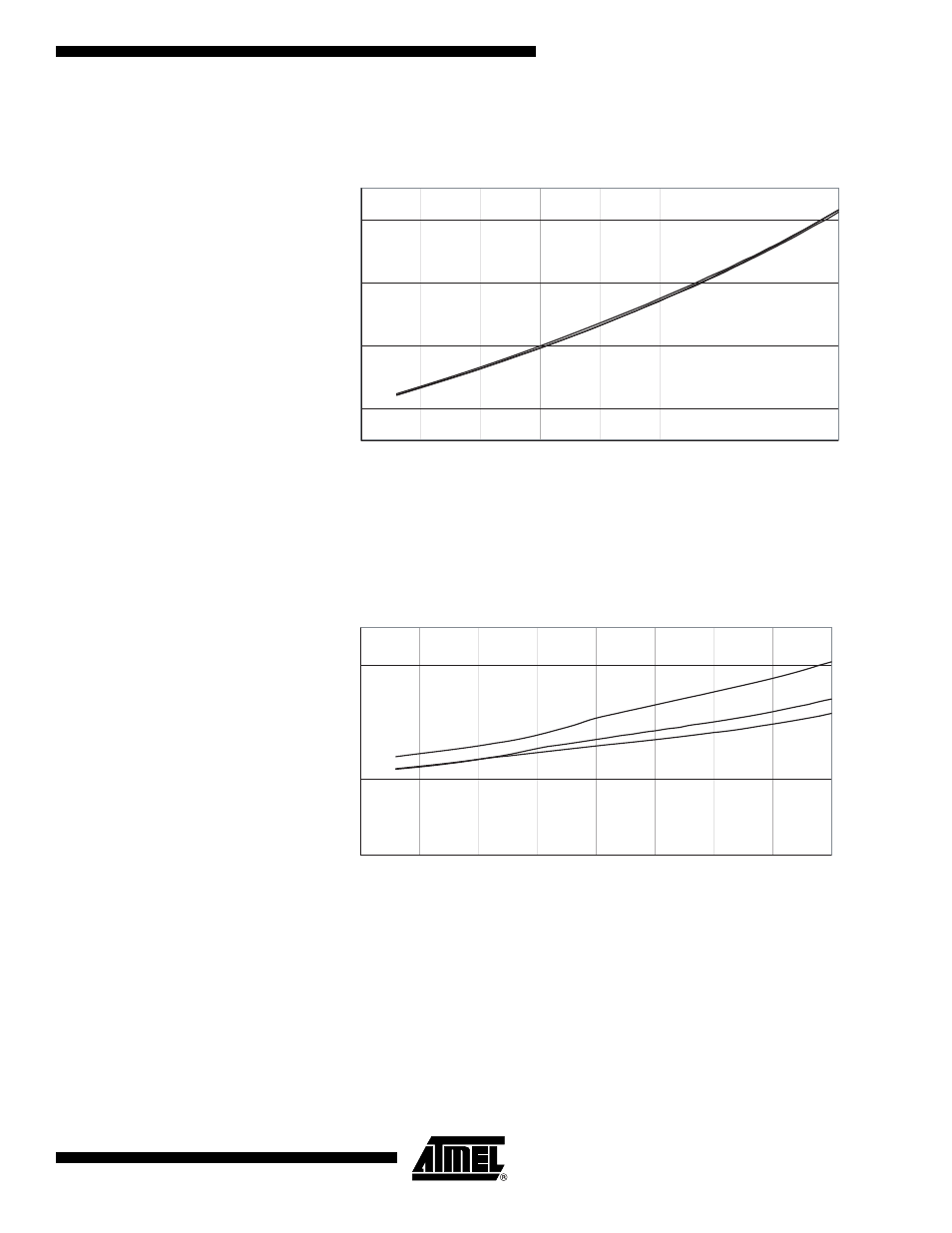

Figure 194. Watchdog Timer Current vs. V
CC
Figure 195. Analog Comparator Current vs. V
CC
WATCHDOG TIMER CURRENT vs. V
CC
0
2
4
6
8
10
12
14
16
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(u
A
)
85 °C
25 °C
-40 °C
ANALOG COMPARATOR CURRENT vs. V
CC
0
20
40
60
80
100
120
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(u
A
)
85 °C
25 °C
-40 °C
