ATmega329/3290/649/6490
2552H–AVR–11/06

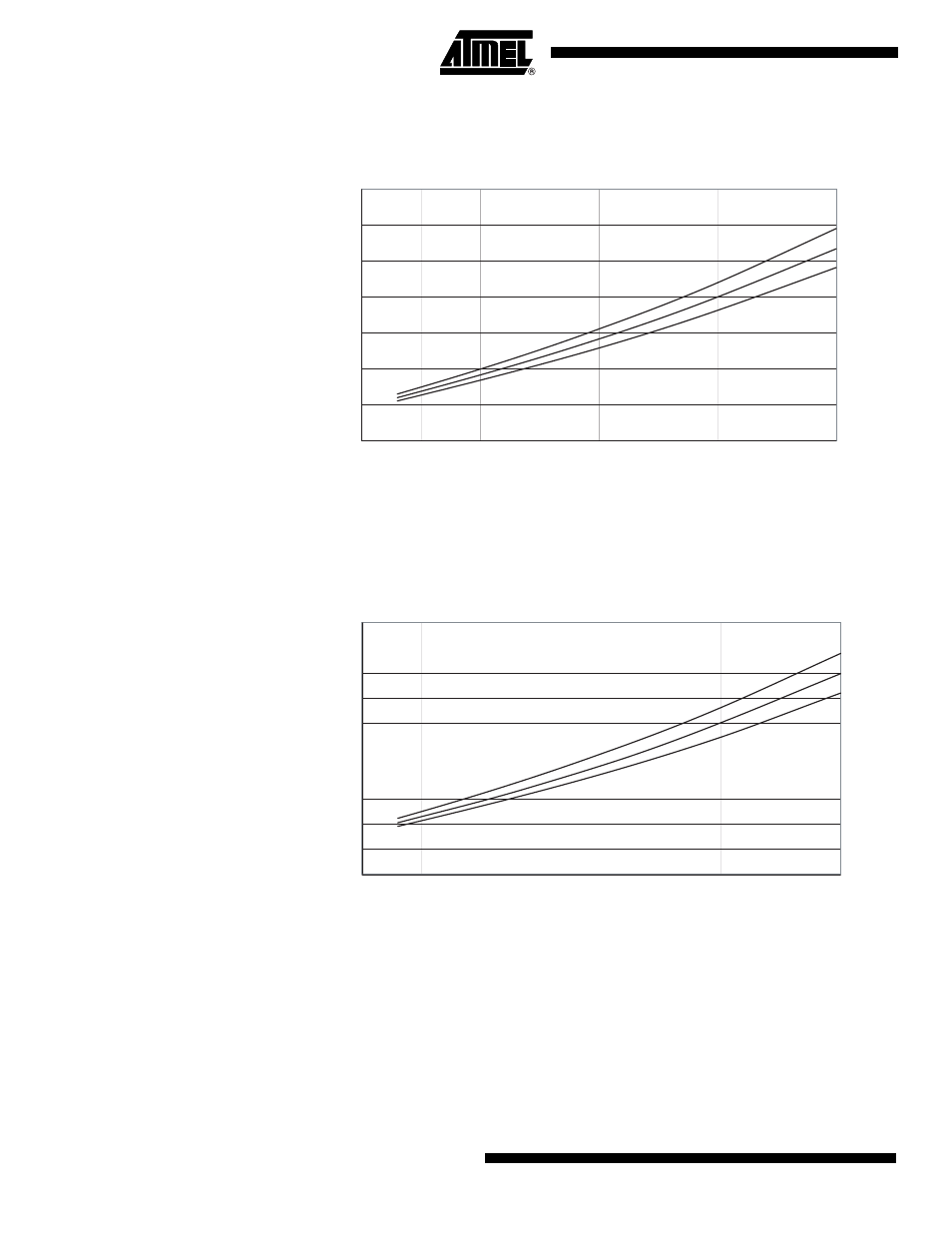

Figure 149. Idle Supply Current vs. V
CC
(Internal RC Oscillator, 8 MHz)
Figure 150. Idle Supply Current vs. V
CC
(Internal RC Oscillator, CKDIV8 Programmed,
1 MHz)
IDLE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, 8 MHz
0
1
2
3
4
5
6
7
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(m
A
)
85 °C
25 °C
-40 °C
IDLE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, CKDIV8 PROGRAMMED, 1 MHz
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(m
A
)
85 C °
25 C °
-40 C °
