H. Program Page

1.

Give WR a negative pulse. This starts programming of the entire page of data.
RDY/BSY goes low.

2.

Wait until RDY/BSY goes high (See Figure 122 for signal waveforms).

I. Repeat B through H until the entire Flash is programmed or until all data has been
programmed.

J. End Page Programming

1.

1. Set XA1, XA0 to “10”. This enables command loading.

2.

Set DATA to “0000 0000”. This is the command for No Operation.

3.

Give XTAL1 a positive pulse. This loads the command, and the internal write sig-
nals are reset.

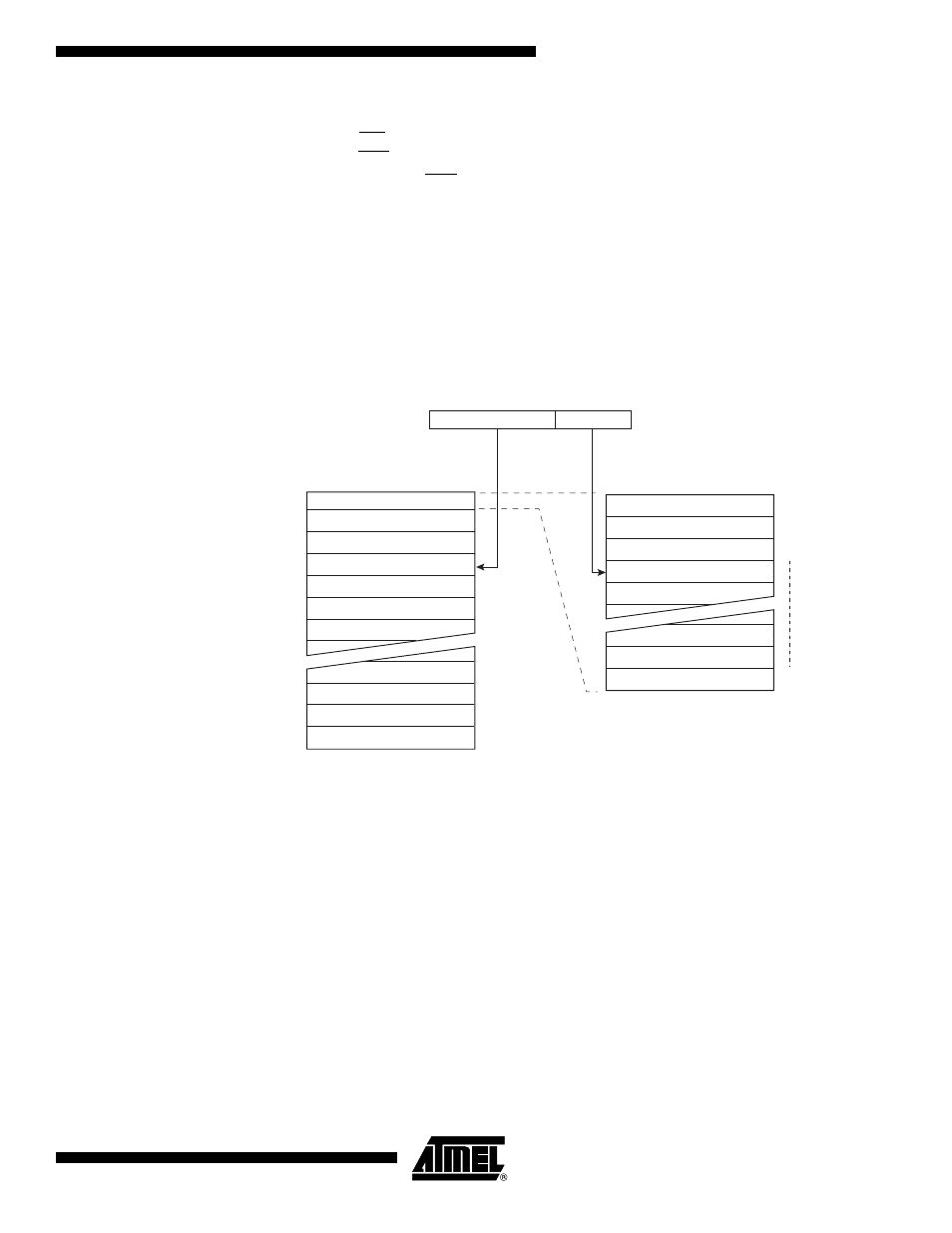

Figure 121. Addressing the Flash Which is Organized in Pages

(1)

Note:

1. PCPAGE and PCWORD are listed in Table 132 on page 286.

PROGRAM MEMORY

WORD ADDRESS
WITHIN A PAGE

PAGE ADDRESS
WITHIN THE FLASH

INSTRUCTION WORD

PAGE

PCWORD[PAGEMSB:0]:

00

01

02

PAGEEND

PAGE

PCWORD

PCPAGE

PCMSB

PAGEMSB

PROGRAM
COUNTER
