298
ATmega329/3290/649/6490
2552H–AVR–11/06
8. Power-off sequence (if needed):
Set RESET to “1”.
Turn V
CC
power off.

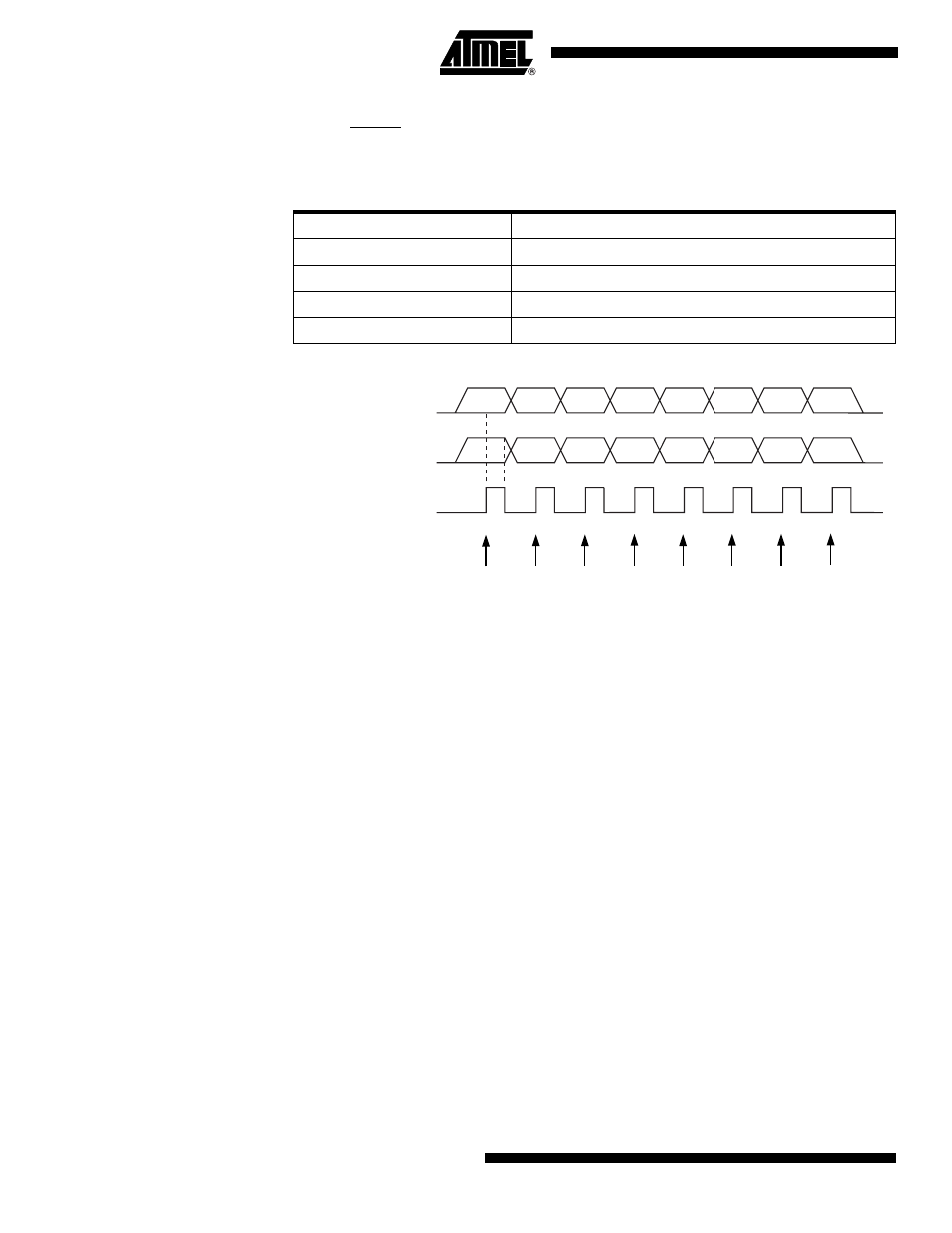

Figure 130. Serial Programming Waveforms
Table 136. Minimum Wait Delay Before Writing the Next Flash or EEPROM Location
Symbol Minimum Wait Delay
t
WD_FUSE
4.5 ms
t
WD_FLASH
4.5 ms
t
WD_EEPROM
9.0 ms
t
WD_ERASE
9.0 ms
MSB
MSB
LSB
LSB
SERIAL CLOCK INPUT
(SCK)
SERIAL DATA INPUT
(MOSI)
(MISO)
SAMPLE
SERIAL DATA OUTPUT
