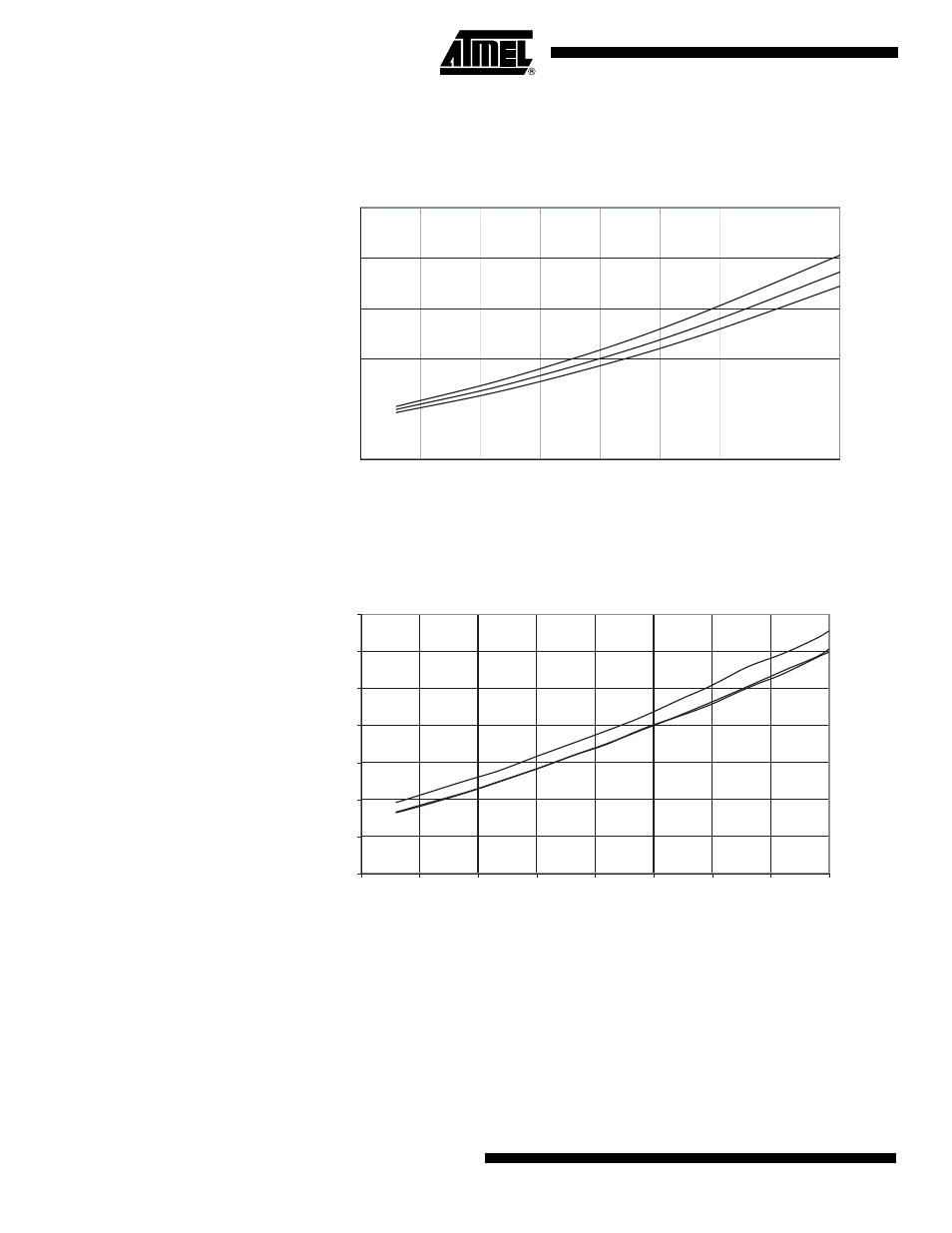

Figure 145. Active Supply Current vs. V
CC
(Internal RC Oscillator, CKDIV8 Programmed, 1 MHz)
Figure 146. Active Supply Current vs. V
CC
(32 kHz External Oscillator)
ACTIVE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, CKDIV8 PROGRAMMED, 1 MHz
0
0.5
1
1.5
2
2.5
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(m
A
)
85 °C
25 °C
-40 °C
ACTIVE SUPPLY CURRENT vs. V
CC
32kHz EXTERNAL OSCILLATOR
85 ˚C
25 ˚C
-40 ˚C
0
10
20
30
40
50
60
70
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(u
A
)
