205
Besides using well-known community attributes, you can define extended community attributes by using
a community list to define a routing policy.
Route reflector
IBGP peers should be fully meshed to maintain connectivity. If n routers exist in an AS, the number of
IBGP connections is n (n-1)/2, and large amounts of network and CPU resources will be consumed.
Using route reflectors can solve this issue. In an AS, a router acts as a route reflector, and other routers
act as clients connecting to the route reflector. The route reflector forwards routing information between
clients, and BGP sessions between clients need not be established.
A router that is neither a route reflector nor a client is a non-client, which has to establish BGP sessions
to the route reflector and other non-clients, as shown in Figure 83 .

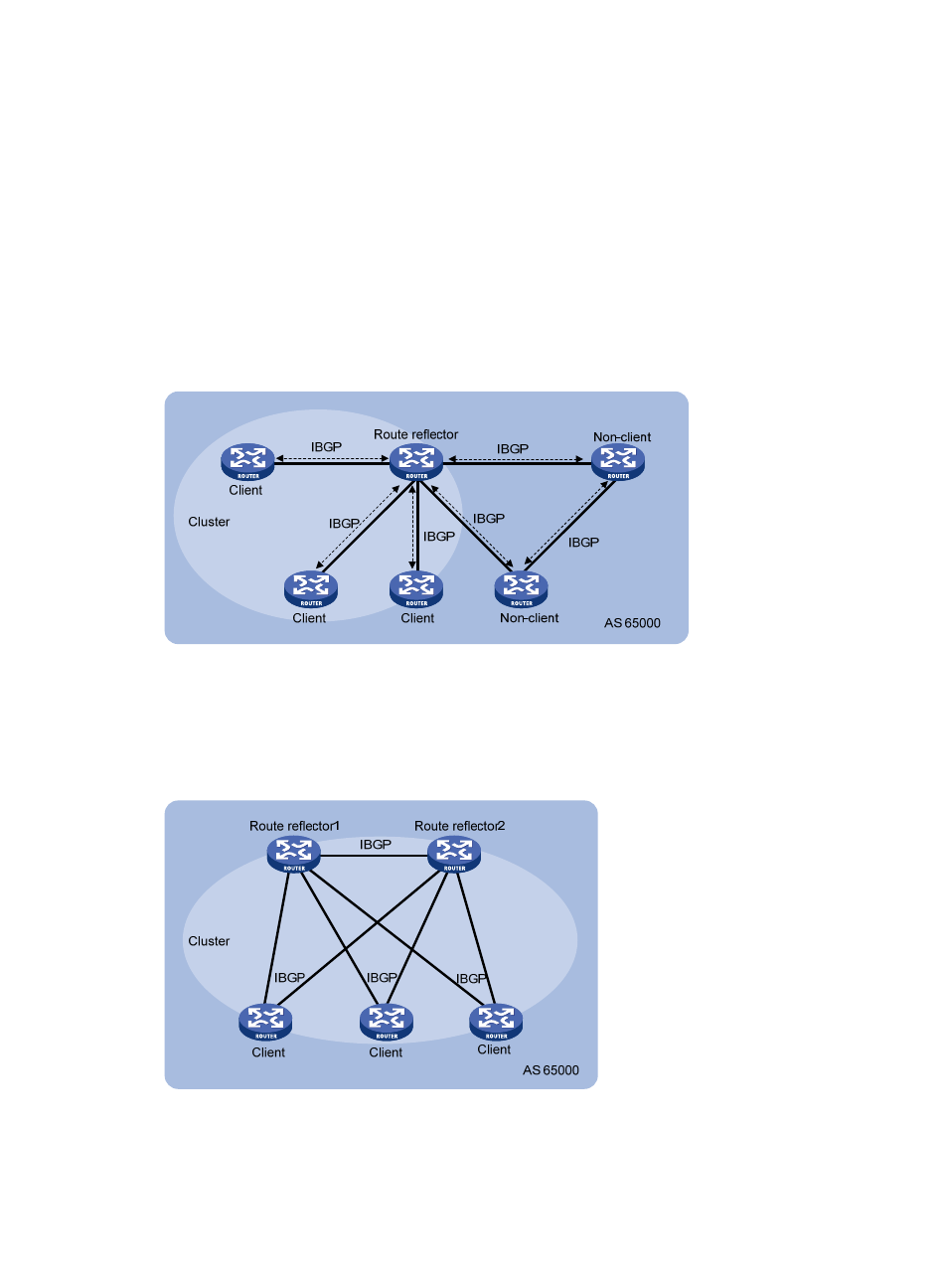

Figure 83 Network diagram for route reflector
The route reflector and clients form a cluster. In some cases, you can configure more than one route
reflector in a cluster to improve network reliability and prevent a single point of failure, as shown in the
following figure. The configured route reflectors must have the same Cluster_ID in order to avoid routing
loops.
Figure 84 Network diagram for route reflectors
When the BGP routers in an AS are fully meshed, route reflection is unnecessary because it consumes
more bandwidth resources. You can use related commands to disable route reflection.
