Test Setup - Test Configurator, Timer, and System
72 FTB/IQS-88000 Series
Test Configurator Overview
Test Configurator Overview

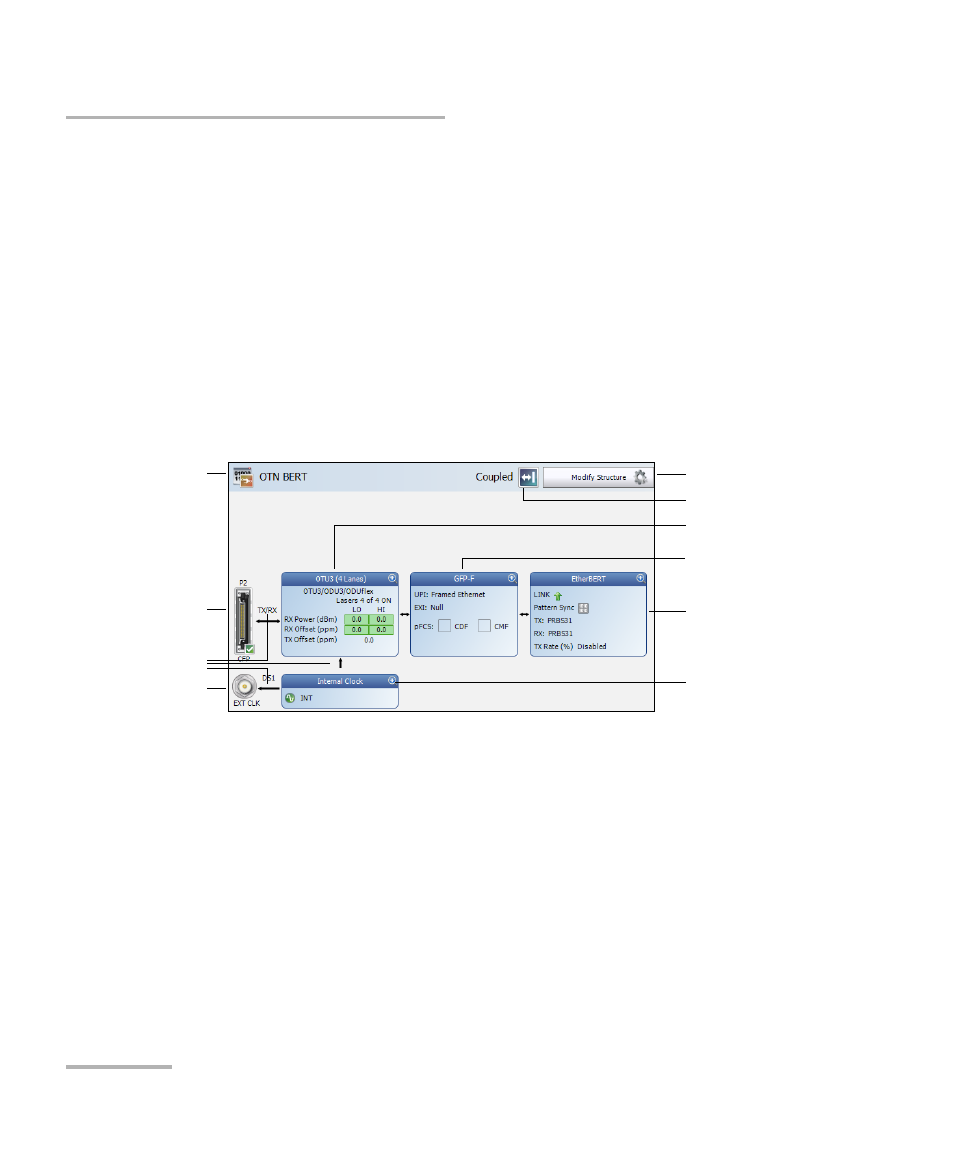

The Test Configurator tab displays the interconnected blocks composing
the test structure. Each block of the test structure gives an overview of its
configuration/status. Availability of each block depends on the selected test
application and its structure. Arrows are used to indicate the
interconnection between blocks as well as the direction of the clock and
data flow. Tap on a block to change the configuration parameters of this
block.
From the Test menu, tap Setup, and the Test Configurator tab.
Transport Test Applications:
Physical
Interface Port
Test Application Modify Structure
Test Block
Clock Block
Physical Clock Port
Interface Block
Arrows
Protocol Block
Topology
