Graphical User Interface Overview
Power Blazer 25
Title Bar
The following status are available at the platform level.

Battery/AC icons, available on FTB platforms, indicate the battery level
and if the platform is connected to an AC power source. Refer to the
platform user guide for more information.

Date and Time indicate the current date and time.

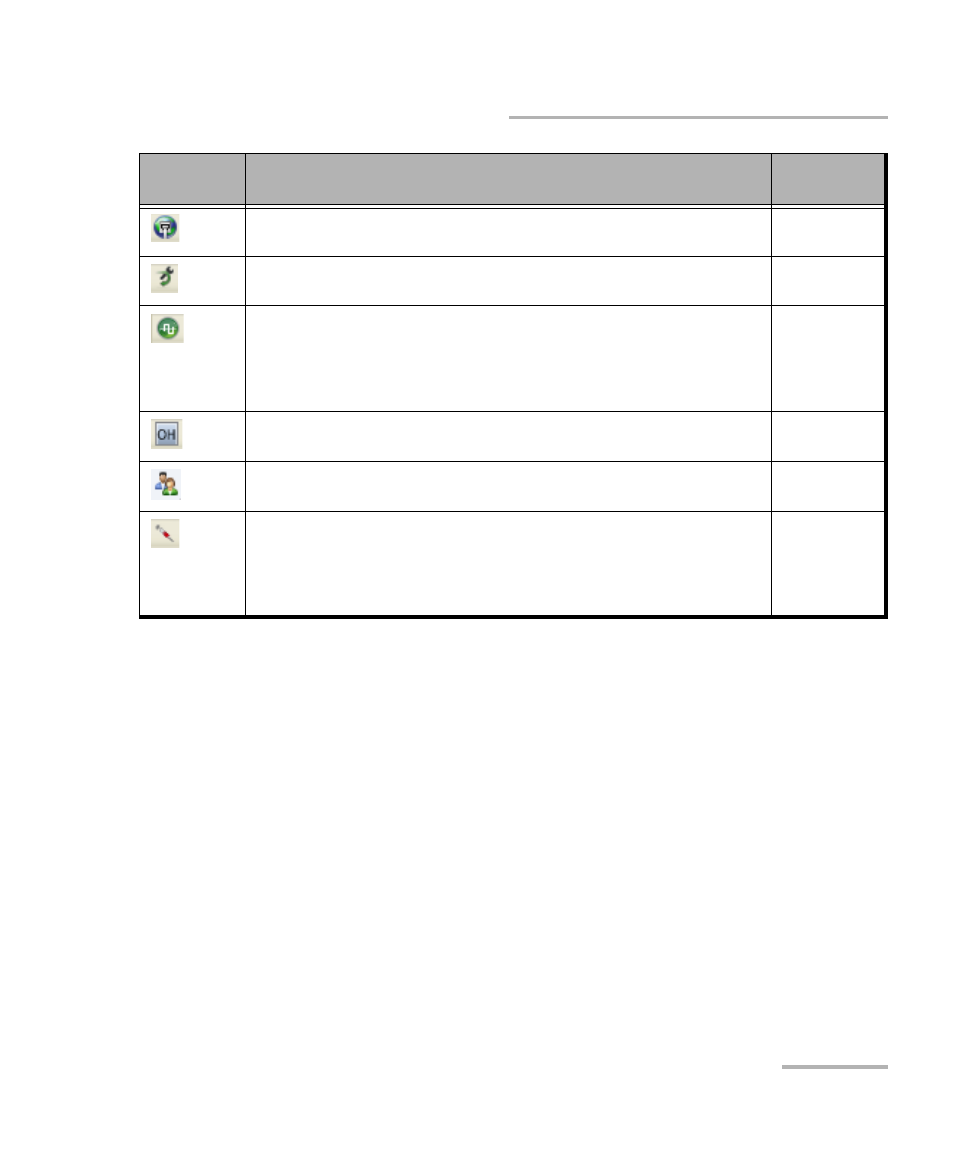

Title Bar
The Title Bar displays the module’s slot number in brackets, the software
application name and the minimize, maximize, and close buttons.
A connection is established between two testing units either in Dual Test
Set (DTS) or in Loop Up mode. Ethernet
Loopback Tool enabled on the port unused by the main test application. Ethernet
Clock synchronization signal clock. The clock icon is followed by the clock
mode: INT for Internal, EXT for External RCV for Recovered, or BKP for
Backplane.
Green: Clock Synchronized.
Red: Loss of clock. Transport
Ethernet
Fibre Channel
Indicates a manual change in the OH bytes transmitted. Not displayed when
using the default OH values. Transport
Remote PC connection established with the Power Blazer. N/A
Alarm/error is currently injected. Not displayed when there is no alarm/error
injection. Transport,
EtherBERT
Carrier Ethernet
OAM,
Fibre Channel
a. For all lanes for parallel interface.
b. For at least one lane for parallel interface.
Icon
and/or text
Description
Test
Application
