Test Functions
Power Blazer
481
Pointer Adjustment
Initialization / Cool Down / Sequence

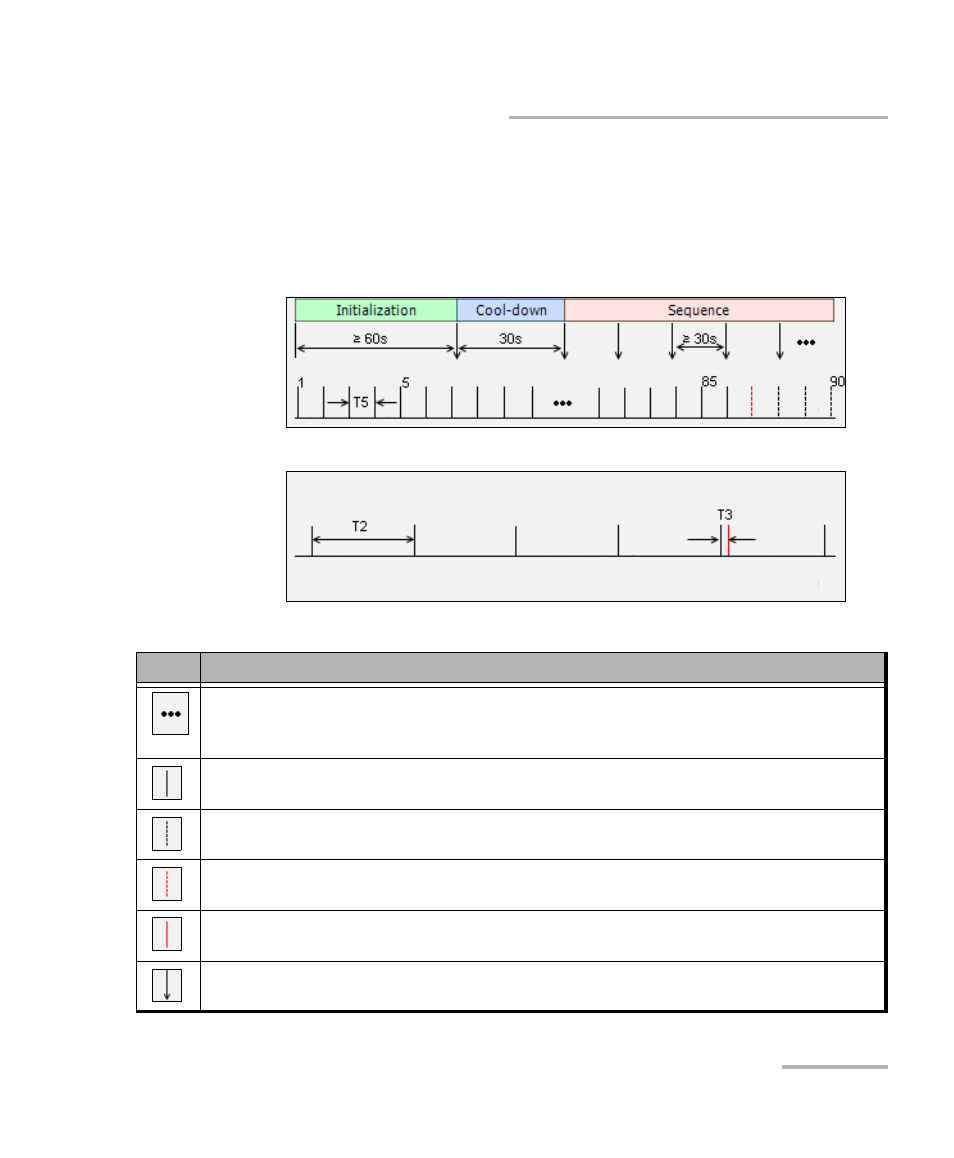

The following time line examples show the initialization, cool down,
and the pointer sequence according to the selected sequence and
parameters.
Example 1: Periodic 87-3 with Cancel
Example 2: Regular pointers plus one double pointer
Legend:
Description
When located at the end (right) of the sequence, indicates a continuous repetition of the pointer
sequence.
When located within the sequence, indicates a repetition of pointers.
Regular pointer event or sequence.
Cancel event.
Special event like an extra cancel event (for example in Periodic 87-3 with Cancel) or a missing
event from the Regular pointers with one missing pointer sequence.
Special event like add, double pointer, etc.
Indicates that the sequence is periodic with special event.
