Winco DGC-2020 - Manual (Page 94)

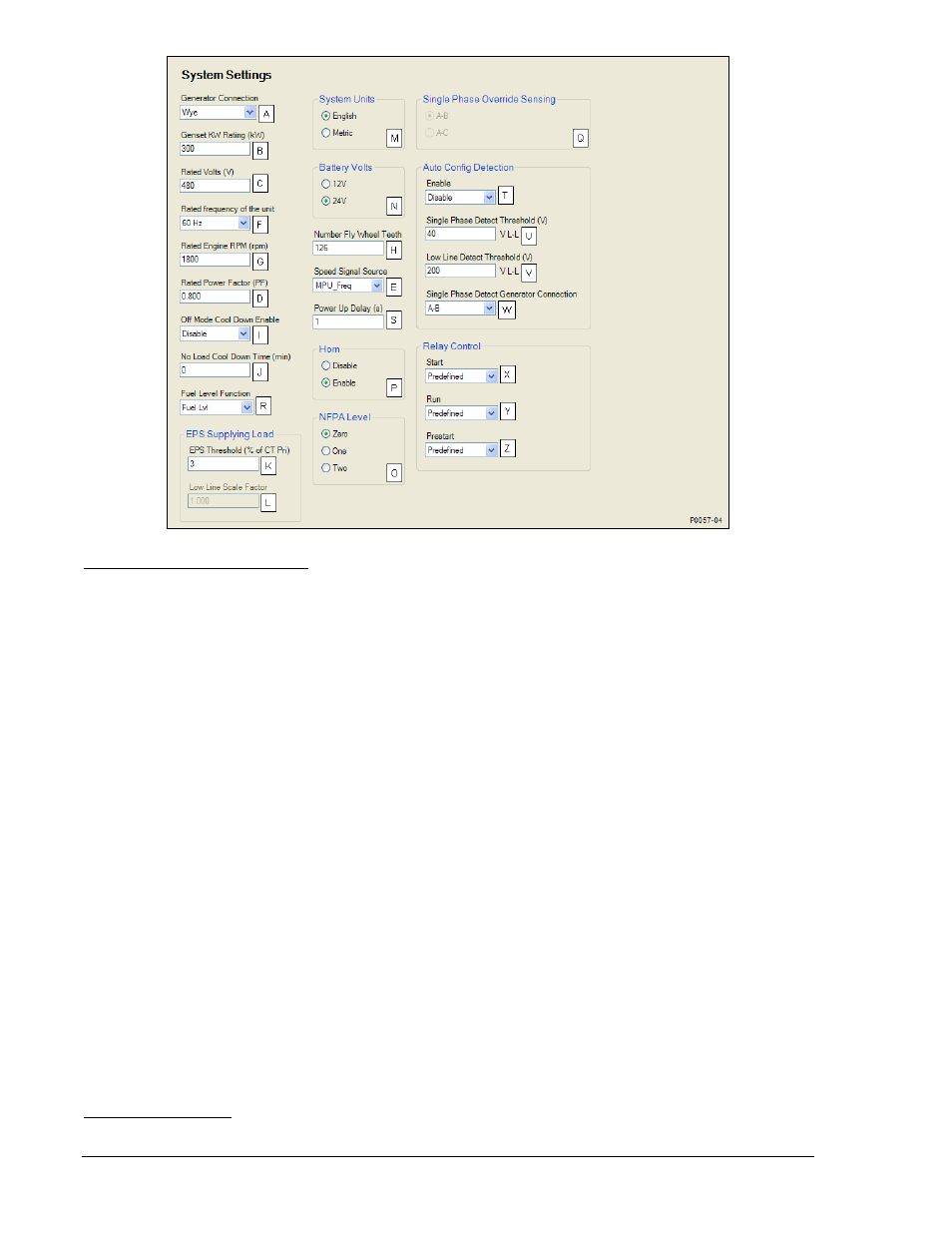

Figure 4-20. System Settings
A Generator Connection: Delta, Wye, 1-Phase A-B, 1-Phase A-C, or Grounded Delta.
B Genset kW Rating: Adjustable from 5 to 9,999 kW in 1 kW increments.
C Rated Volts: Adjustable from 1 to 999 Vac in 1 Vac increments.
D
Rated Power Factor: Adjustable from –1 to +1 in increments of 0.001.
E Speed Signal Source: MPU, Gen Freq, or MPU Freq.
F Rated Frequency: 50/60 or 400 Hz.
G Rated Engine RPM: Adjustable from 750 to 3,600 rpm in 1 rpm increments.
H Number Fly Wheel Teeth: Adjustable from 50 to 500 in increments of 1.
I Off Mode Cool Down Enable: Enable or Disable.
J No Load Cool Down Time: Adjustable from 0 to 60 minutes in 1 minute increments.
K EPS Current Threshold: Adjustable from 3 to 10% of the CT primary rating in 1% increments.
L Low Line Scale Factor: Adjustable from 0 to 3.000 in increments of 0.001.
M System Units: English or Metric.
N Battery Volts: 12 or 24 Vdc.
O NFPA Level: 0 disables NFPA compliance, 1 enables Level 1 NFPA compliance, 2 enables Level 2.
P Horn: Enable or Disable.
Q Single Phase Override Sensing: A-B or A-C.
R Fuel Level Function: Disable, Fuel Lvl, Natural Gas, or Liquid Propane.
S Power Up Delay: Adjustable from 0 to 60 seconds in 1 second increments.
T Auto Config Detection: Enable or Disable.
U Single Phase Detect Threshold: Adjustable from 0 to 480 V in 1 V increments.
V Low Line Detect Threshold: Adjustable from 0 to 480 V in 1 V increments.
W Single Phase Detection Generator Connection: A-B or A-C.
X Start: Predefined or Programmable.
Y Run: Predefined or Programmable.
Z Prestart: Predefined or Programmable.
Remote Module Setup
The following settings are used to configure the LSM-2020, CEM-2020, and AEM-2020.
Load Sharing Module
A J1939 Address
A must be entered when an optional LSM-2020 is enabled B .
