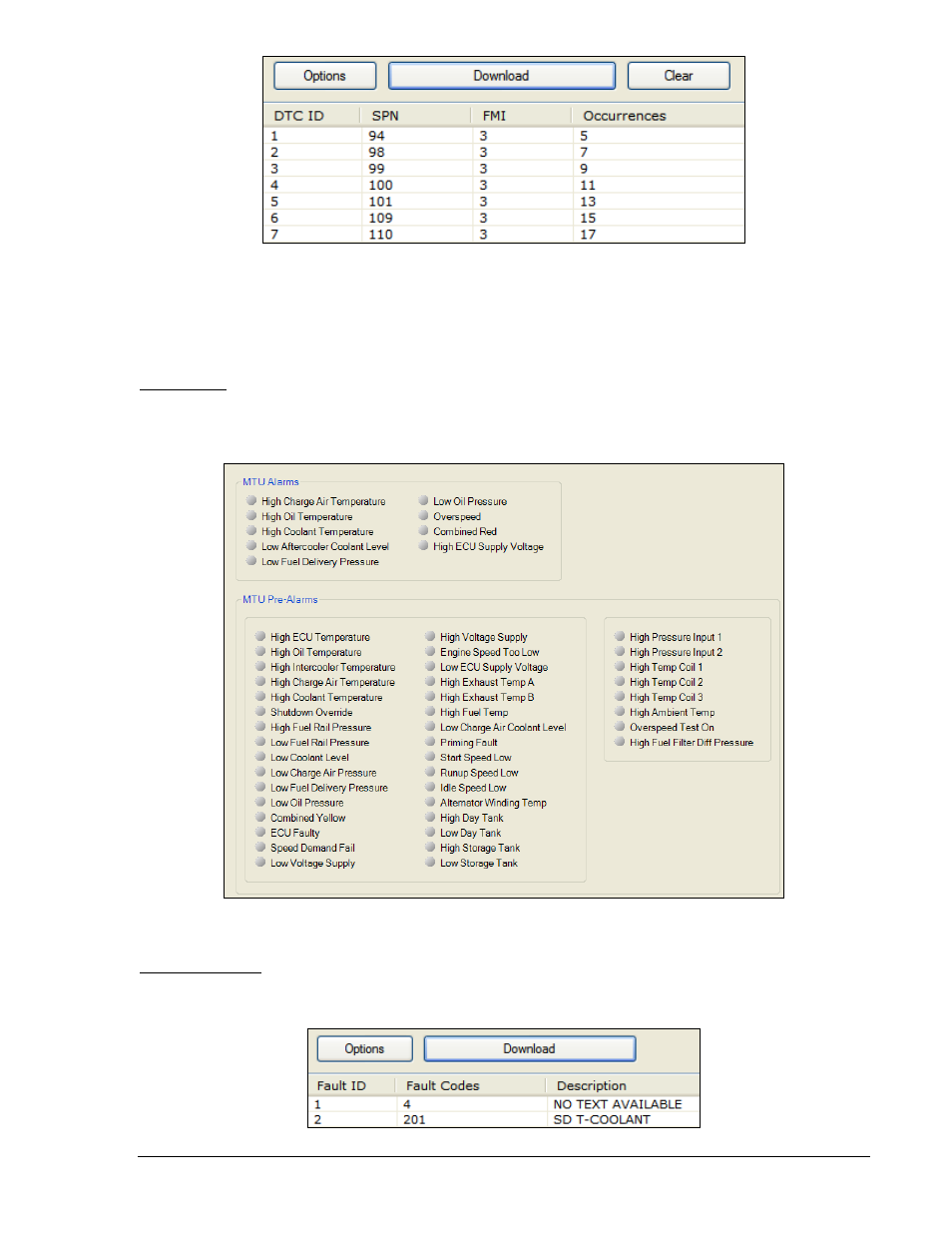

Figure 4-90. Metering, Download DTC

MTU
The MTU reports operating information to the DGC-2020 through the CANbus interface when the ECU is
configured for MTU. Operating parameters and diagnostic information, if supported by the MTU, are
decoded and displayed on these screens.

MTU Alarms
MTU Alarms and MTU Pre-Alarms are reported on this screen. The status is TRUE when the
corresponding LED is red. Refer to Figure 4-91.

Figure 4-91. Metering, MTU Alarms

MTU Fault Codes
MTU Fault Codes can be viewed and downloaded on this screen. Refer to Figure 4-92.

Figure 4-92. Metering, MTU Fault Codes
