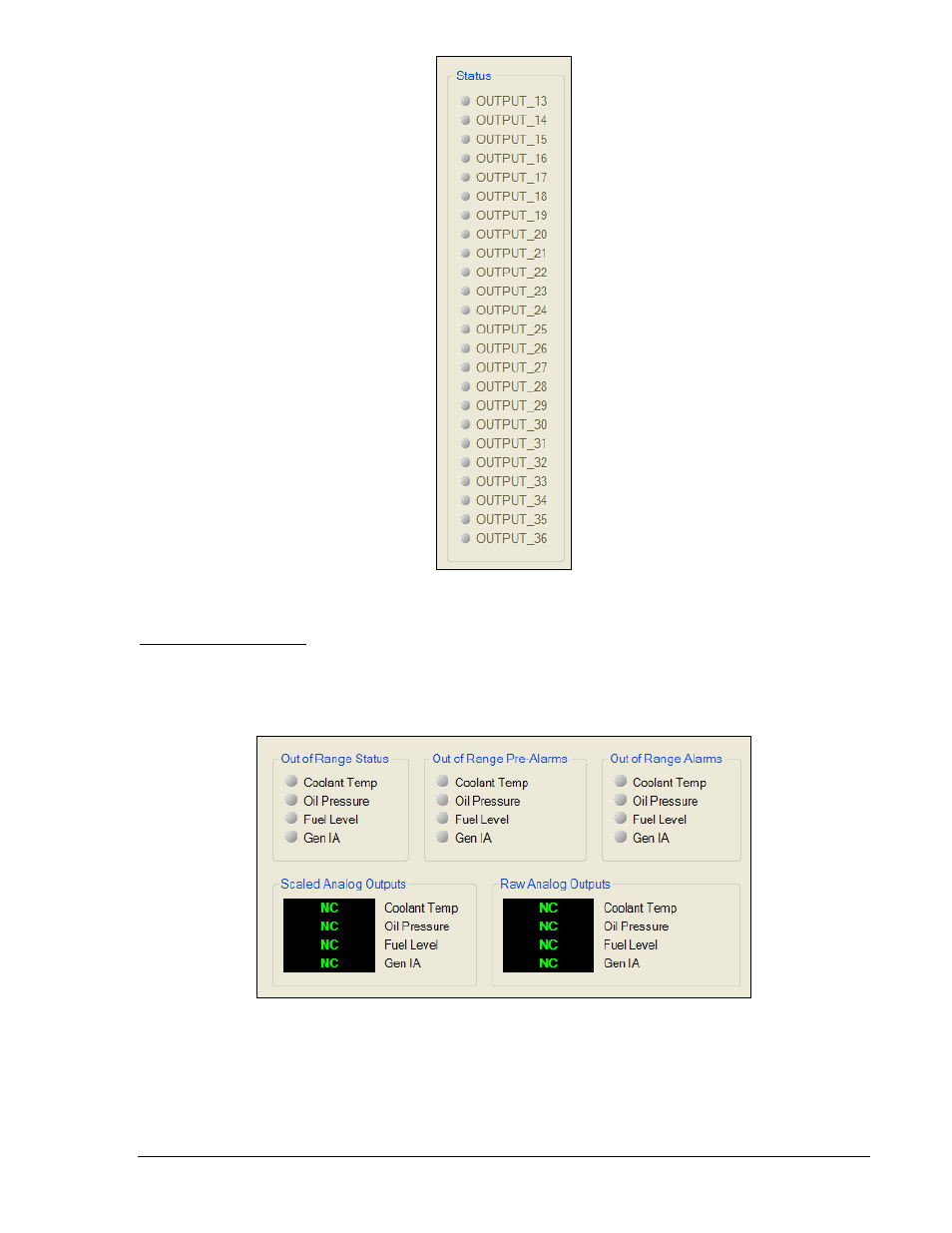

Figure 4-83. Metering, Outputs, Remote Contact Outputs
Remote Analog Outputs
When an optional AEM-2020 (Analog Expansion Module) is connected, the status of the remote analog
outputs, scaled analog output values, and raw analog output values are shown on this screen. The status
is TRUE when the corresponding LED is red. Refer to Figure 4-84.
Figure 4-84. Metering, Outputs, Remote Analog Outputs
Alarms
9400200990 Rev K DGC-2020 BESTCOMSPlus Software 4-81
This screen indicates the status of Alarms, Pre-Alarms, Sender Fail, and Generator Protection. The status
is TRUE when the corresponding LED is red. Alarms and pre-alarms are reset when the DGC-2020 is set
to the Off mode. The Sync Fail at Gen Breaker, Gen Breaker Fail to Open, Gen Breaker Fail to Close,
Sync Fail at Mains Breaker, Mains Breaker Fail to Open, and Mains Breaker Fail to Close pre-alarms can
be reset by pressing the Reset key on the front panel HMI. Refer to Figure 4-85.
