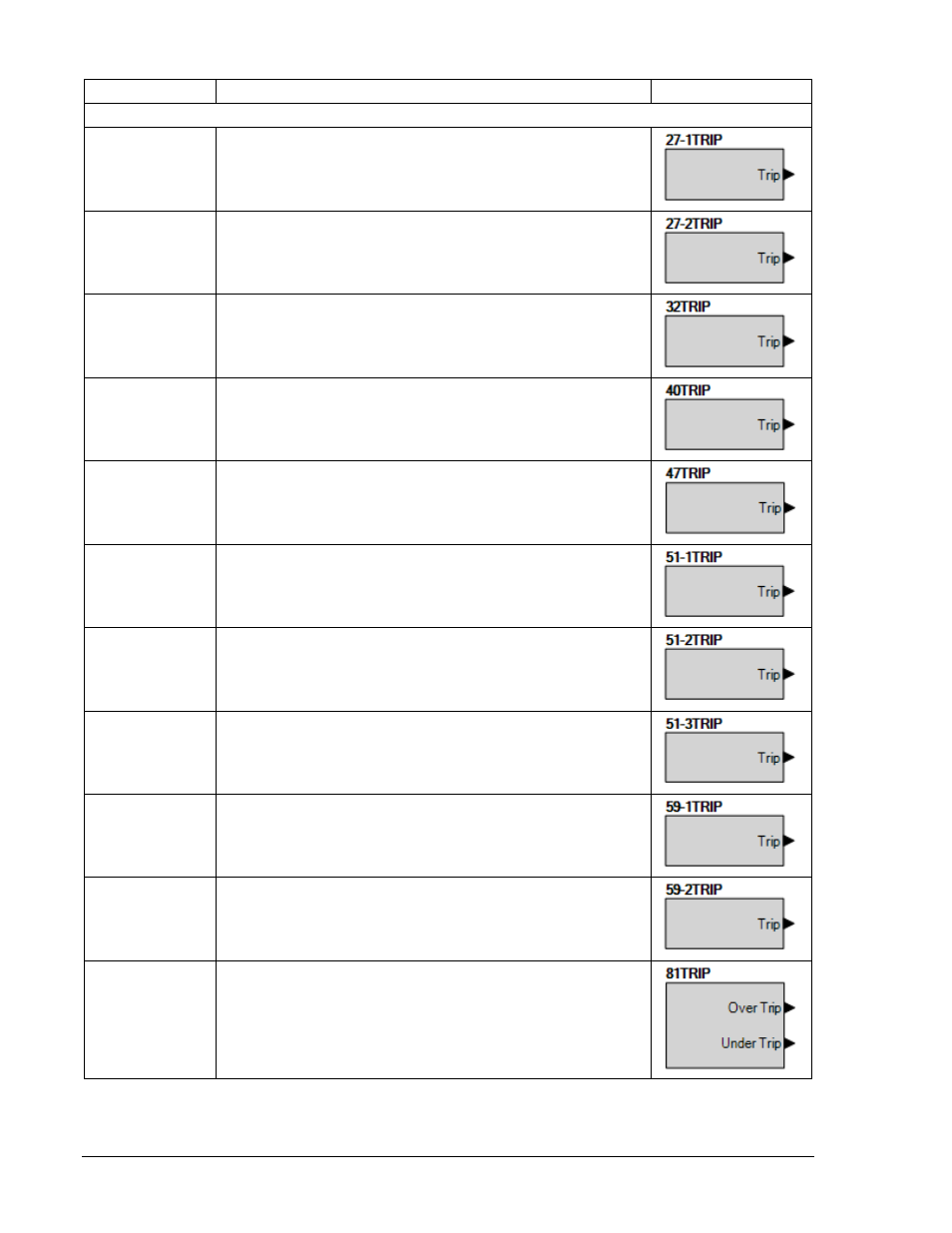

Table 5-3. Elements Group, Names and Descriptions
Name Description Symbol
Protection
27-1TRIP TRUE when the 27-1 undervoltage is in a TRIP condition. Connect
to another logic block input.
27-2TRIP TRUE when the 27-2 undervoltage is in a TRIP condition. Connect
to another logic block input.
32TRIP TRUE when the 32 reverse power is in a TRIP condition. Connect
to another logic block input.
40TRIP TRUE when the 40Q loss of excitation is in a TRIP condition.
Connect to another logic block input.
47TRIP
(Optional)
TRUE when the 47 phase imbalance is in a TRIP condition.
Connect to another logic block input.
51-1TRIP
(Optional)
TRUE when the 51-1 overcurrent is in a TRIP condition. Connect to
another logic block input.
51-2TRIP
(Optional)
TRUE when the 51-2 overcurrent is in a TRIP condition. Connect to
another logic block input.
51-3TRIP
(Optional)
TRUE when the 51-3 overcurrent is in a TRIP condition. Connect to
another logic block input.
59-1TRIP TRUE when the 59-1 overvoltage is in a TRIP condition. Connect
to another logic block input.
59-2TRIP TRUE when the 59-2 overvoltage is in a TRIP condition. Connect
to another logic block input.
81TRIP TRUE when the 81 frequency is in a TRIP condition. Connect to
another logic block input.
5-12 DGC-2020 BESTlogic+ Programmable Logic 9400200990 Rev K
