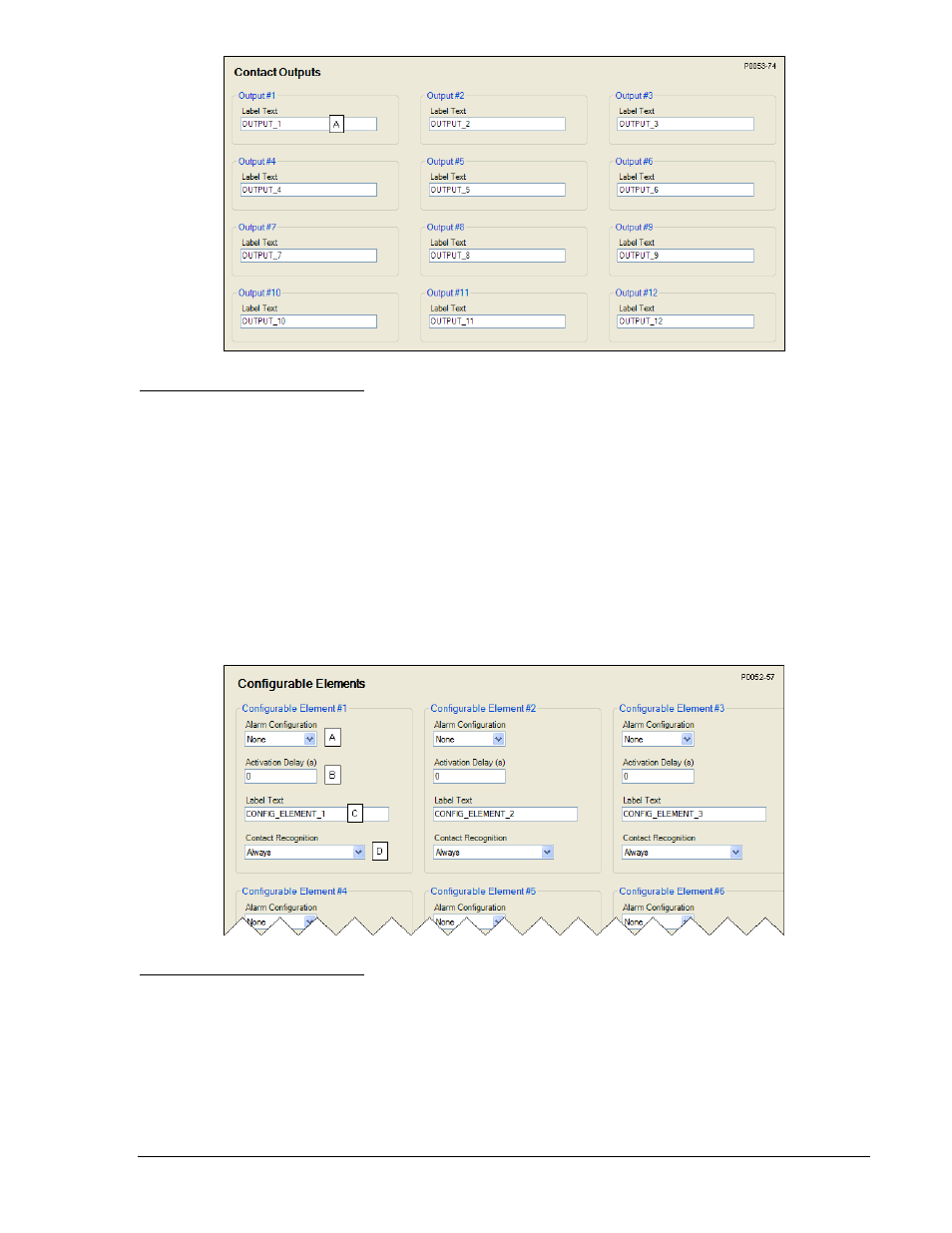

Figure 4-33. Contact Outputs Settings
A Label Text: An alphanumeric character string with a maximum of 16 characters.
Configurable Elements
Each of the 8 elements can be independently configured to annunciate an alarm or pre-alarm
A . A user-
adjustable time delay B can be set to delay recognition of an element. By default, all elements are
configured so that they do not trigger an alarm or pre-alarm.
To make identifying the element easier, each of the elements can be given a user-assigned name
C .
Elements can be recognized D always or while the engine is running only.
Configurable element status is available in BESTlogic+ Programmable Logic when “None” is selected for
Alarm Configuration.
BESTCOMSPlus settings for the elements (DGC-2020, Programmable Outputs, Configurable Elements)
are illustrated in Figure 4-34.
Figure 4-34. Configurable Elements Settings
A Alarm Configuration: None, Alarm, or Pre-Alarm.
B Activation Delay: Adjustable from 0 to 300 s in 1 s increments.
C Label Text: An alphanumeric character string with a maximum of 16 characters.
D Contact Recognition: Always or While Engine Running Only.
Remote Contact Outputs
To make identifying the contact outputs easier, each of the contact outputs can be given a user-assigned
name
A .
