3-7 Assembling the Mounting Brackets (SL-VFM/VHM/VLM)
3-21
In
st
allatio
n
to a Mac
h
ine
3
SL-V-M-NO3-E
1

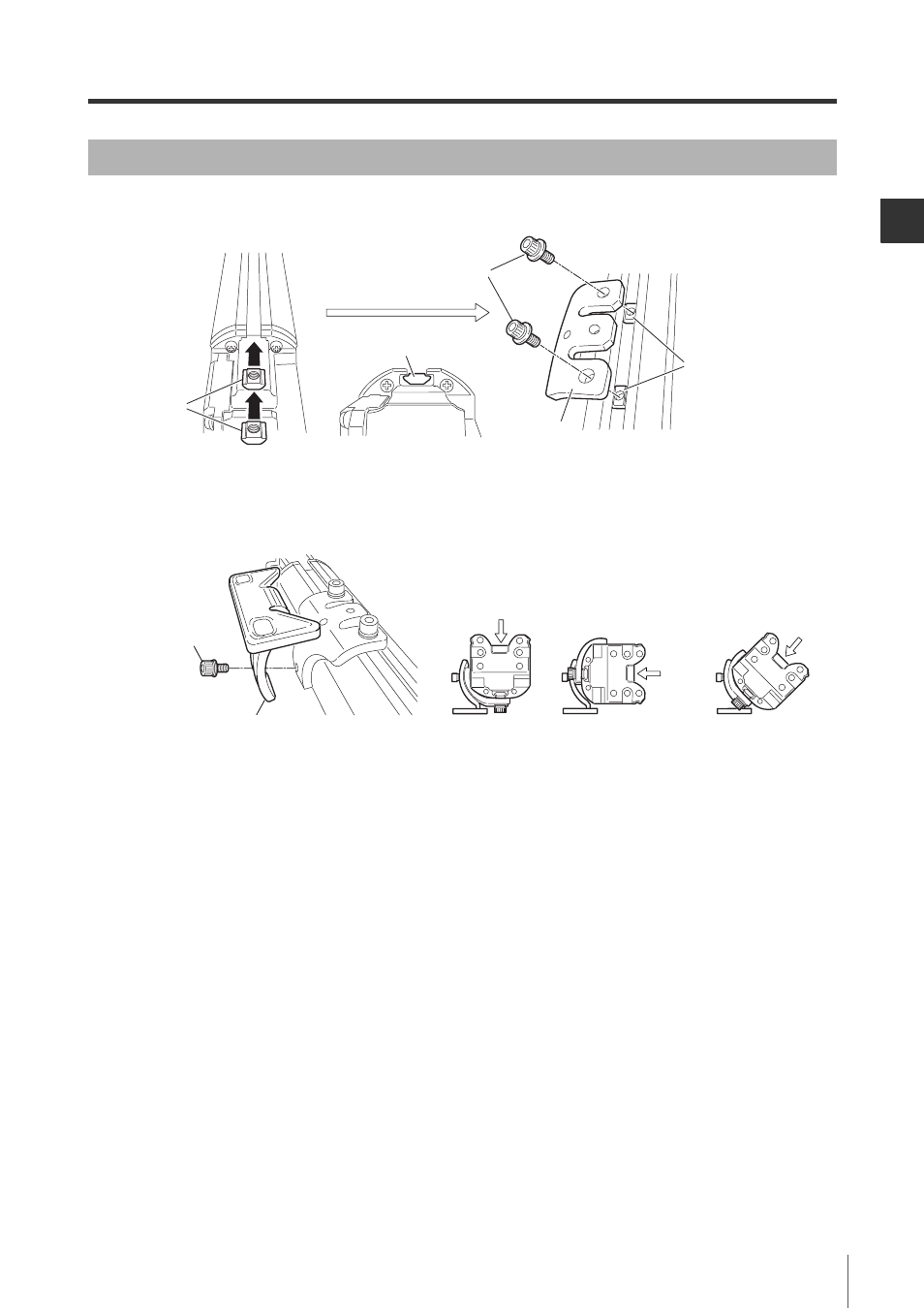

Insert two of the included nuts into the groove of the unit, and secure the base bracket with the two
screws.
2
Install mounting bracket S as shown in the figure below, and secure it with the supplied screw. There are
three types of mounting directions.
Space-saving bracket (OP-84260)
Nut
Be careful with the nut orientation.
Base bracket
Nut
Hexagon socket bolt
(M5, Length: 12 mm,
Width across flat: 4 mm)
Recommended tightening torque: 6.8 N•m
Mounting bracket S
Hexagon socket bolt
(M5, Length: 12 mm,
Width across flat: 4 mm)
Detection surface
Back mounting Side mounting 45 o mounting
Detection
surface
Detection
surface
Recommended tightening torque: 6.8 N•m
