3-8 System Configuration for the Muting Function
3-26
In
st
allatio
n
to a Mac
h
ine
3
SL-V-M-NO3-E


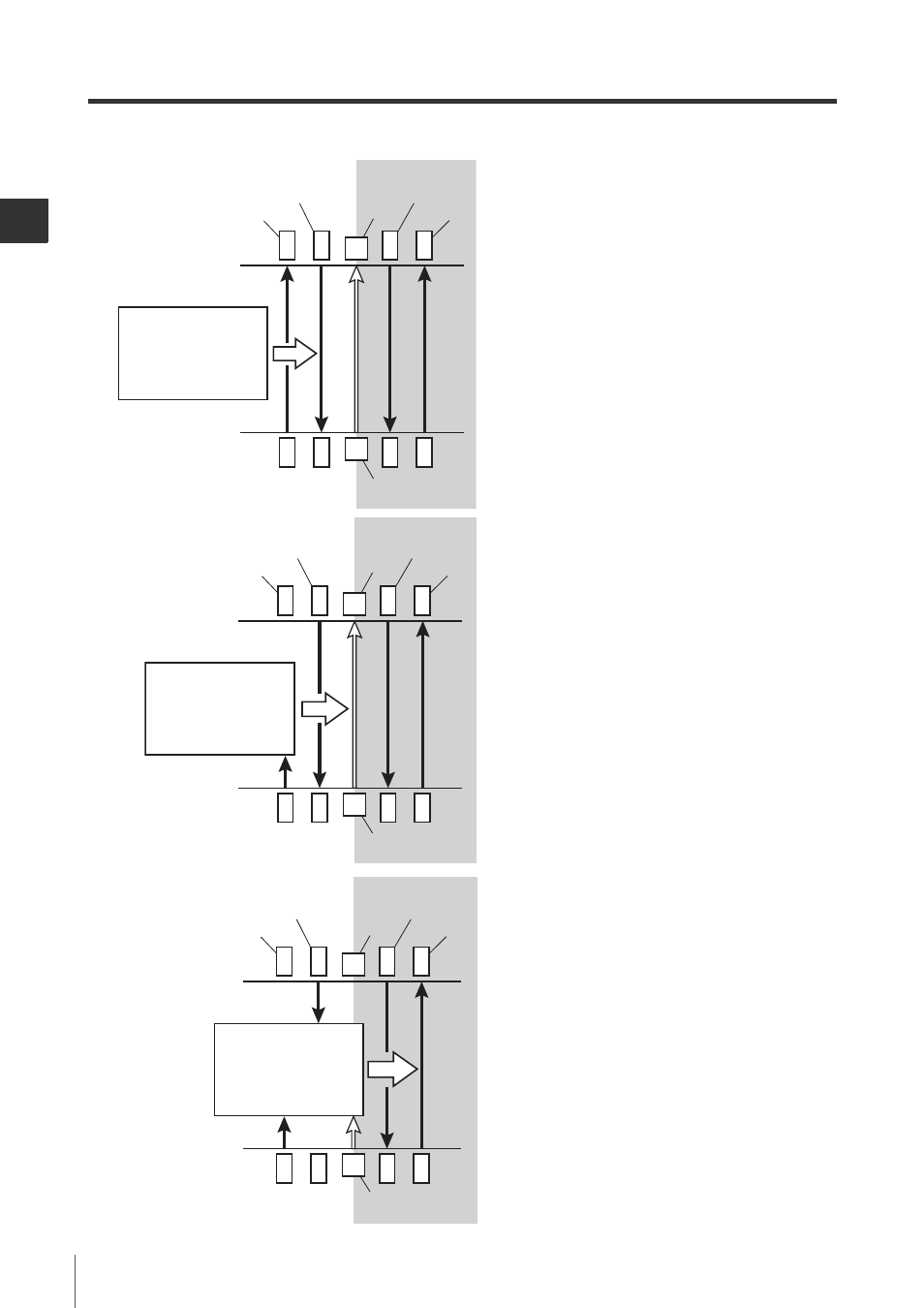

Explanation
(1) The workpiece is approaching to the detec-
tion zone, however, the SL-V does not go to
the muted condition because all of the sen-
sors are OFF. At this point, the SL-V continues
normal operations, and OSSD goes OFF if the
SL-V gets interrupted.
(2) The workpiece interrupts the beam of sensor
A1, and turns ON the output. However, the
SL-V still continues normal operation.
(3) The workpiece interrupts the beam of sensor
A1 first, and then interrupts the beam of A2.
Then, the SL-V goes into the muted condition.
and the OSSD does not turn off even if the
SL-V detects an interruption.
Sensor A1
V
Sensor A2 Sensor B1
Sensor B2
Hazardous zone
Receiver
Beam
axis
Movement
Transmitter
SL-V
Safety zone
Workpiece
Movement
V
Sensor A1
Sensor A2 Sensor B1
Sensor B2
Hazardous zone
Receiver
Beam
axis
Transmitter
SL-V
Safety zone
Workpiece
Beam axis
V
Movement
Sensor A1
Sensor A2 Sensor B1
Sensor B2
Hazardous zone
Receiver
Transmitter
SL-V
Safety zone
Workpiece
