1-2
Options
1-4
Befo
1
SL-V-M-NO1-E
• There are two types of cable: simple function type and multi-function type. The type of cable used deter-
mines the function that can be used. (The number of conductors is different from each other.) There-
fore, the two types of cables cannot be mixed at the same time. Make sure to use the appropriate type
of cable for your applications.
See "Functions and Features" (page 2-1).
See "Cable Connections" (page 3-11).
• Cables with different output types cannot be combined. Be sure to match the PNP or NPN output type
especially when using the unit connection cable (for extension).

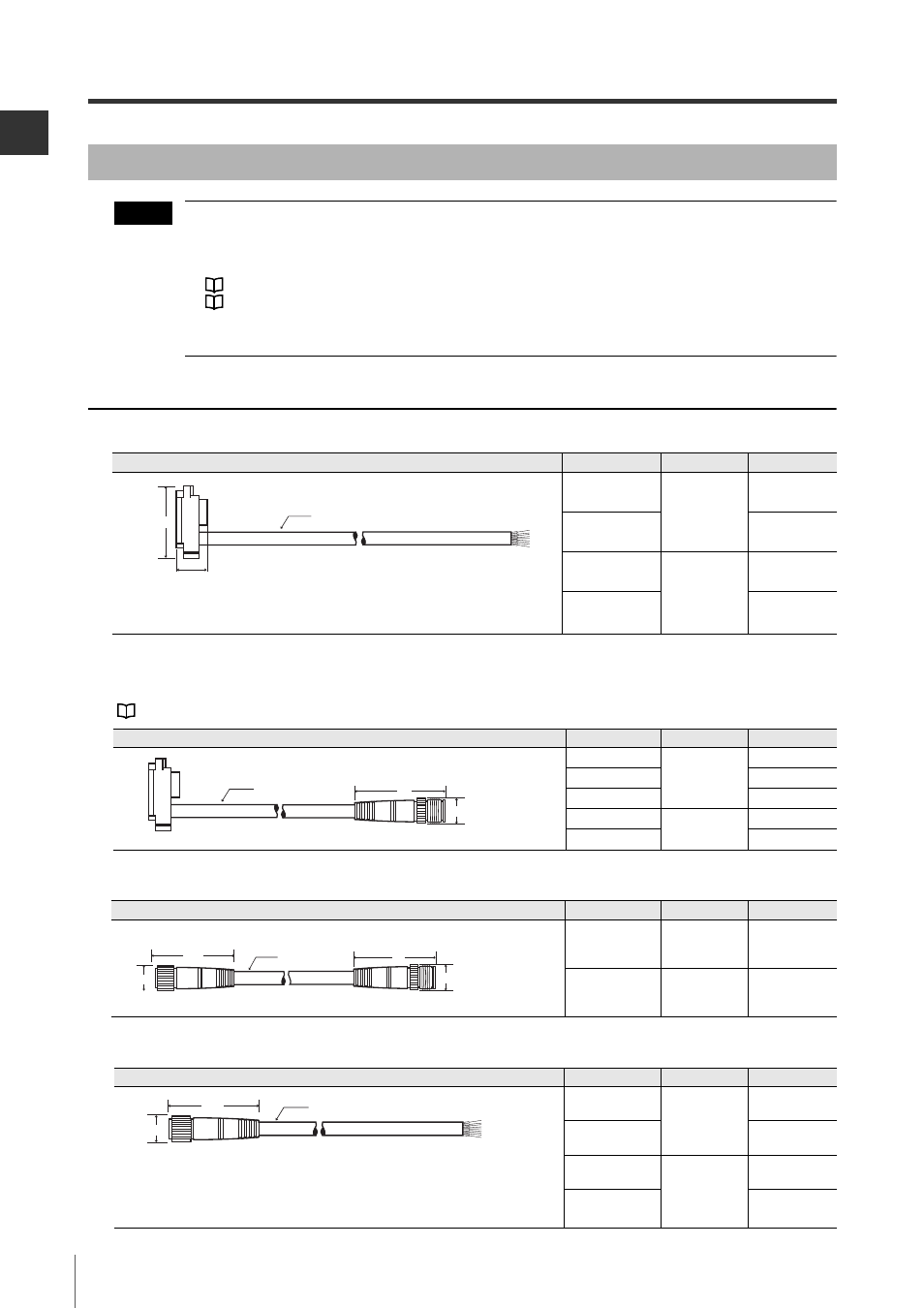

Simple function type
Unit connection cable
Unit connection cable (for extension use)
Used together with the junction cable or extension cable.
For more information about cable length standards, see "Cable length specification" (page 1-6).
Junction cable
Extension cable
Cables
NOTE
Shape
Model
Output type
Length
SL-VP7P
PNP
7 m
SL-VP15P
15 m
SL-VP7N
NPN
7 m
SL-VP15N
15 m
36.1
5.8
14.3
φ
8-wire shielded cable
Brown and blue: AWG24 (nominal cross-sectional area of 0.22 mm
2
)
Others: AWG26 (nominal cross-sectional area of 0.14 mm
2
)
(Transmitter/receiver set)
Shape
Model
Output type
Length
SL-VPC03P
PNP
0.3 m
SL-VPC5P
5 m
SL-VPC10P
10 m
SL-VPC03N
NPN
0.3 m
SL-VPC5N
5 m
47
5.8
φ
14
φ
(Transmitter/receiver set)
M12 connector, male
Shape
Model
Output type
Length
SL-VCC10P
PNP
10 m
SL-VCC10N
NPN
10 m
41.5
14
5.8
φ
φ
47
14
φ
(Transmitter/receiver set)
M12 connector, male
M12 connector, female
Shape
Model
Output type
Length
SL-VC5P
PNP
5 m
SL-VC10P
10 m
SL-VC5N
NPN
5 m
SL-VC10N
10 m
41.5
14
φ
5.8
φ
(Transmitter/receiver set)
8-wire shielded cable
Brown and blue: AWG24 (nominal cross-sectional area of 0.22 mm
2
)
Others: AWG26 (nominal cross-sectional area of 0.14 mm
2
)
M12 connector, female
