3-6 Assembling the Mounting Brackets (SL-VF/VH/VL)
3-19
In
st
allatio
n
to a Mac
h
ine
3
SL-V-M-NO3-E
4

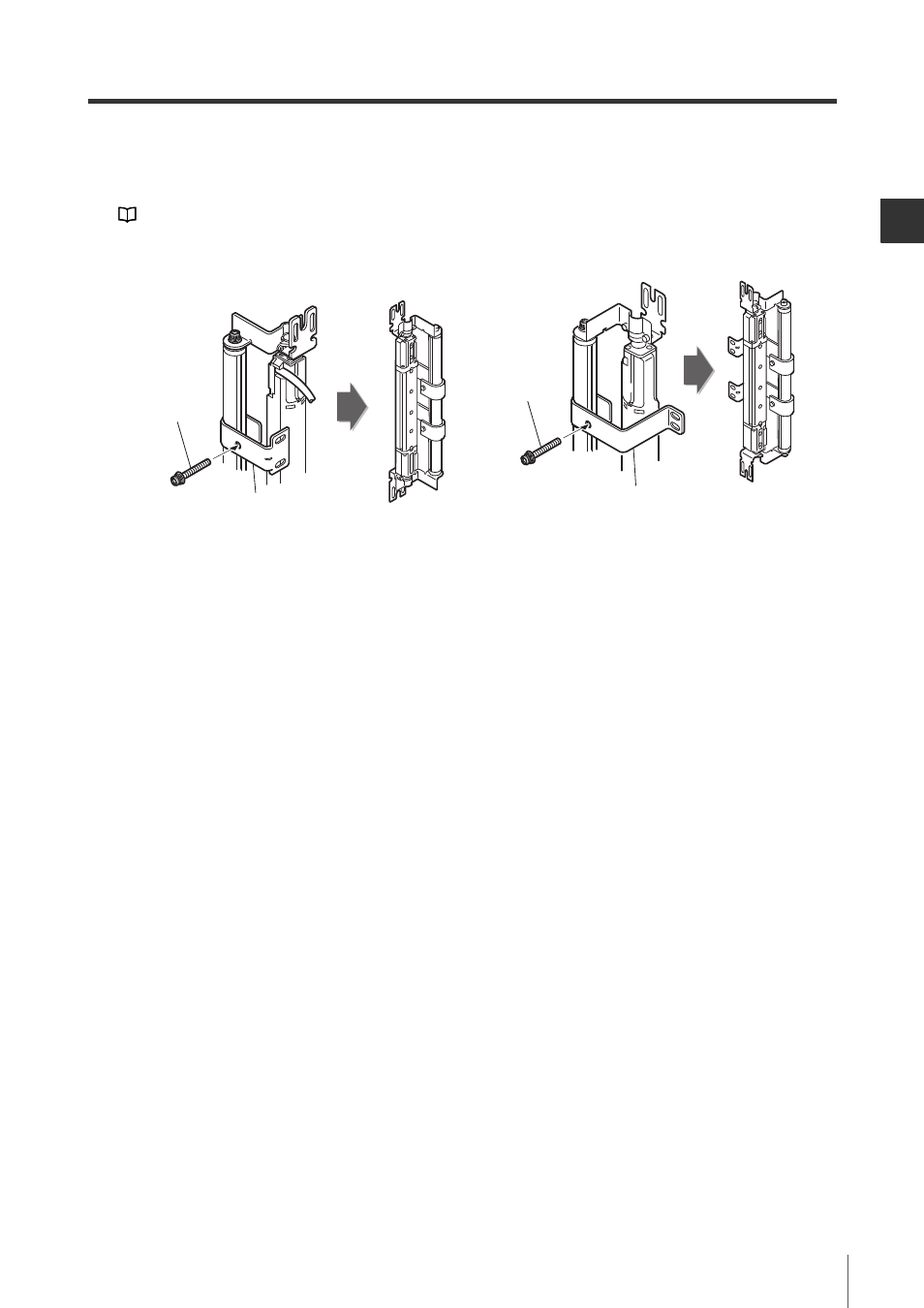

The intermediate support brackets for the protection bar can be used, if necessary. The hexagon socket bolts
provided must be used to secure the intermediate support brackets to the protection bar.
For information about the required number of intermediate support brackets for protection bar, see "Dimensions
(SL-VF/VH/VL)" (page 7-9).
Hexagon
socket bolt
(width across
flats: 5 mm,
length 30 mm)
Intermediate
support bracket
for protection bar
(for back mounting)
Hexagon
socket bolt
(width across
flats: 5 mm,
length 30 mm)
Intermediate
support bracket
for protection bar
(for side mounting)
Back mounting Side mounting
