3-2

In

st

allatio

n

to a Mac

h

ine

3

SL-V-M-NO3-E

3-1

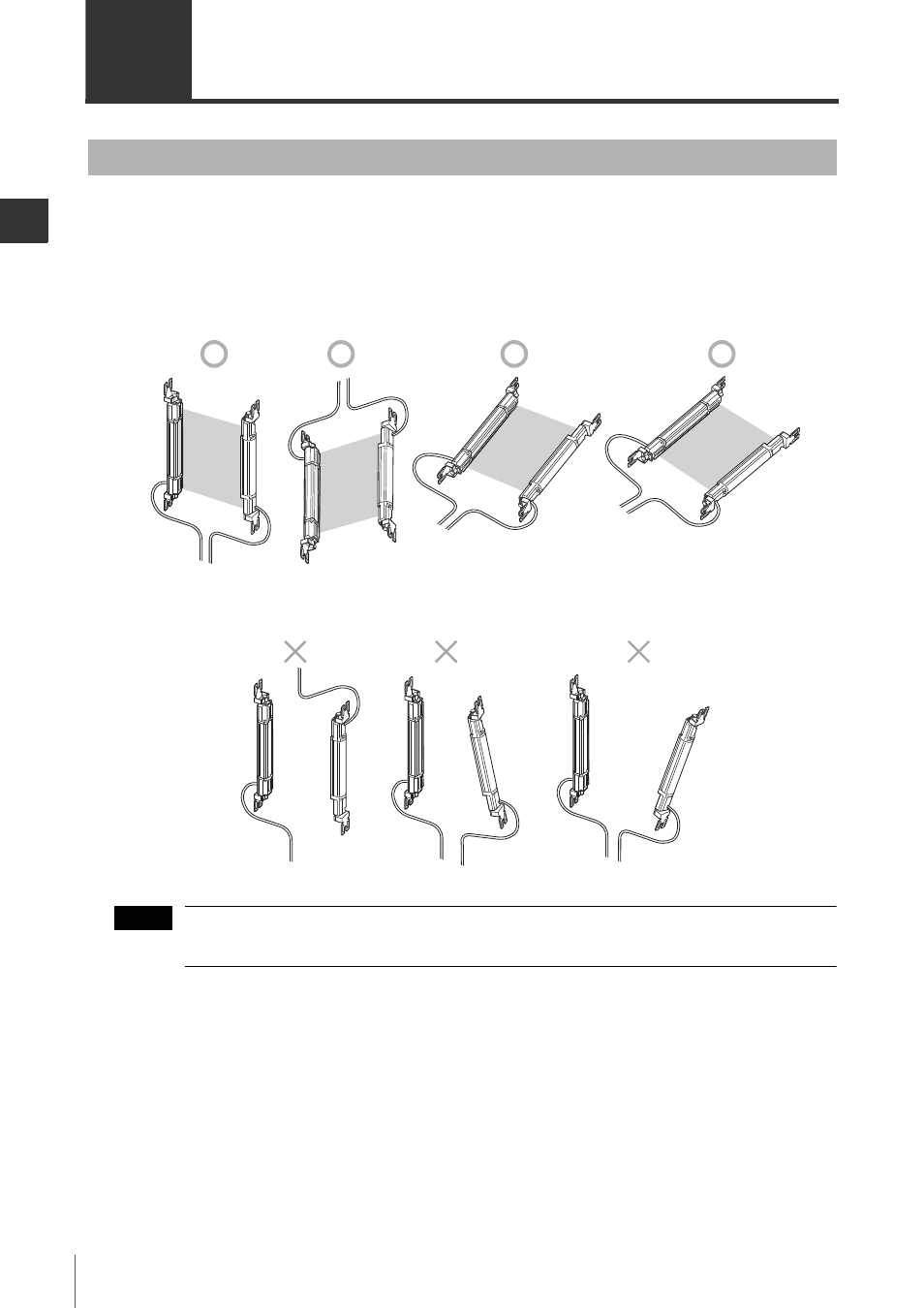

Correct Installation Method

• The SL-V receiver and transmitter must be aligned in the same plane. The cables must exit from the

same end of the light curtain.

• The SL-V must be installed so that the indicators on the transmitter and receiver face one another and

are located at the same height.

Correct mounting orientation

Incorrect mounting orientation

Make sure that the transmitter and receiver are of the same type (eg. SL-VxxH, or SL-VxxL) and size (eg.
SL-VxxHT and SL-VxxHR) before installation. Never mix sizes or types.

Transmitter and receiver orientation

NOTE
