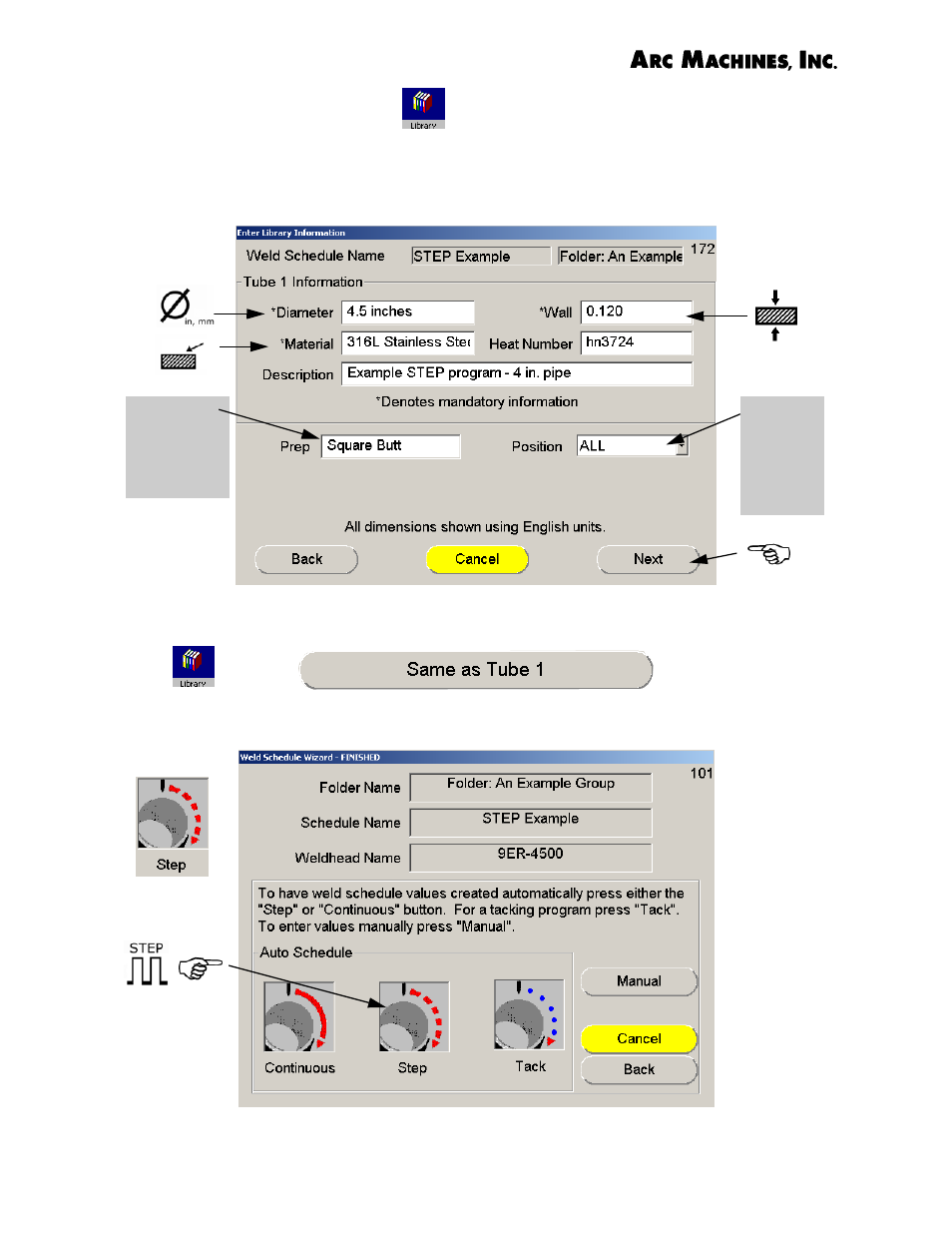

Enter Library Information
You must enter the diameter and wall thickness at the weld joint and the
material. Heat number and a description of the weld are optional. Square butt
is the default end prep. Press Next when finished.
If the second weld component is identical to the first, press the Same as
Tube 1 button. Otherwise enter Library information for second component.
Touch STEP on the Weld Schedule Wizard Screen.
Select
welding
position
from the
pull-down
menu.
Enter the
correct prep
if it is not a
square butt
joint.
