Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 4. Page 13.
Rev. A
Pendant. A remote pendant may be connected to the Model 307
to initiate weld sequence at a distance from the power supply. See
page 11.
Foot Control. A Foot Control or Foot Switch may
be connected to the Model 307 for use with a
manual torch.

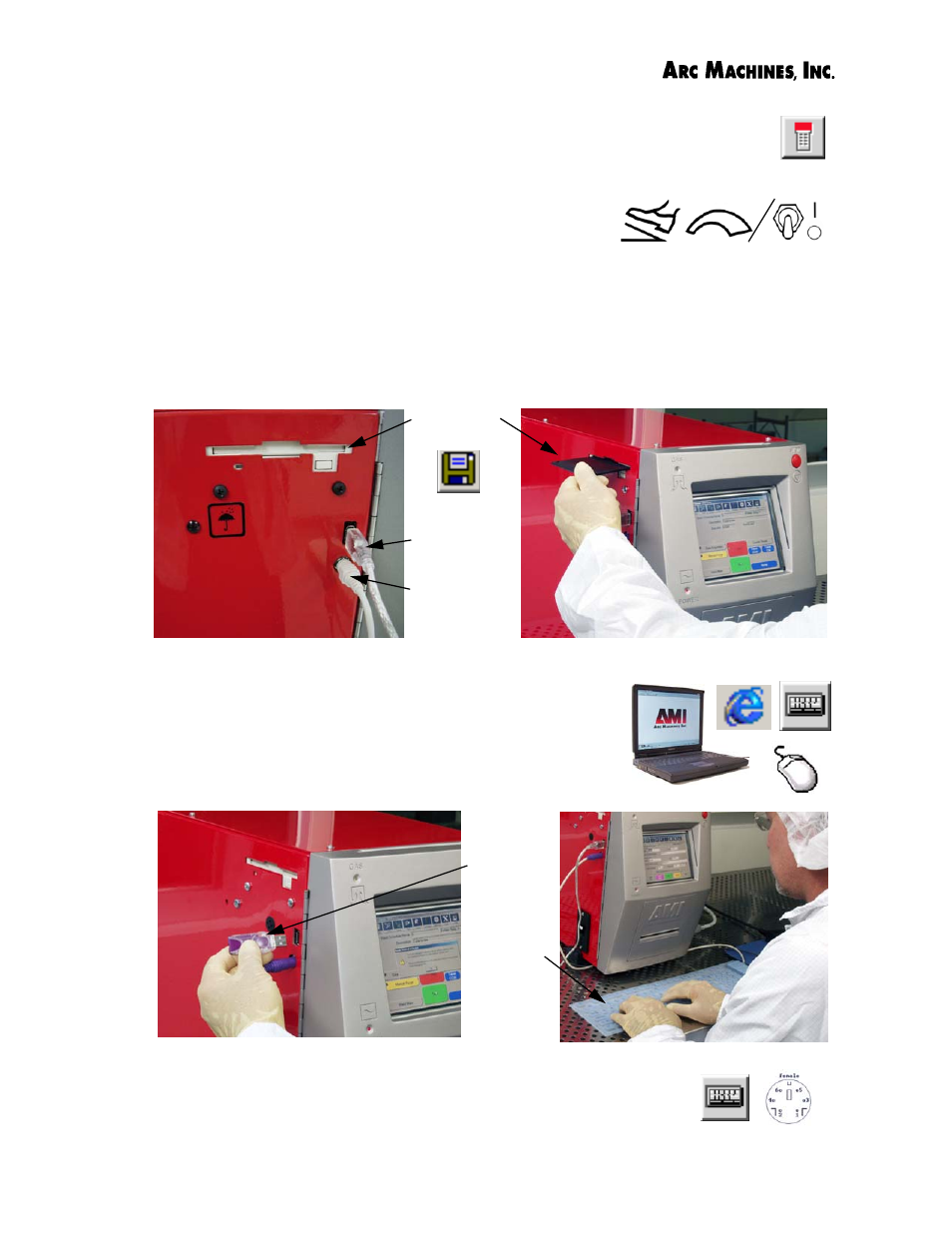

I/O Devices: (Memory Capacity 20 GB)
The Model 307 Floppy Disk Drive
The Model 307 has a floppy disk drive that can be used for downloading
Weld Data Records or for loading software onto the 307.
Model 307 USB Connector
The Model 307 USB connector can accept input
from any USB device including a USB keyboard,
USB mouse, or USB hub. A USB hub can accept
input from several USB devices simultaneously.
PS2 Keyboard Connector
The PS2 Keyboard connector may be used to connect a
standard PS2 keyboard to the Model 307.
Floppy disk
drive
USB
Connector
PS2 Keyboard
connector
USB
memory
stick
PS2
keyboard
