Electrode Diameter
Electrode diameters differ in relation to the amount of amperage being con-
ducted. A weld head’s specific electrode diameter(s) can be found in the weld

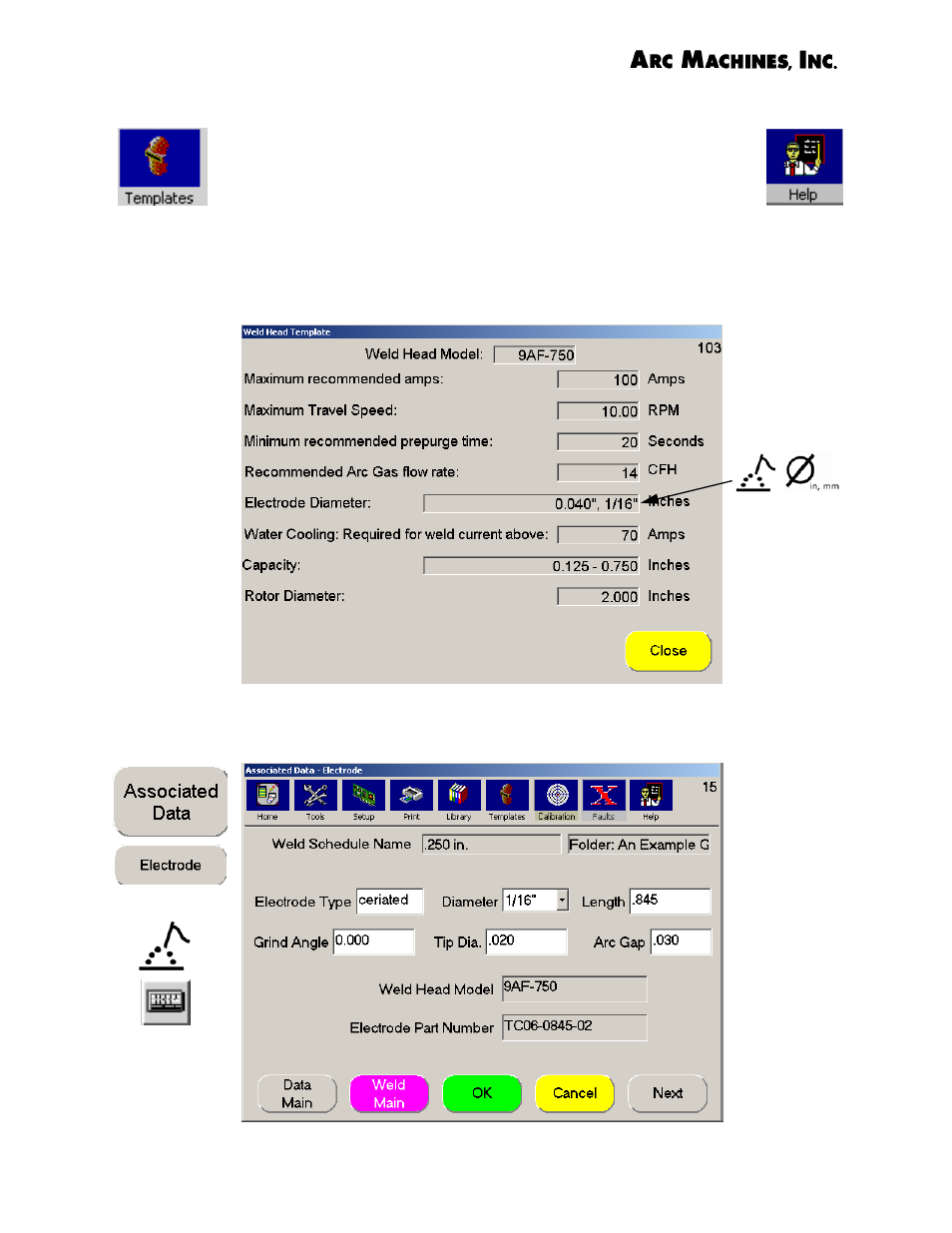

head template. Touch the Templates Icon on the toolbar. Electrode diame-
ters for the weld head are shown. Touch the Help Icon on the Toolbar for
additional electrode information.
Electrode Data may be saved as part of a weld record. From the Main Weld
Schedule screen select Associated Data. Enter electrode information from
the keyboard.
