Arc Machines 307 - Manual (Page 43)

Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 4. Page 9.
Rev. A
MANUAL TORCH INSTALLATION
The optional manual TIG (GTAW) torch (307-MT),
ground cable and foot control is available for use with
the Model 307 Power Supply for tack welding or man-
ual TIG welding. (See diagram on page 10.) Optional
extension cables are available for both the torch and
foot controller.
Important: Stubout Mode must be set to "OFF".
OR
Foot Controller
Foot Switch

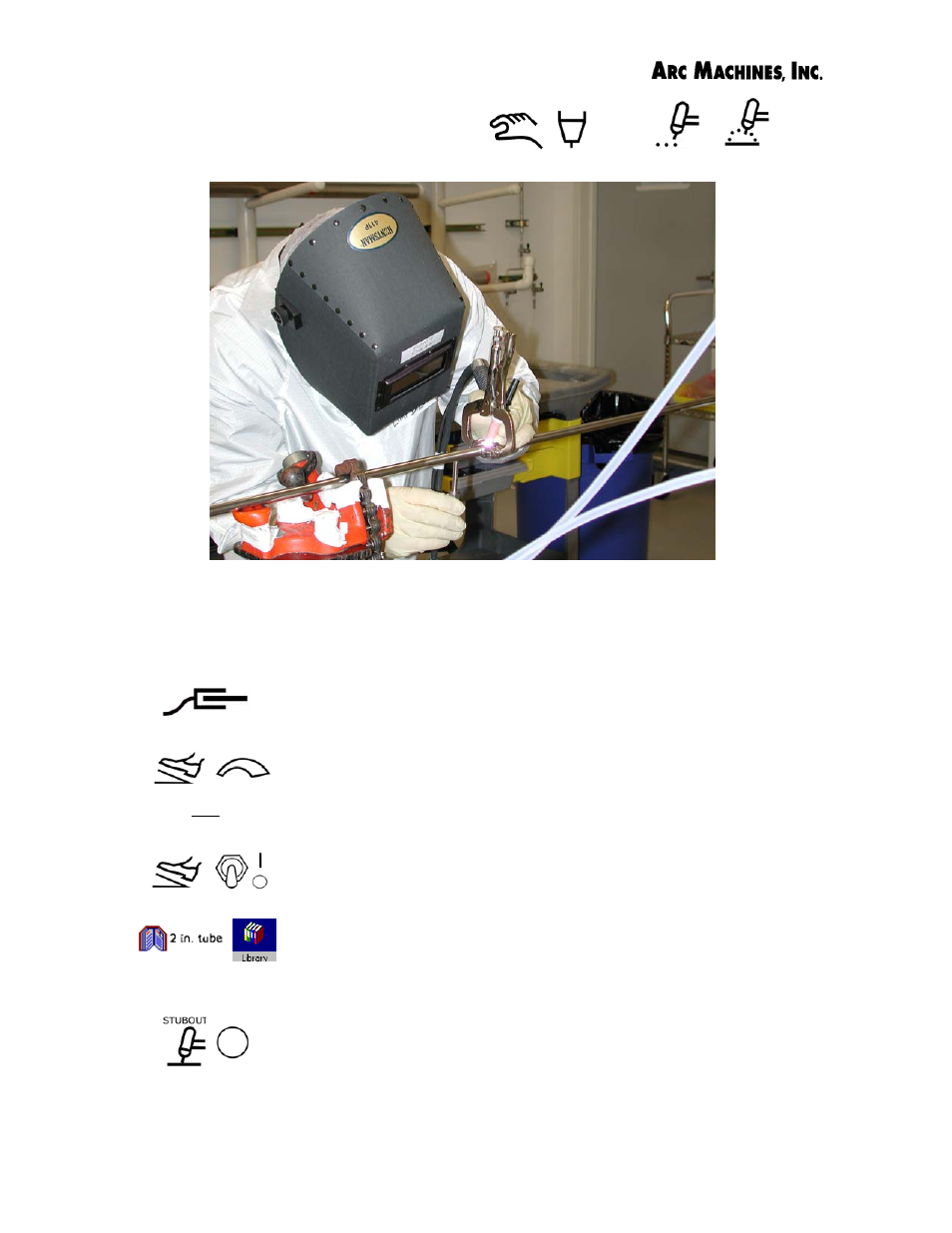

Tack welding with a manual GTAW torch in a high-purity
application. Photo courtesy of the Murray Company Mechanical
Contractors.
Ground
