Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 8. Page 2.
Rev. A

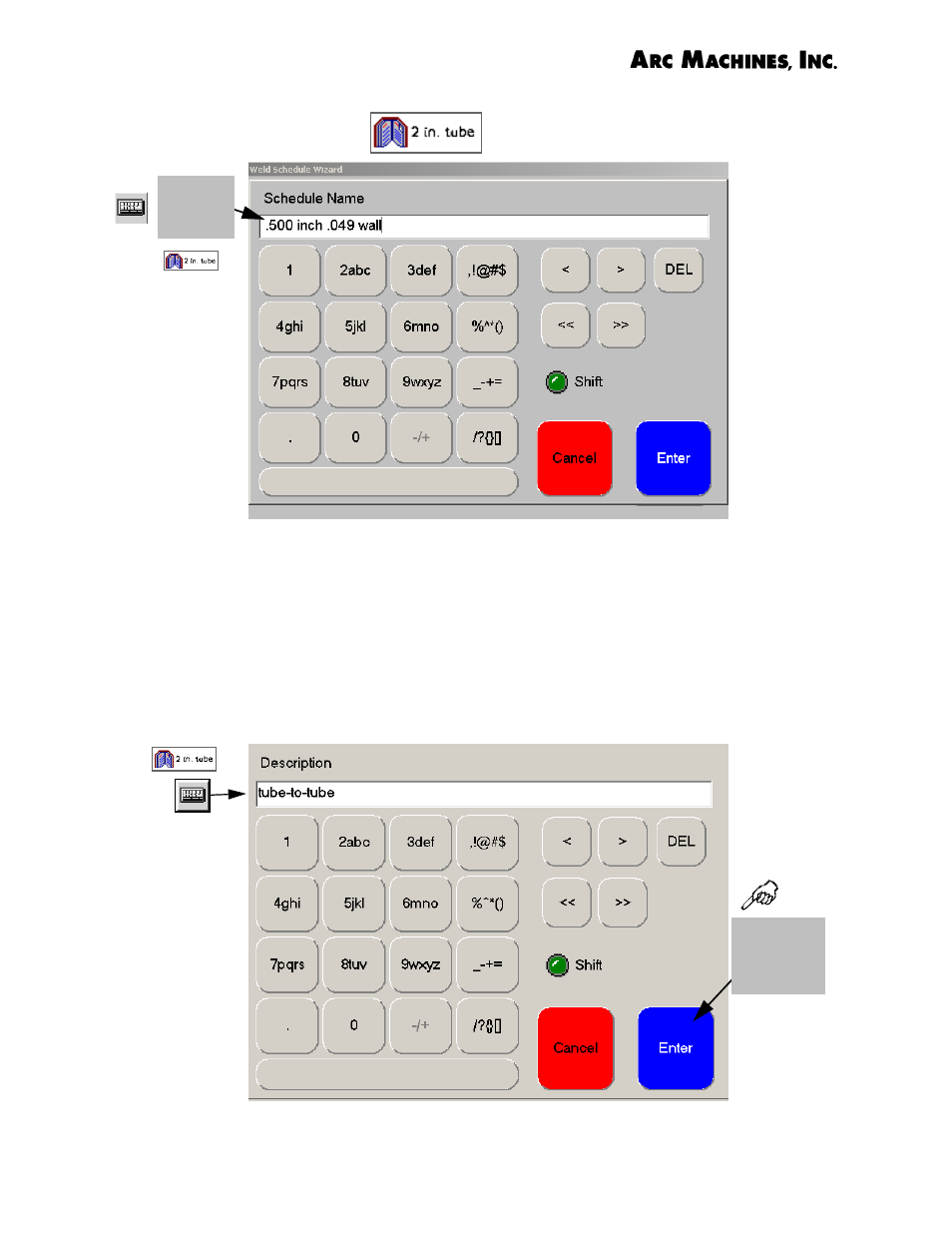

Weld Schedule Name:
To type in the weld schedule name from the keyboard, touch character key
once for the number shown on the key or rapidly in succession until the
desired letter appears, i.e. two times for a “d” and three times for an “e”, etc.
Selecting the Shift key will result in capital letters. Press Enter when name is
complete. Caution: Do not use illegal characters: \/’!@#*&%?: as charac-
ters in schedule names. The 307 will not accept these characters.
Type in the optional Description from the keyboard as shown below.
Type in
schedule
name
Press Enter
when name
is complete
