Arc Machines 307 - Manual (Page 175)

Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 18. Page 8.
Rev. A
Weld Schedule -Linear graph

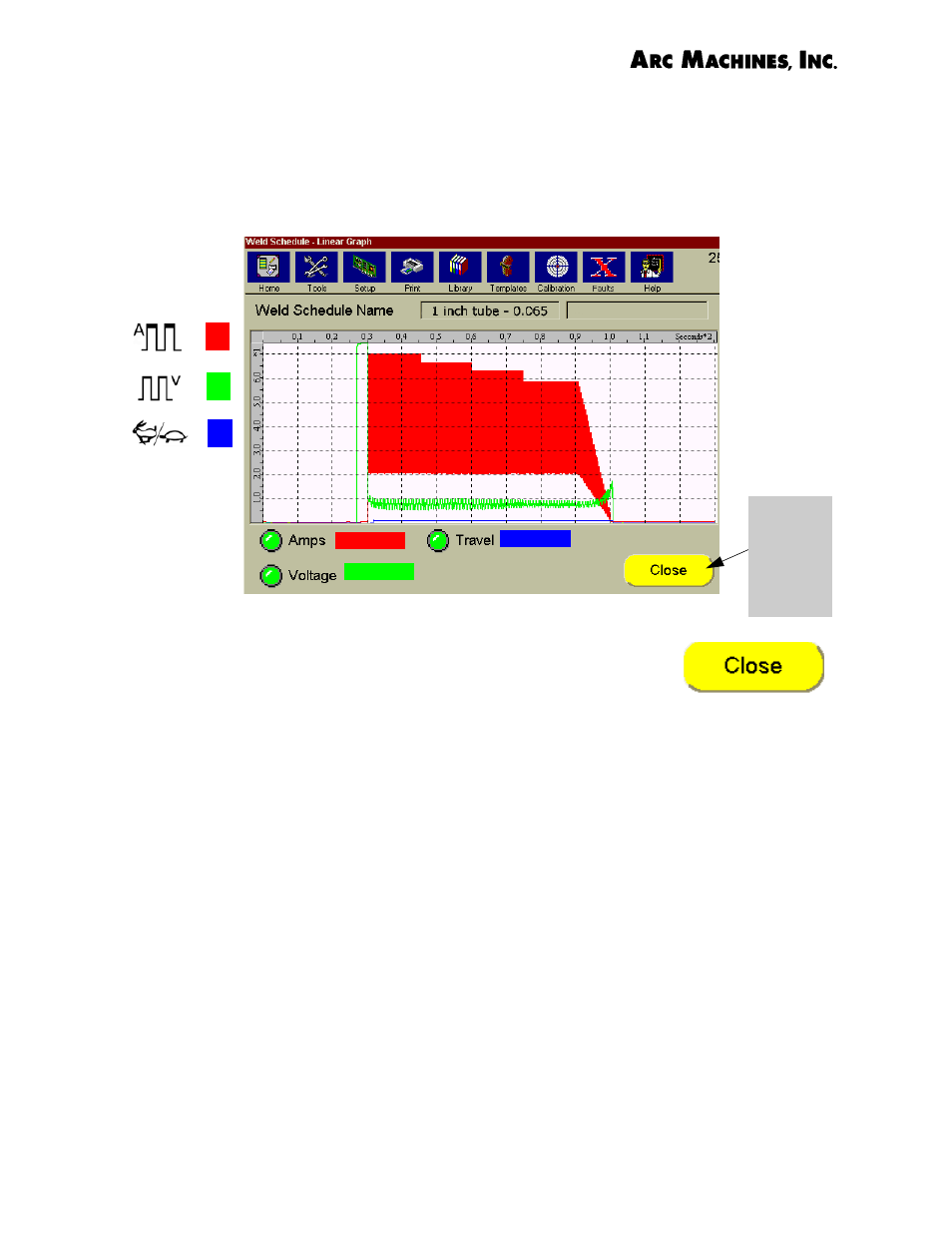

If Linear graph is selected for In Sequence Display and Data Acquisition is
active, streaming data for amps, volts and travel speed will be displayed as
moving data points during the weld sequence. After the end of the weld, the
data will be assembled into a Linear Graph as shown below.
Touch the Close button to return to the weld schedule.
Touch the
Close
button to
return to
the weld
schedule.
