Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 8. Page 6.
Rev. A

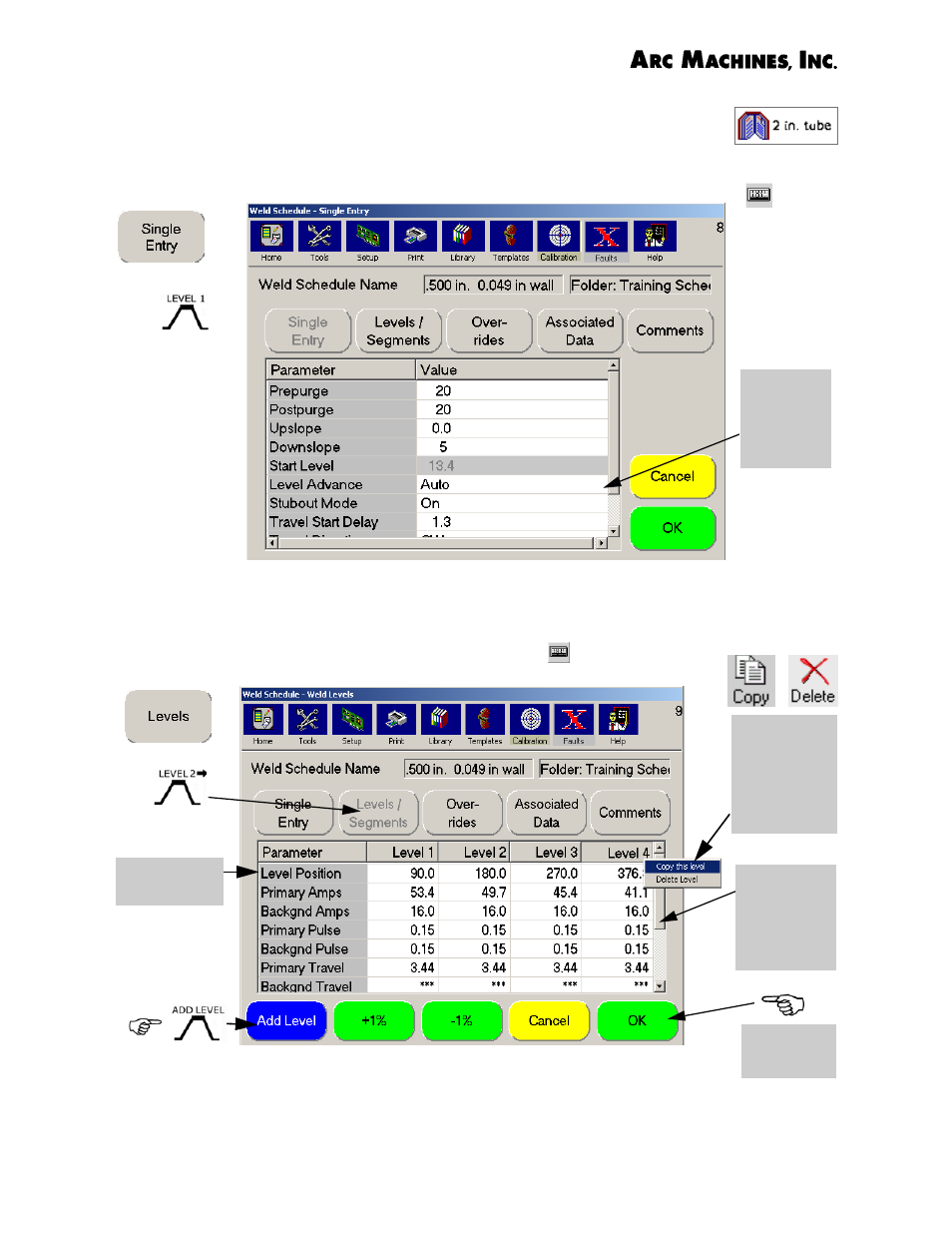

Weld Schedule - Single Entry. This screen shows autogener-
ated weld parameters for those items that are entered only
once for the entire schedule. To modify a parameter, select it
by touching and use the keyboard to enter the new value.
Weld Schedule - Weld Levels Screen. Weld parameters which may be
changed in any level. Use scroll bar to view additional weld parameters. To
modify a weld parameter, touch the parameter you wish to change and enter
the modified parameter from the keyboard.
Scroll Bar-
scroll down
to see other
weld
parameters
Use the
Scroll Bar
to view
additional
parameters
Level
Position/Time
Touch OK
when done
Use pull-
down menu
in each level
to copy or
delete that
level
