Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 10. Page 1.
Rev. A
C
hapter 10. Associated Data
-
W
eld record keeping is an important part of the welding operation for
many industries. The Model 307 is designed to collect data for each weld
stored as weld records that may be useful information at a later date.

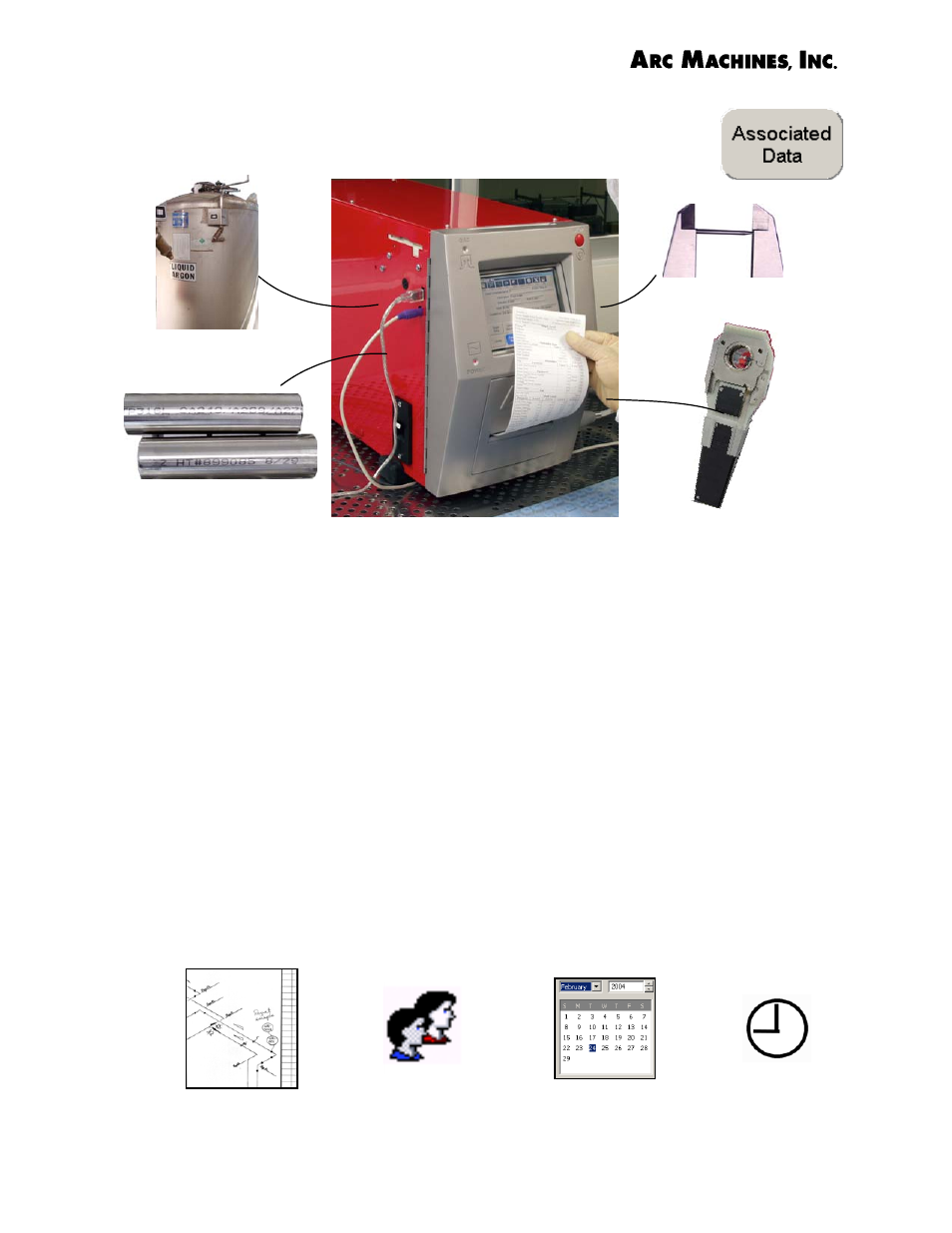

Associated Data - Pressing the Associated Data button from the Weld
Schedule - Main Screen brings up the Associated Data - Main Screen
(shown on the next page). Collectively, buttons on this screen open screens
which provide a way to input important information about the weld schedule.
This information can be stored and retrieved as part of the weld record.
Information on the tubing or other weld component, equipment, gas,
electrode, comments about the weld, data stream, and optional wire may
be entered. These weld parameters are not acted upon by the power supply,
but have an effect on the weld and are considered to be non-programmable
variables. Additional information such as ISO drawing number, Operator
name, date and time of weld may also be documented by the Model 307.
Gas
Electrode
Equipment
Materials
Date Name of welder ISO Drawing Number Time
