Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 13. Page 3
Rev. A
Manual Weld Head Calibration

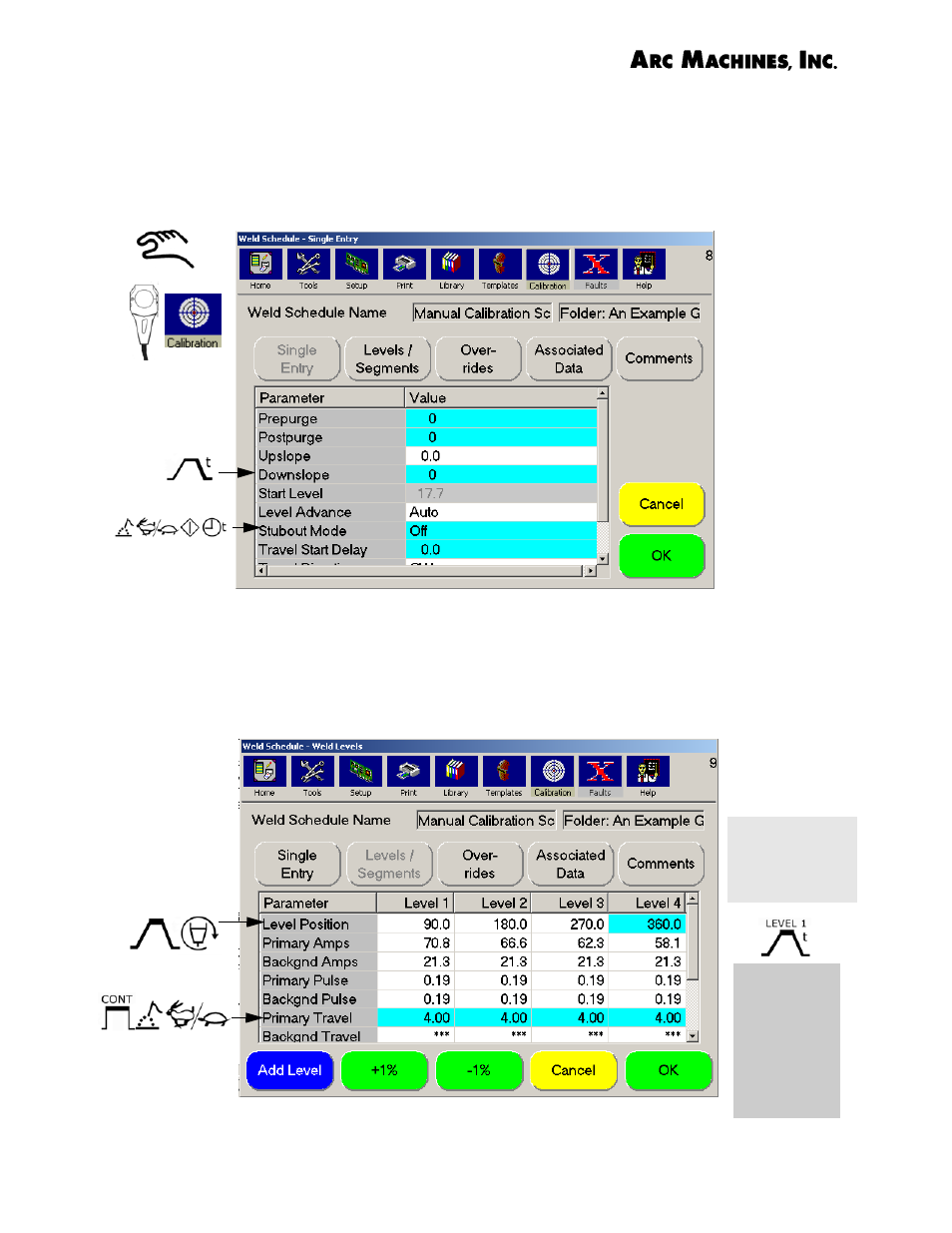

To calibrate a weld head manually, touch the Calibration Icon , select Manual
and then use a program with appropriate RPM and time for the weld head as
shown in Table 1. At a rotational speed of 1 RPM, the rotor should com-
plete one Revolution (360°) in 60 seconds.
The manual calibration program should have no travel start delay (0.0
sec) and no Downslope time (0.0 sec). Calibration programs must be run
in Test Mode Only. If the weld head goes too far or comes up short, adjust
the screw on the calibration pot counter clockwise (CCW) to slow it down or
clockwise (CW) to speed up the rotation. Repeat as necessary.
Schedule for
weld heads
calibrated at 4
RPM for 15 sec.
If the travel
speed is
correct and
degrees set
to 360°, time
will be
entered
automatically
