Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 8. Page 4.
Rev. A

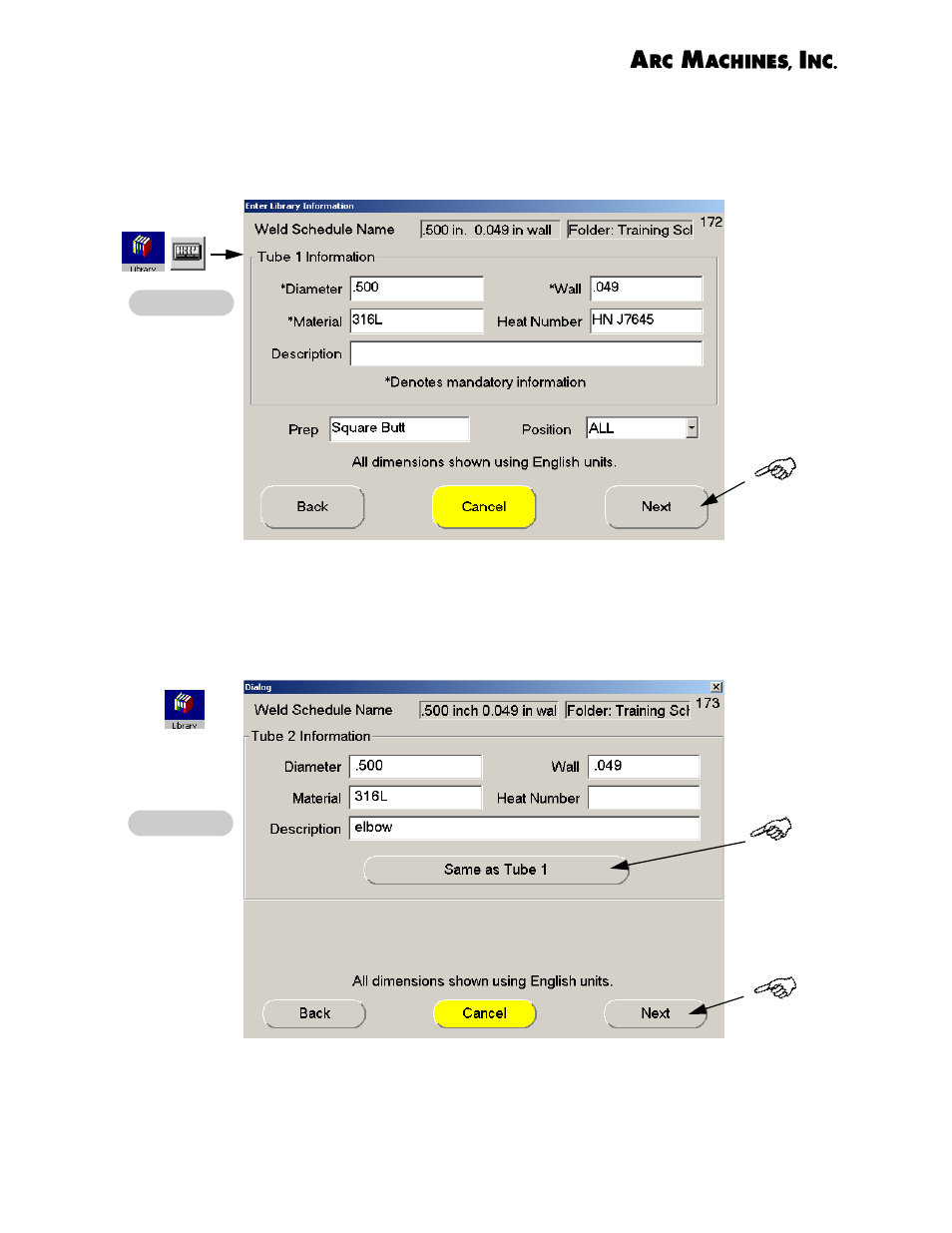

Type in the information for each field and press Enter. Repeat until all the
mandatory and desired information for Tube 1 has been entered. Then touch
Next. The Dialog screen for entering Tube 2 information will appear.
Dialog screen. If the information for Tube 2 is identical to that of Tube 1,
press the Same as Tube 1 button. If not, fill in information for tube, fitting
or other weld component from the keyboard. Press Next when Library
Information has been completed.
Tube 1
Tube 2
