Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 9. Page 1.
Rev. A
C
hapter 9. Manual Creation of 307 Weld
Schedules
T
his section is for those programmers and supervisors who wish to develop
their own weld schedules manually. It explains the basis of weld parameters
such as welding currents and RPM and provides formulas for their calculation.
The example of 0.500 in. O.D., 0.049 in. wall (12. mm, 1.24 mm ) tubing
used for the autogenerated (CONT) schedule in Chapter 8 will be used to
illustrate manual weld schedule development.

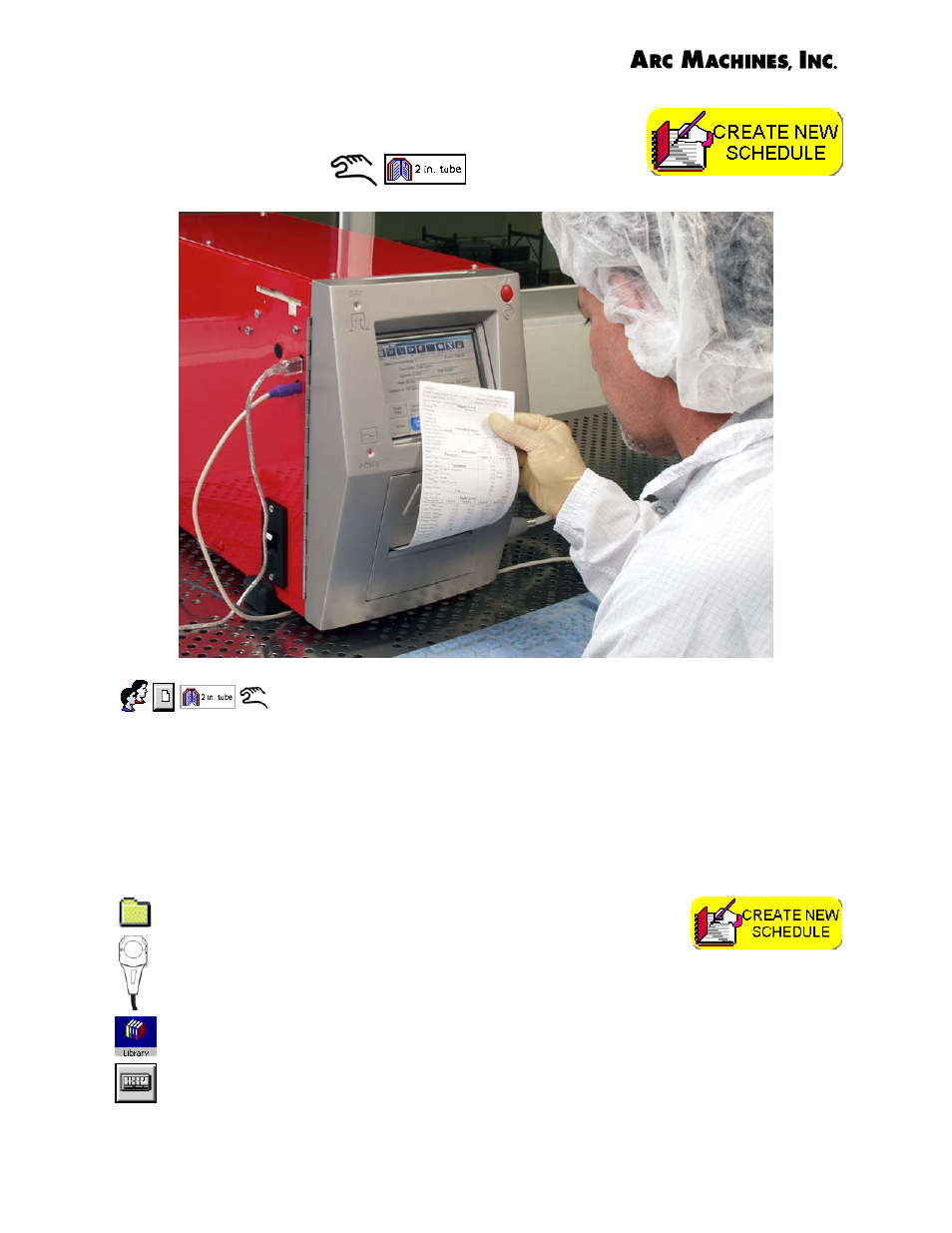

From the Opening Screen select the Create New
Schedule button. The weld head selection menu will
appear on the Weld Schedule Wizard Screen. Select
the Units of Measure. Select the folder from the pull-down menu,
type in the weld schedule name from the keyboard and select the
9AF-750 weld head. Press Next and enter the Library information
from the keyboard as shown on pages 1 to 6 of Chapter 8.
