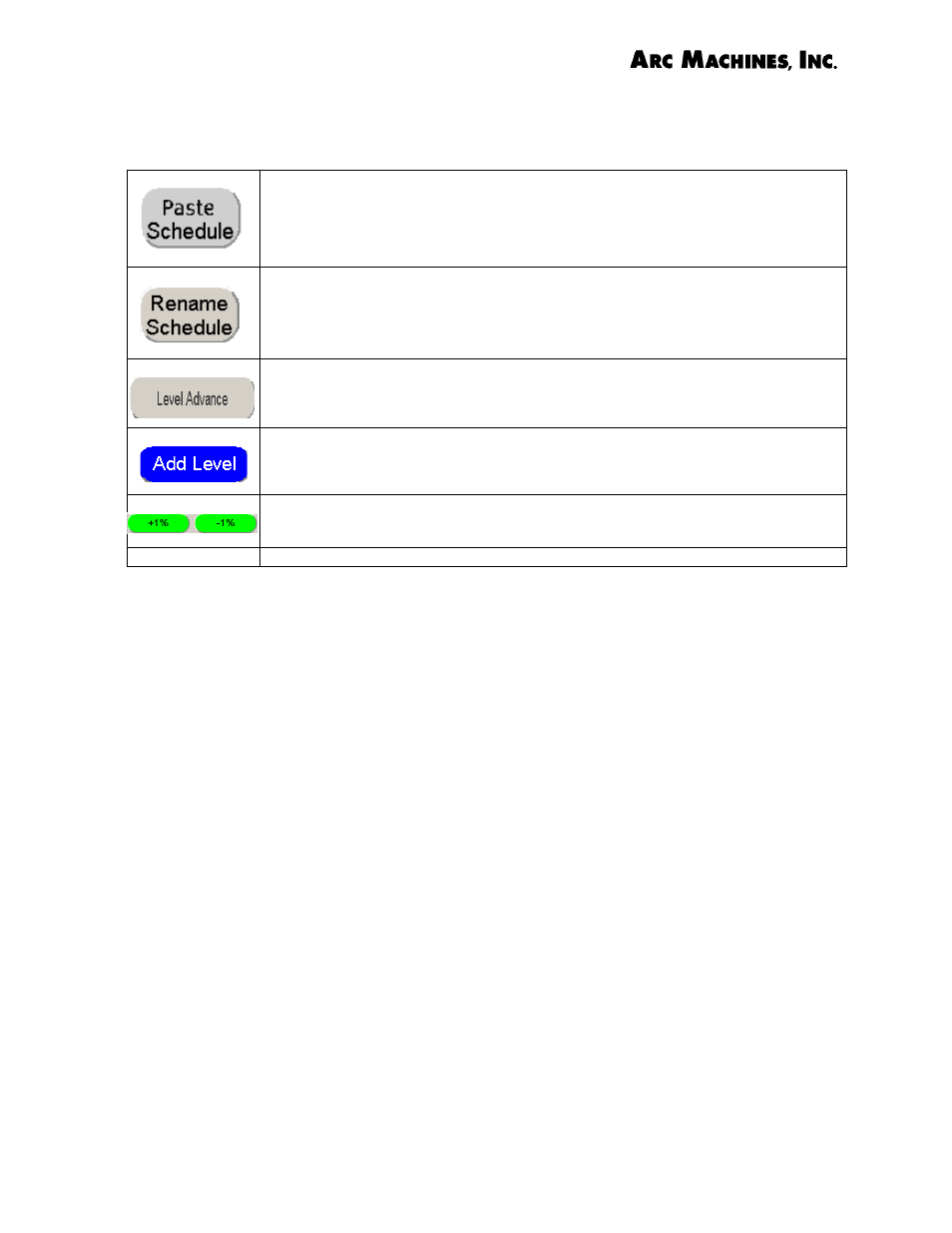

Table 2. Buttons used on the Model 307 Power Supply
Paste Schedule inserts a copied schedule into another folder of the
same power supply or into a folder in a Library in remote power supply.
Rename Schedule allows the user to change the name of a selected
schedule by typing in the new name from the keyboard.
Level Advance. Touching the Level Advance button on the touch screen
or on the remote pendant during the weld sequence advances the
program to the next level.
Add Level. When the Levels screen of a weld schedule is visible addi-
tional Levels may be added to the schedule by touching this button.
Plus or Minus 1%. Both Primary and Background Amps of a weld
schedule are changed 1% up or down by touching one of these buttons.
