Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 8. Page 16.
Rev. A

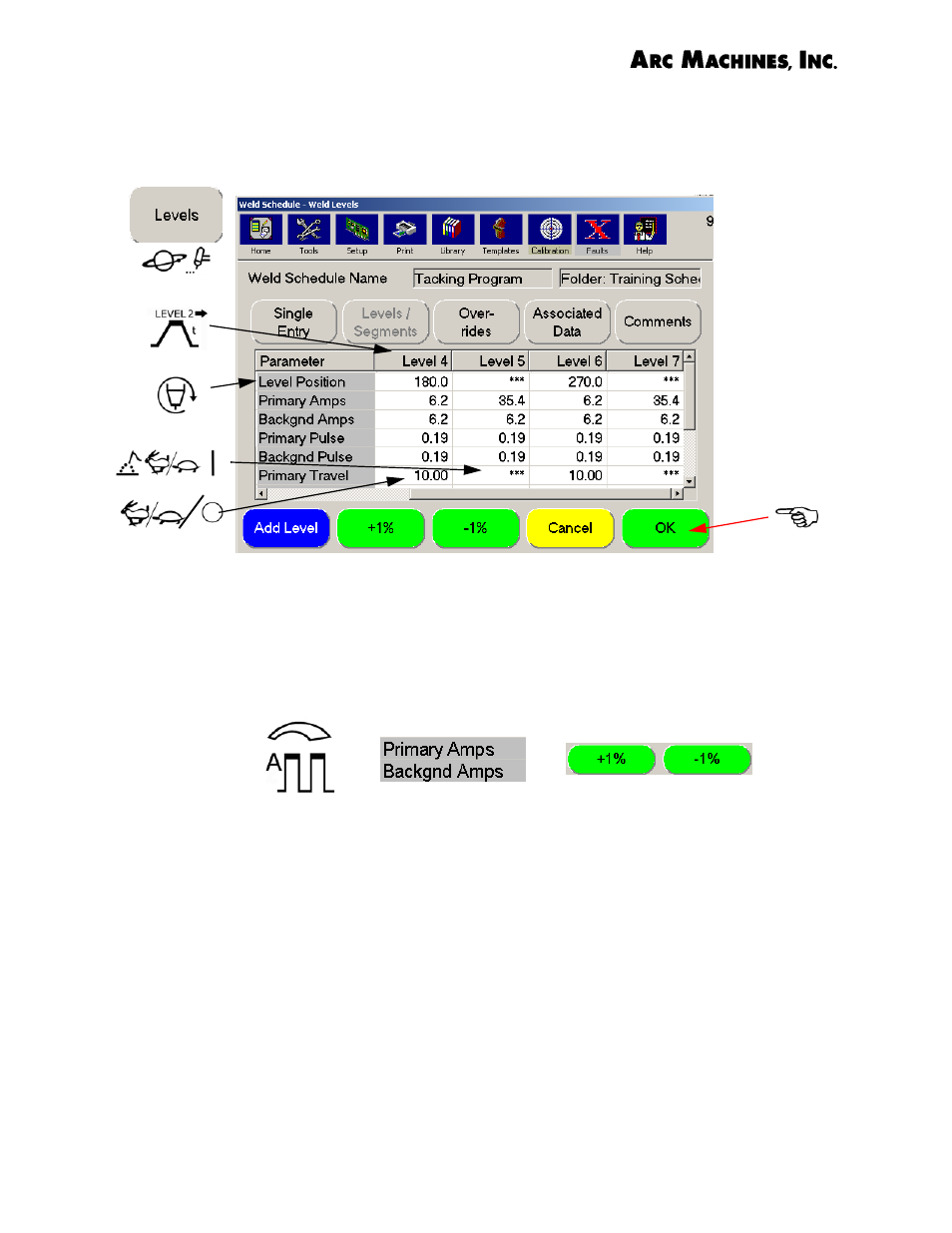

Levels 4 through 7 are shown on the screen below. Note Level Position at
each level. Travel speed is fast during the time that travel is CONT and
stopped when Travel Mode is Off. Pulse times are the same in each level.
To weld with this schedule press OK to return to the Weld Schedule Main
Screen and then Press Weld to get to the Weld Schedule - Weld screen.
Amps can be adjusted by touching the plus or minus amps buttons to get
the desired tack penetration.
