Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 18. Page 2.
Rev. A

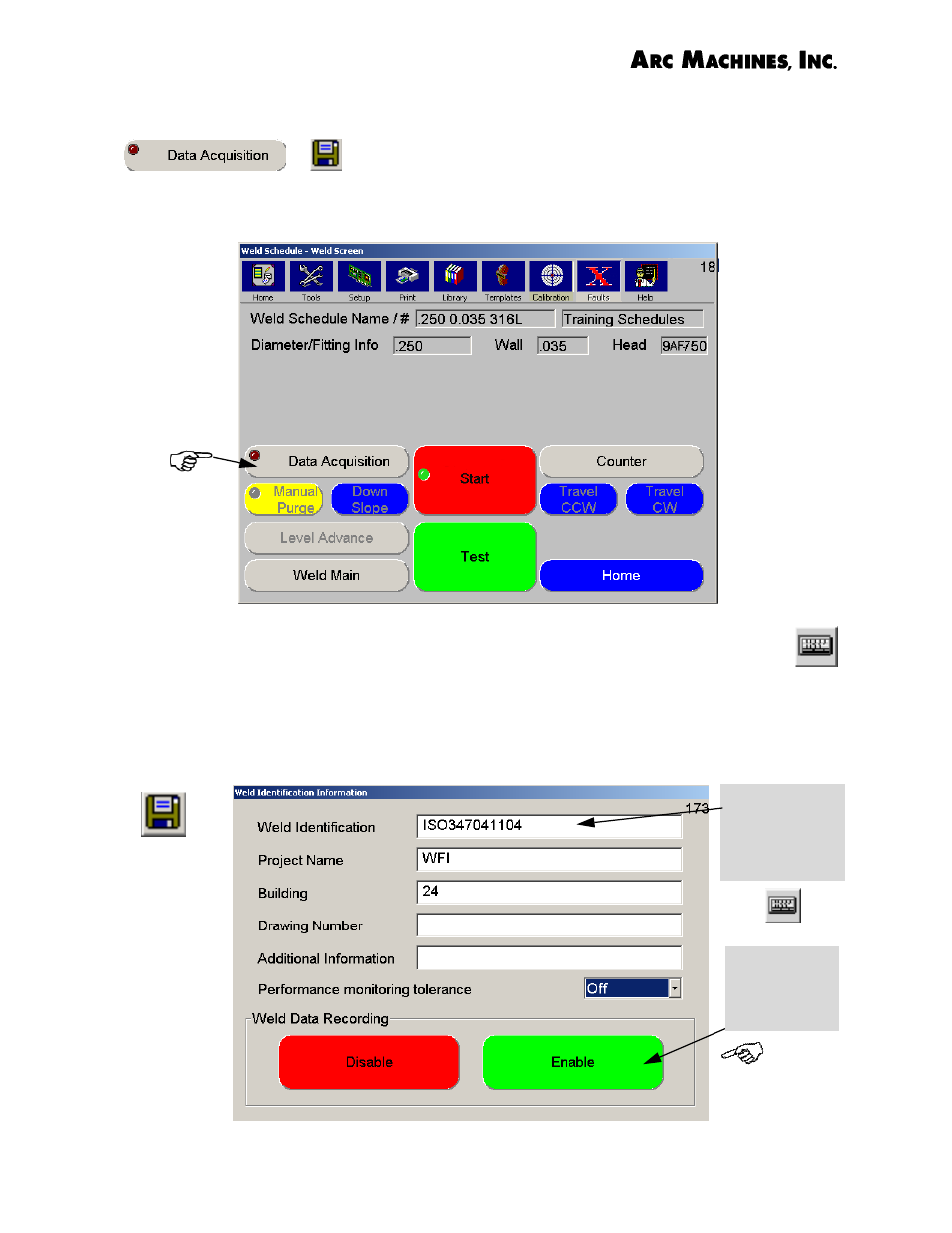

Entering a Weld Identification Number
To enter a Weld Identification number, select Data Acquisition from the Weld
Schedule - Weld Screen to display the Weld Identification Information
Screen.
Information that can be entered on the Weld Identification Information
screen from the keyboard includes Weld Identification (ID number),
Project Name, Building, Drawing Number (or ISO number) and a
space for entering Additional Information.
Use the pull-down menu to specify the performance monitoring tolerances.
Touch Enable to activate Weld Data Recording or Disable to end WDR.
Type in Weld
Identification
number from
the keyboard
Touch Enable
to activate
Weld Data
Recording
