Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 6. Page 19
Rev. A

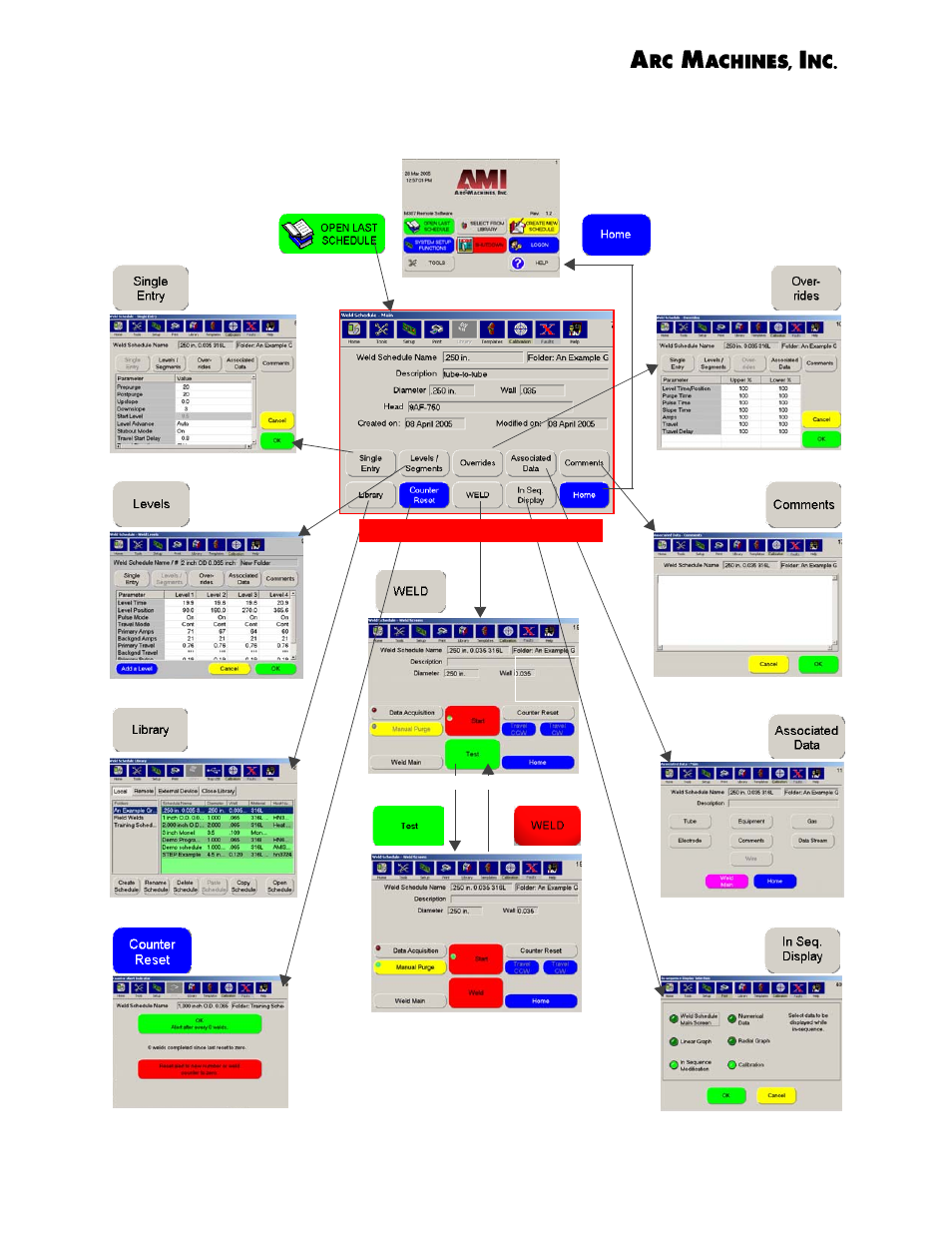

Screens Accessible from Weld Schedule - Main Screen:
Opening Screen
TEST/WELD changes
operating Mode.
Touching SEQUENCE START
from this screen initiates
the Weld.
Weld Schedule - Single entry
Weld Schedule - Levels
Weld Schedule -Overrides
Associated Data - Comments
Associated Data - Main Weld Schedule - Library
Counter/Alert Indicator In-Sequence Display Selelction
Weld Schedule Main Screen
Weld Schedule - Weld Screen
Weld Schedule - Weld Screen
