Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 8. Page 5.
Rev. A

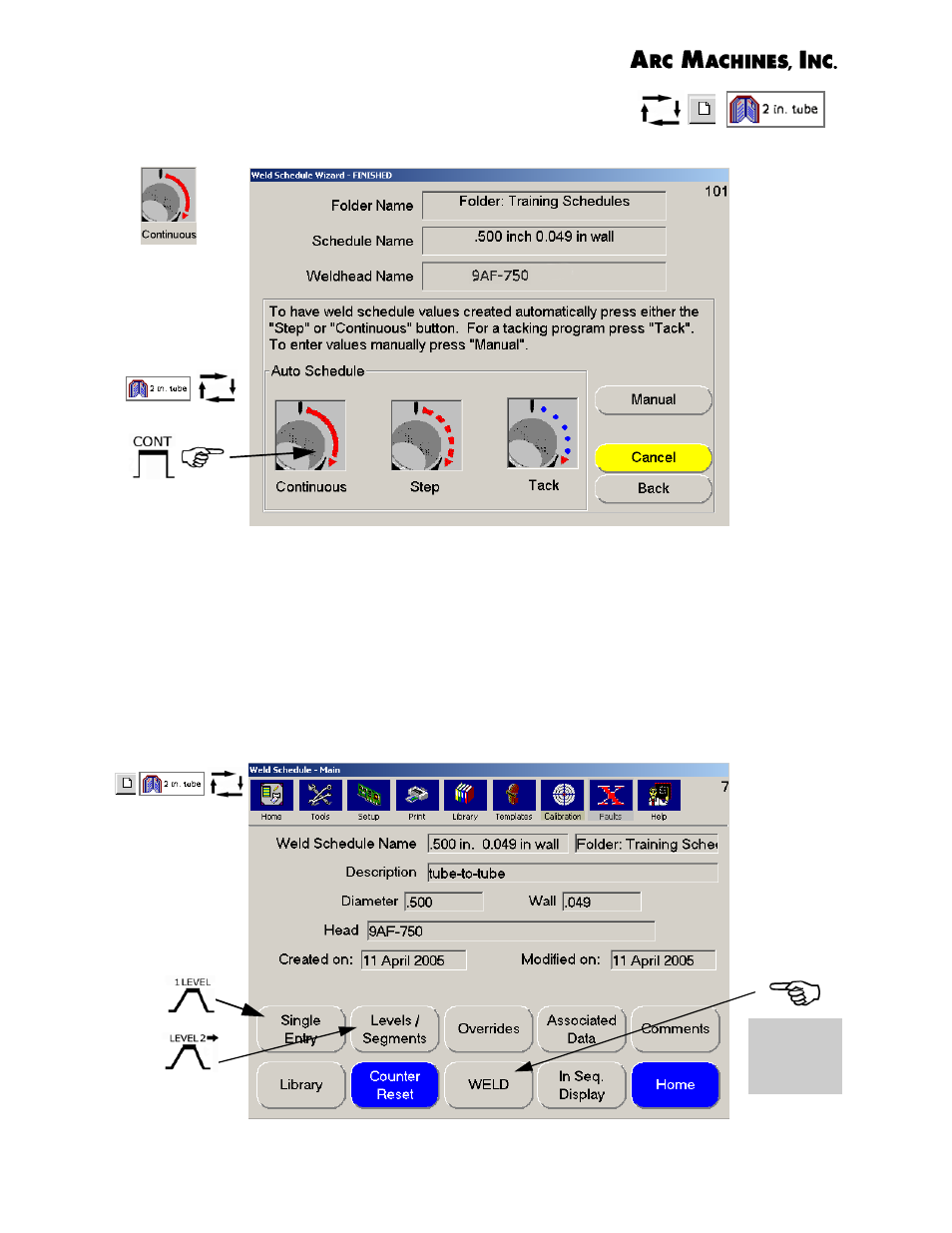

Automatic Weld Schedule Generation:
Select Continuous, Step or Tack to generate a schedule.
Autogeneration of a Continuous Weld Program
This section illustrates a new Continuous weld schedule that has been gener-
ated automatically. Programs for Step and Tack are shown on pages 8 and
13. For directions on how to enter weld parameters manually, see Chapter 9.
The first Weld Schedule screen is the Weld Schedule - Main screen shown
below. To weld with this schedule press WELD. Other screens accessible from
this screen are shown in Chapter 6 on page 19.
Touch to
display
WELD
screen
