Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 8. Page 15.
Rev. A
Weld Schedule Weld Levels

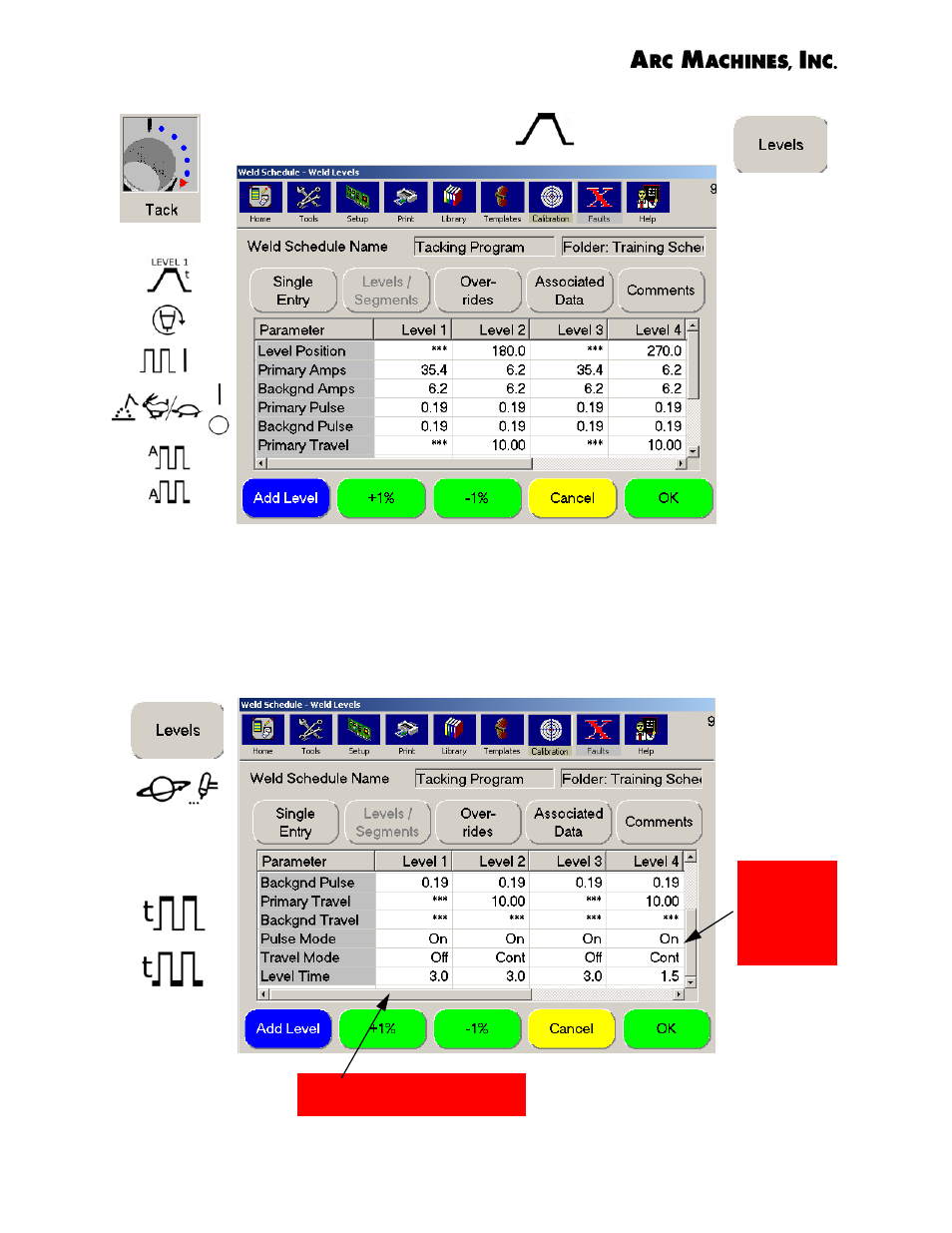

This weld schedule has 8 levels. Travel Mode changes from Off to Cont in
each successive level with Level Times corresponding to travel mode.
The Primary Amps changes from 35 pulsing to 6 Amps to achieve penetration
in levels with Travel Mode Off and is reduced to a constant 6 amps in levels
where Travel Mode is Cont. This produces a series of tack welds around the
tube circumference. Scroll down the Levels screen to view the pulse times
and level times.
Scroll
down to
view pulse
times and
level times
Scroll across to view other
Levels
